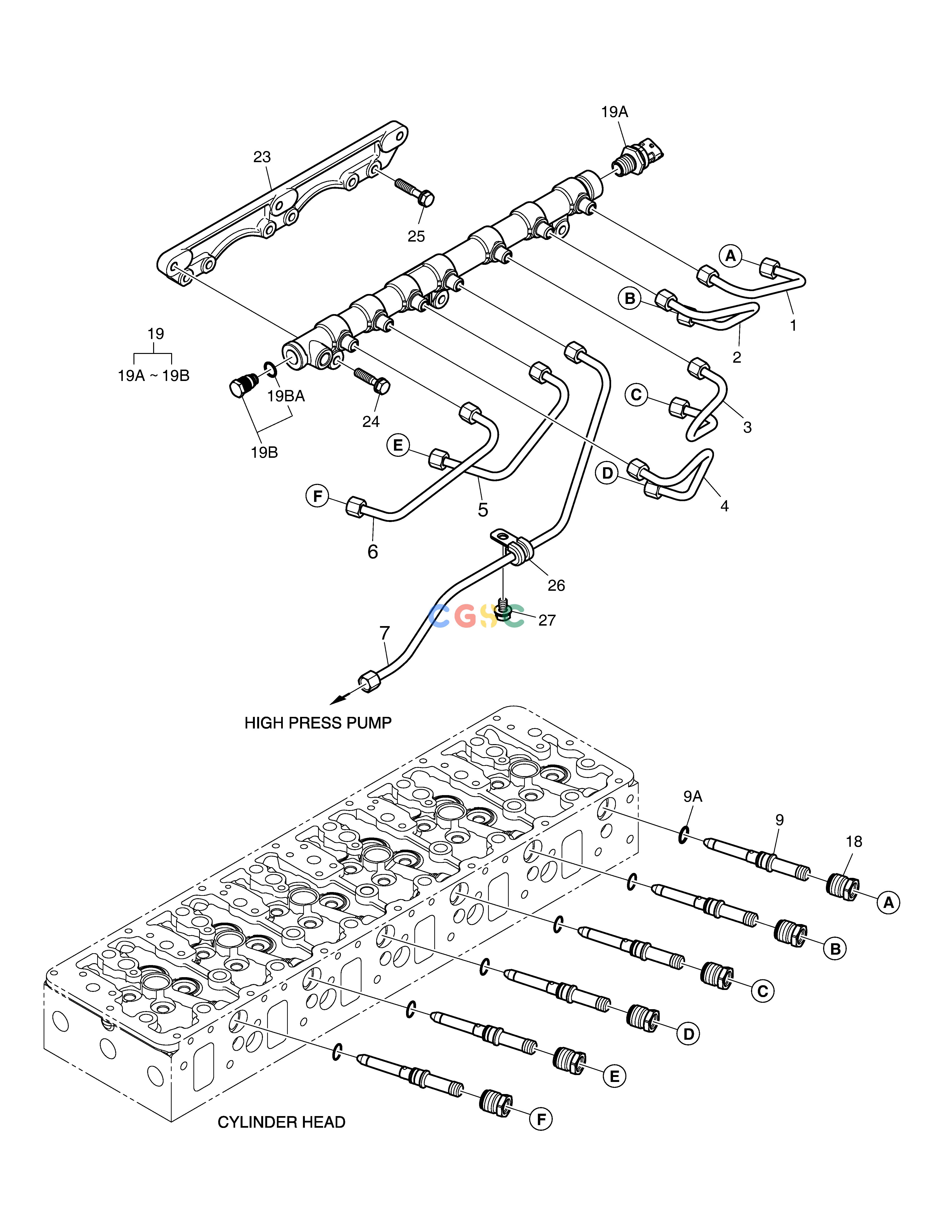

斗山零件查询INJECTION PIPE DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
388 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
420208-00003
|
[1] |
|
|
| 18. |
65.10415-0001
|
[6] |
NUT
|
|
| 19. |
150120-00014
|
[1] |
|
|
| 19A. |
301309-00009
|
[1] |
|
|
| 19B. |
410126-00116
|
[1] |
|
|
| 19BA. |
65.96501-0431
|
[1] |
... O-RING
|
|
| 2. |
420208-00004
|
[1] |
|
|
| 23. |
110442-00001
|
[1] |
|
|
| 24. |
06.01913-3117
|
[3] |
BOLT ASS`Y M8X30
|
|
| 25. |
06.01913-3118
|
[6] |
. BOLT ASS`Y M8X35
|
|
| 26. |
65.97401-0183
|
[1] |
CLIP;PIPE
|
|
| 27. |
06.01923-3110
|
[1] |
BOLT ASS'Y M8X12
|
|
| 3. |
420208-00005
|
[1] |
|
|
| 4. |
420208-00006
|
[1] |
|
|
| 5. |
420208-00007
|
[1] |
|
|
| 6. |
420208-00008
|
[1] |
|
|
| 7. |
420208-00009
|
[1] |
|
|
| 9. |
430230-00012
|
[6] |
|
|
| 9A. |
65.96501-0438
|
[1] |
. O-RING
|
|
