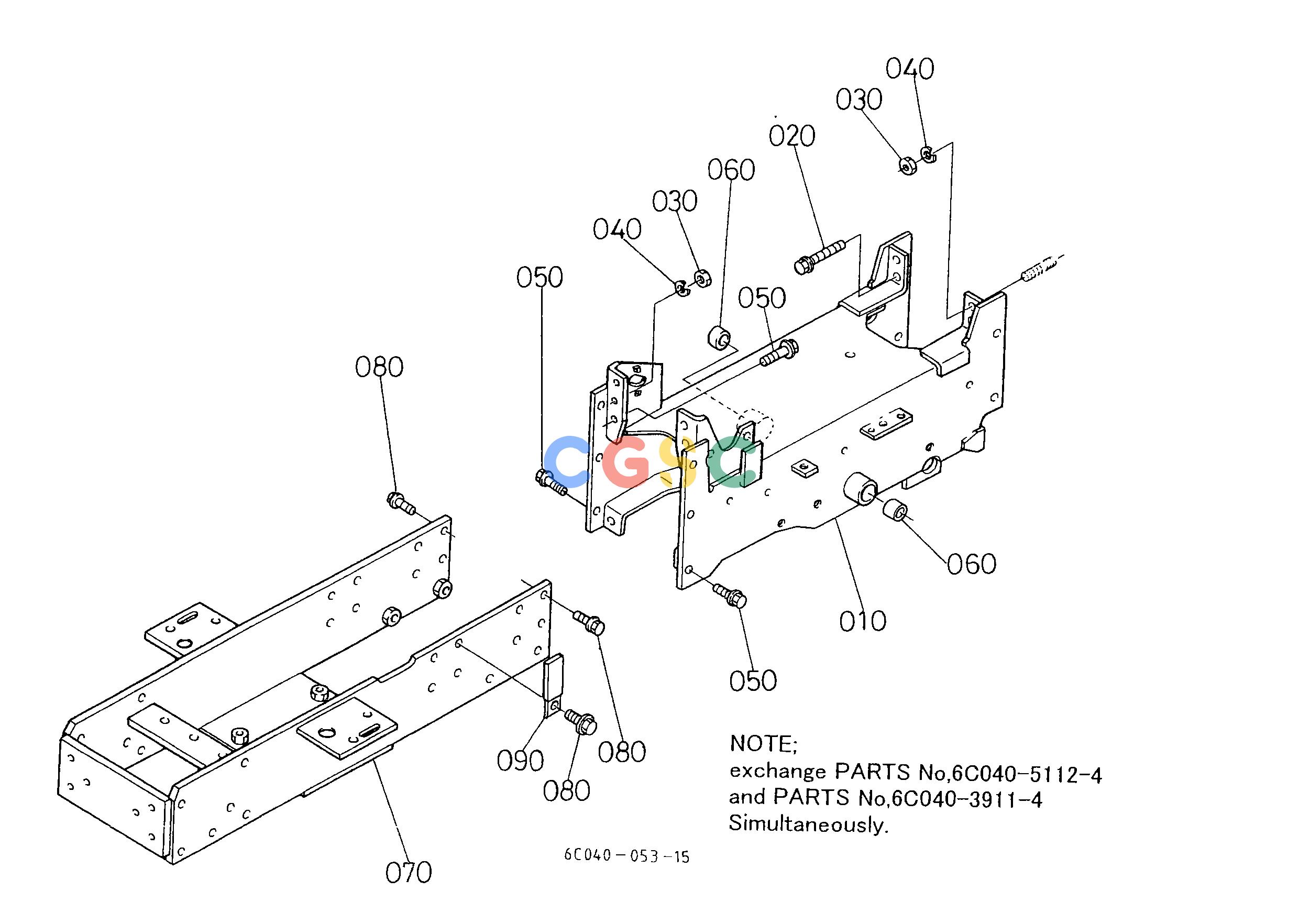

久保田零件查询C41500 FRAME FRONT AXLEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
754 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04051111
|
[1] |
COMP.FRAME
|
0.0000(lbs); 0.000
|
| 010. |
6C04051117
|
[1] |
COMP.FRAME
|
0.0000(lbs); 0.000
|
| 010. |
6C04051118
|
[1] |
COMP.FRAME
|
33.0000(lbs); 15.000
|
| 010. |
6C04051124
|
[1] |
COMP.FRAME,CENTER
|
34.5400(lbs); 15.700
|
| 020. |
0112351265
|
[2] |
BOLT,SEMS
|
0.1386(lbs); 0.063
|
| 030. |
0217450120
|
[8] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 040. |
0451250120
|
[8] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 050. |
0112351230
|
[12] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 060. |
0851102515
|
[2] |
BUSH
|
0.0264(lbs); 0.012
|
| 070. |
6C04051210
|
[1] |
COMP.FRAME,FRONT
|
39.6000(lbs); 18.000
|
| 070. |
6C04051218
|
[1] |
COMP.FRAME,FRONT
|
40.0400(lbs); 18.200
|
| 080. |
0113351025
|
[16] |
BOLT,SEMS
|
0.0506(lbs); 0.023
|
| 090. |
3534029380
|
[1] |
CLAMP,CORD
|
0.0220(lbs); 0.010
|
