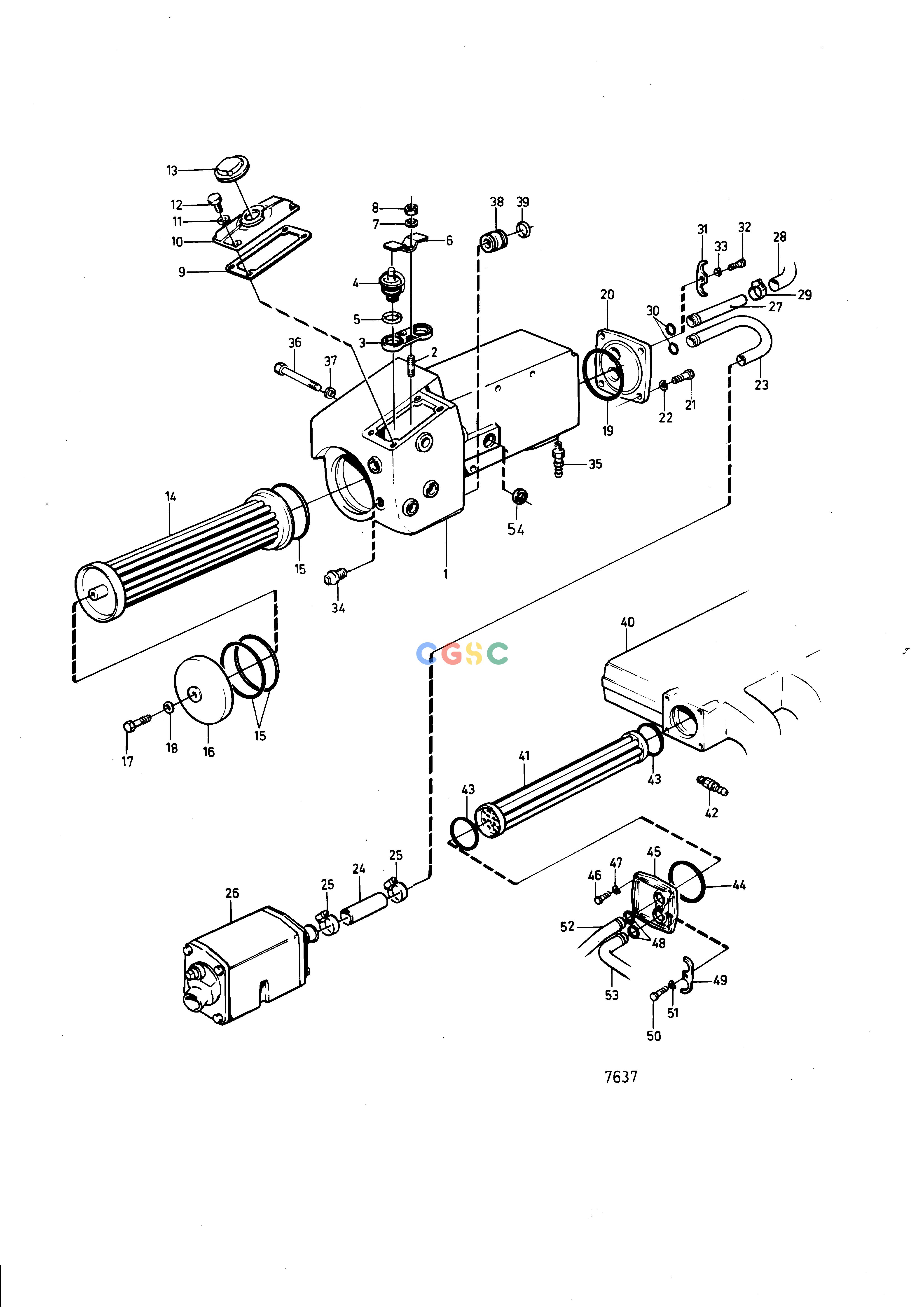

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Cooling SystemHeat Exchanger, After Cooler and Thermostat with Installation Compon: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
770 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846773
|
[1] |
Housing
|
Repl by 838532
|
| 1. |
838532
|
[1] |
Housing
|
Pour indicateur de temperature 840345, MO4690-
|
| 2. |
924060
|
[2] |
Stud
|
|
| 3. |
845285
|
[1] |
Retainer
|
|
| 4. |
875787
|
[2] |
Thermostat kit
|
(1544297)
|
| 5. |
416033
|
[2] |
Sealing ring
|
|
| 6. |
845852
|
[1] |
Shield
|
|
| 7. |
941670
|
[2] |
Washer
|
|
| 8. |
946330
|
[2] |
Hexagon nut
|
|
| 9. |
845291
|
[2] |
Gasket
|
Late type
|
| 10. |
845284
|
[1] |
Cap
|
|
| 11. |
941907
|
[4] |
Spring washer
|
|
| 12. |
955295
|
[4] |
Hexagon screw
|
|
| 13. |
845879
|
[1] |
Pressure cap
|
|
| 14. |
846056
|
[1] |
Insert
|
Repl by 838909
|
| 14. |
838909
|
[1] |
Insert
|
MO4730-
|
| 14. |
|
|
|
Repl by 858639
|
| 14. |
858639
|
[1] |
Insert
|
|
| 15. |
925258
|
[3] |
O-ring
|
|
| 16. |
845679
|
[1] |
Cap
|
|
| 17. |
963567
|
[1] |
Hexagon screw
|
|
| 18. |
11992
|
[1] |
Gasket
|
|
| 19. |
925259
|
[1] |
O-ring
|
|
| 20. |
846090
|
[1] |
Cap
|
|
| 21. |
955296
|
[4] |
Hexagon screw
|
|
| 22. |
941907
|
[4] |
Spring washer
|
|
| 23. |
846046
|
[1] |
Coolant pipe
|
|
| 24. |
944386
|
[1] |
Rubber hose
|
L=90mm
|
| 25. |
994560
|
[2] |
Hose clamp
|
|
| 26. |
846098
|
[1] |
Oil cooler
|
Repl by 838967
|
| 26. |
838967
|
[1] |
Oil cooler
|
MO5312-
|
| 27. |
846052
|
[1] |
Coolant pipe
|
Excl AQAD30A/290DP
|
| 27. |
838544
|
[1] |
Hose connection
|
AQAD30A/290DP
|
| 28. |
835199
|
[1] |
Hose
|
Excl AQAD30A/290DP
|
| 28. |
838545
|
[1] |
Hose
|
AQAD30A/290DP
|
| 29. |
994560
|
[2] |
Hose clamp
|
|
| 30. |
858986
|
[2] |
Sealing ring
|
(842744)
|
| 31. |
829691
|
[1] |
Retainer
|
|
| 32. |
955270
|
[1] |
Hexagon screw
|
|
| 33. |
941906
|
[1] |
Spring washer
|
|
| 34. |
952358
|
[3] |
Plug
|
|
| 34. |
952077
|
[3] |
Plug
|
For 838532
|
| 35. |
949918
|
[1] |
Shut-off cock
|
|
| 36. |
955335
|
[2] |
Hexagon screw
|
L=150mm
|
| 36. |
955332
|
[1] |
Hexagon screw
|
L=120mm
|
| 37. |
941908
|
[3] |
Spring washer
|
|
| 38. |
842965
|
[1] |
Pipe
|
|
| 39. |
925067
|
[2] |
O-ring
|
|
| 40. |
846032
|
[1] |
Inlet manifold
|
|
| 41. |
845978
|
[1] |
Insert
|
Repl by 838911
|
| 41. |
838911
|
[1] |
Insert
|
|
| 42. |
949918
|
[1] |
Shut-off cock
|
|
| 43. |
925258
|
[2] |
O-ring
|
|
| 44. |
925259
|
[1] |
O-ring
|
|
| 45. |
846090
|
[1] |
Cap
|
|
| 46. |
955295
|
[4] |
Hexagon screw
|
|
| 47. |
941907
|
[4] |
Spring washer
|
|
| 48. |
858986
|
[2] |
Sealing ring
|
(842744)
|
| 49. |
829691
|
[1] |
Retainer
|
|
| 50. |
955270
|
[1] |
Hexagon screw
|
|
| 51. |
941906
|
[1] |
Spring washer
|
|
| 52. |
846054
|
[1] |
Coolant pipe
|
Repl by 838975
|
| 52. |
838975
|
[1] |
Coolant pipe
|
(846054)
|
| 53. |
846772
|
[1] |
Tube
|
|
| 54. |
925068
|
[1] |
O-ring
|
|
