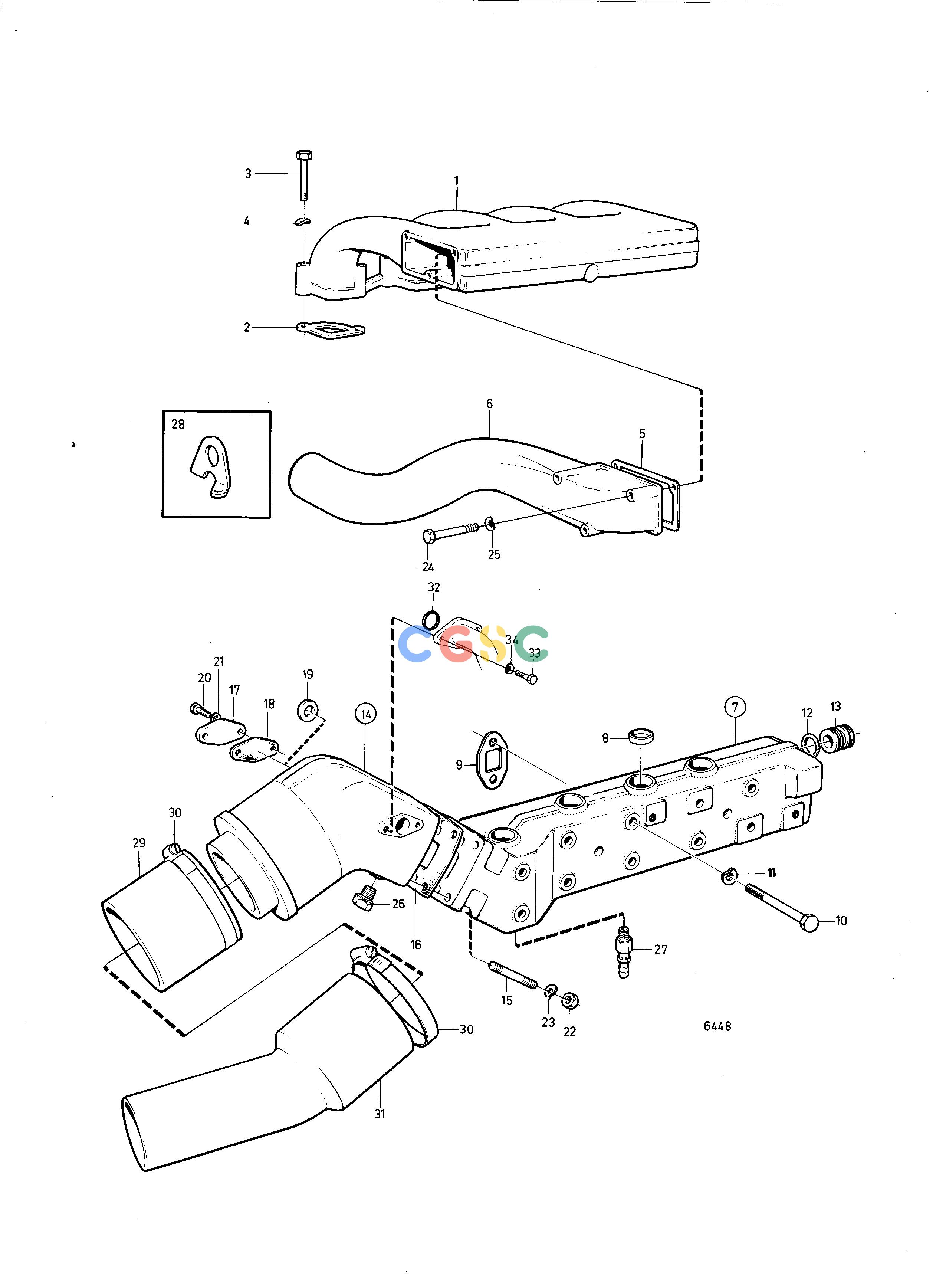

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Cooling SystemInduction- and Exhaust Manifold with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
596 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846081
|
[1] |
Inlet manifold
|
|
| 2. |
1542289
|
[4] |
Gasket
|
|
| 3. |
955302
|
[8] |
Hexagon screw
|
|
| 4. |
941907
|
[6] |
Spring washer
|
|
| 5. |
846074
|
[1] |
Gasket
|
|
| 6. |
846029
|
[1] |
Connecting pipe
|
0400-0280
|
| 7. |
846087
|
[1] |
Exhaust pipe
|
|
| 8. |
946780
|
[8] |
Cap plug
|
|
| 9. |
1542123
|
[4] |
Gasket
|
|
| 10. |
955336
|
[2] |
Hexagon screw
|
L=160mm
|
| 10. |
955330
|
[6] |
Hexagon screw
|
L=100mm
|
| 11. |
941908
|
[8] |
Spring washer
|
|
| 12. |
925068
|
[1] |
O-ring
|
|
| 13. |
842965
|
[1] |
Pipe
|
0050-0640
|
| 14. |
844091
|
[1] |
Exhaust manifold
|
|
| 15. |
924079
|
[4] |
Stud
|
|
| 16. |
843009
|
[1] |
Gasket
|
|
| 17. |
844093
|
[1] |
Flange
|
|
| 18. |
843042
|
[1] |
Gasket
|
|
| 19. |
|
|
|
See group 4A
|
| 20. |
955271
|
[2] |
Hexagon screw
|
|
| 21. |
941906
|
[2] |
Spring washer
|
|
| 22. |
940183
|
[4] |
Hexagon nut
|
|
| 23. |
955895
|
[4] |
Washer
|
|
| 24. |
940129
|
[1] |
Hexagon screw
|
L=90mm
|
| 24. |
100222
|
[1] |
Hexagon screw
|
L=85mm
|
| 24. |
955299
|
[1] |
Hexagon screw
|
L=45mm
|
| 25. |
941907
|
[3] |
Spring washer
|
|
| 26. |
192134
|
[1] |
Plug
|
|
| 27. |
949918
|
[1] |
Shut-off cock
|
|
| 28. |
|
|
|
|
| 29. |
846778
|
[1] |
Exhaust hose
|
|
| 30. |
853012
|
[2] |
Hose clamp
|
(961676)
|
| 31. |
838313
|
[1] |
Exhaust pipe
|
|
| 32. |
842913
|
[1] |
Sealing ring
|
0050-0765
|
| 33. |
955271
|
[2] |
Hexagon screw
|
0050-0767
|
| 34. |
941906
|
[2] |
Spring washer
|
0050-0768
|
