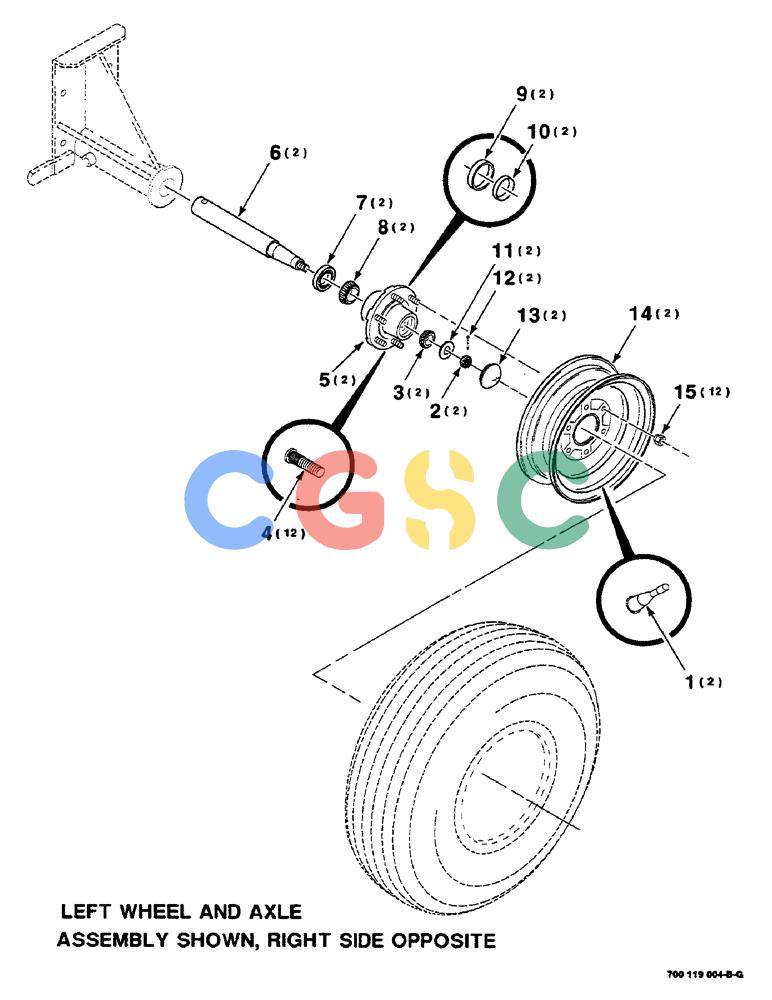

凯斯零件查询(8455) - CASE IH ROUND BALER (STANDARD) (1/92-12/99) (7-06) - WHEEL, HUB AND AXLE ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
725 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
A38261
|
[2] |
VALVE
|
CAS
STEM - valve Superseded by part number: 196033
|
| 2. |
425-1312
|
[2] |
SLOTTED NUT,3/4"-16, G5
|
CAS
3/4-16 SLOTTED HEX NUT Superseded by part number: 88886
|
| 3. |
651818R91
|
[2] |
ROLLER BEARING,31.77 mm ID x 16.08 mm
|
IH
BEARING - cone, outer Superseded by part number: 84356153
|
| 4. |
826370
|
[12] |
BOLT,Ribbed Nk, 9/16" - 18 x 2.12"
|
CAS
9/16-18 RIBBED NECK BOLT Superseded by part number: T57455
|
| 5. |
700709830
|
[2] |
HUB
|
IH
ASSEMBLY (Includes items 9, 10 & 4)
|
| 6. |
700114346
|
[2] |
SPINDLE
|
IH
|
| 7. |
844050
|
[2] |
SEAL
|
L
|
| 8. |
663557R91
|
[2] |
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
|
IH
BEARING - cone, inner Superseded by part number: 86512015
|
| 9. |
663558R1
|
[2] |
BEARING CUP
|
IH
BEARING - cup, inner Superseded by part number: 86512015
|
| 10. |
711242
|
[2] |
BEARING CUP
|
CAS
BEARING - cup, outer Superseded by part number: 47923369
|
| 11. |
26971
|
[2] |
WASHER
|
CAS
|
| 12. |
432-1024
|
[2] |
COTTER PIN,5/32" x 1 1/2"
|
CAS
5/32" x 1 1/2" Superseded by part number: 72187233, 88350
|
| 13. |
518842R1
|
[2] |
CAP
|
IH
HUB - cap
|
| 14. |
A57879
|
[2] |
RIM
|
CAS
15" WHEEL - standard (Includes item 1)
|
| . . |
T39714
|
[2] |
WHEEL
|
IH
15" WHEEL - high flotation (Includes item 1)
|
| 15. |
G49041
|
[12] |
WHEEL NUT
|
CAS
9/16-18 WHEEL NUT
|
