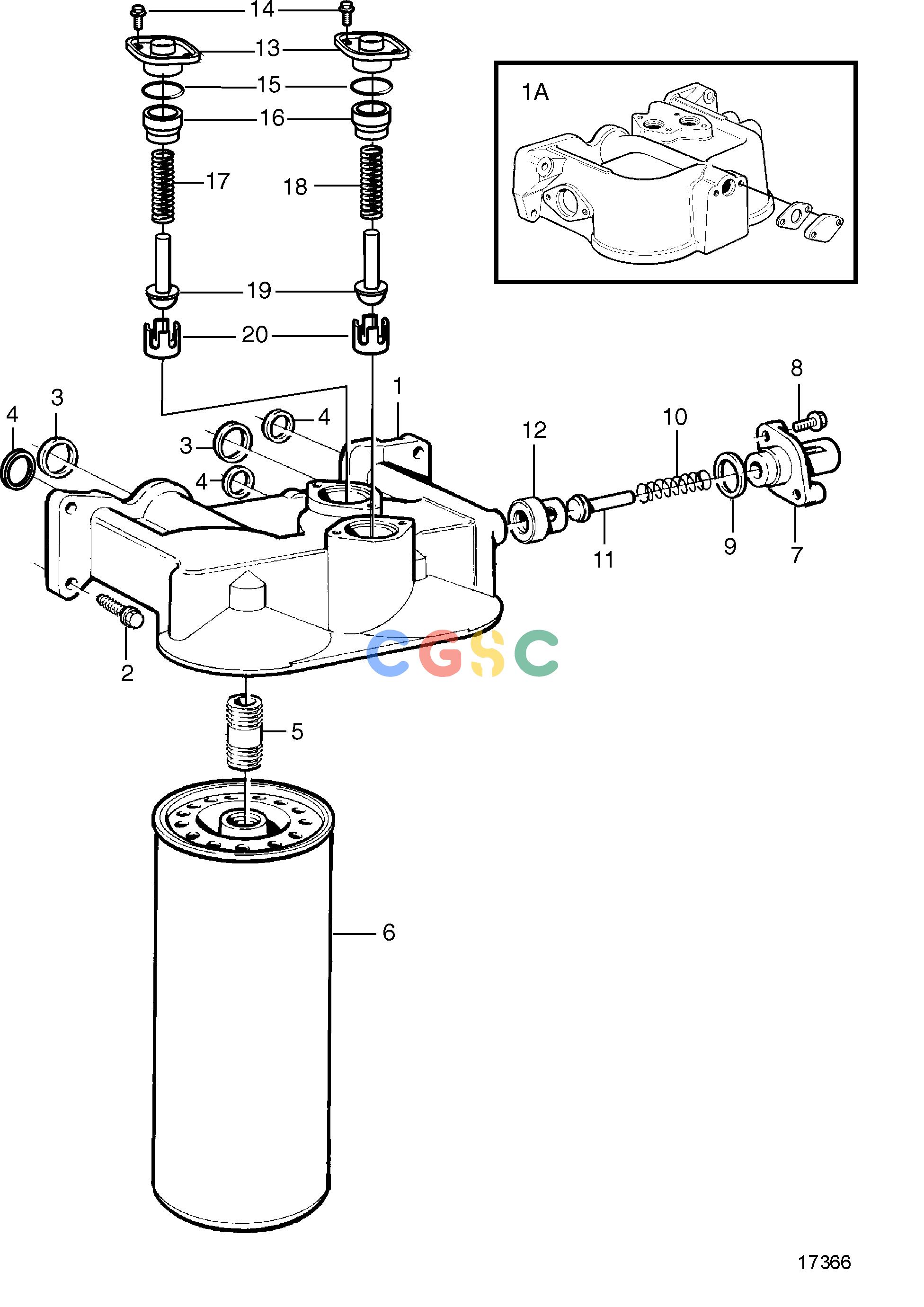

沃尔沃零件查询861 Smoke limiter 99006 Mo 46982-861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
643 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE1698748
|
[0001] |
Bushing
|
|
| 5. |
|
[0001] |
Piston
|
|
| 6. |
VOE244598
|
[0001] |
Plug
|
|
| 7. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| 8. |
VOE13941906
|
[0006] |
Washer
|
|
| |
VOE6212260
|
[0001] |
Smoke limiter
|
|
| 9. |
VOE956094
|
[0003] |
Cross recessed screw
|
|
| 10. |
VOE244674
|
[0001] |
Nut
|
|
| 11. |
VOE13955781
|
[0001] |
Nut
|
|
| 12. |
VOE956094
|
[0002] |
Cross recessed screw
|
|
| 13. |
VOE244676
|
[0001] |
Stop, Shoulder
|
|
| 14. |
VOE240422
|
[0001] |
Sealing ring
|
|
| 15. |
|
[0001] |
Nut
|
|
| 16. |
|
[0001] |
Stud
|
|
| 17. |
|
[0001] |
Cover
|
|
| 18. |
|
[0001] |
Bushing
|
|
| 1. |
VOE6212263
|
[0001] |
Spring
|
|
| 19. |
VOE244678
|
[0001] |
Cover
|
|
| 20. |
VOE956094
|
[0001] |
Cross recessed screw
|
|
| 2. |
VOE837741
|
[0001] |
Spring
|
|
| 3. |
VOE244574
|
[0001] |
O-ring
|
|
