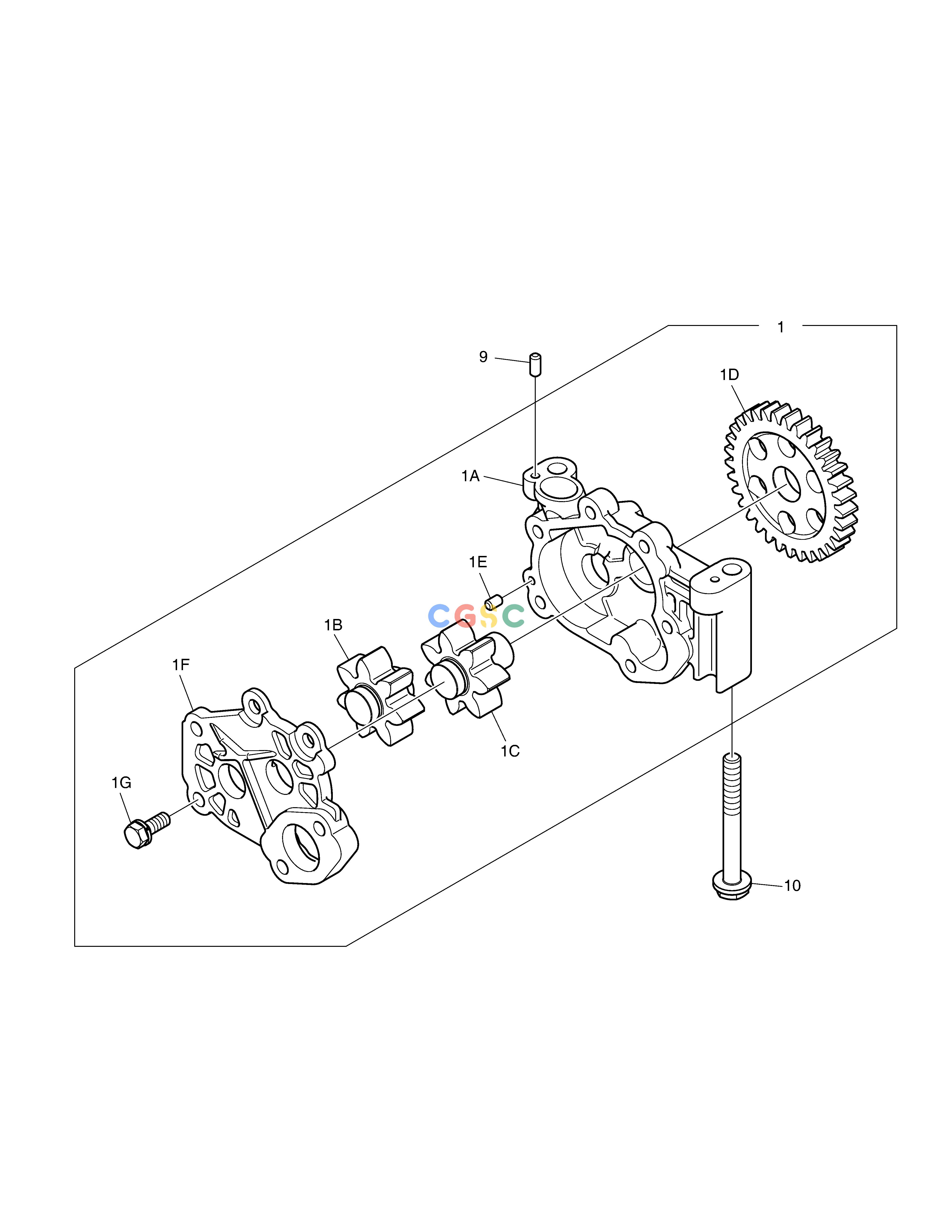

斗山零件查询OIL PUMP DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
930 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05100-6063A
|
[1] |
OIL PUMP ASS`Y
|
|
| 10. |
65.90020-0085
|
[2] |
BOLT;COLLARED HEX
|
|
| 1A. |
65.05102-0030
|
[1] |
. HOUSING;OIL PUMP
|
|
| 1B. |
65.05104-0023
|
[1] |
. GEAR;OIL PUMP
|
|
| 1C. |
65.05104-0022
|
[1] |
. GEAR;OIL PUMP
|
|
| 1D. |
65.05201-0016
|
[1] |
. GEAR;DRIVE;OIL PUMP
|
|
| 1E. |
06.22022-0907
|
[1] |
. PIN;DOWEL
|
|
| 1F. |
65.05103-0034
|
[1] |
. COVER;OIL PUMP
|
|
| 1G. |
06.01913-3114
|
[4] |
BOLT ASS`Y M8X22
|
|
| 9. |
06.22022-0909
|
[2] |
PIN;DOWEL 6M6X14
|
|
