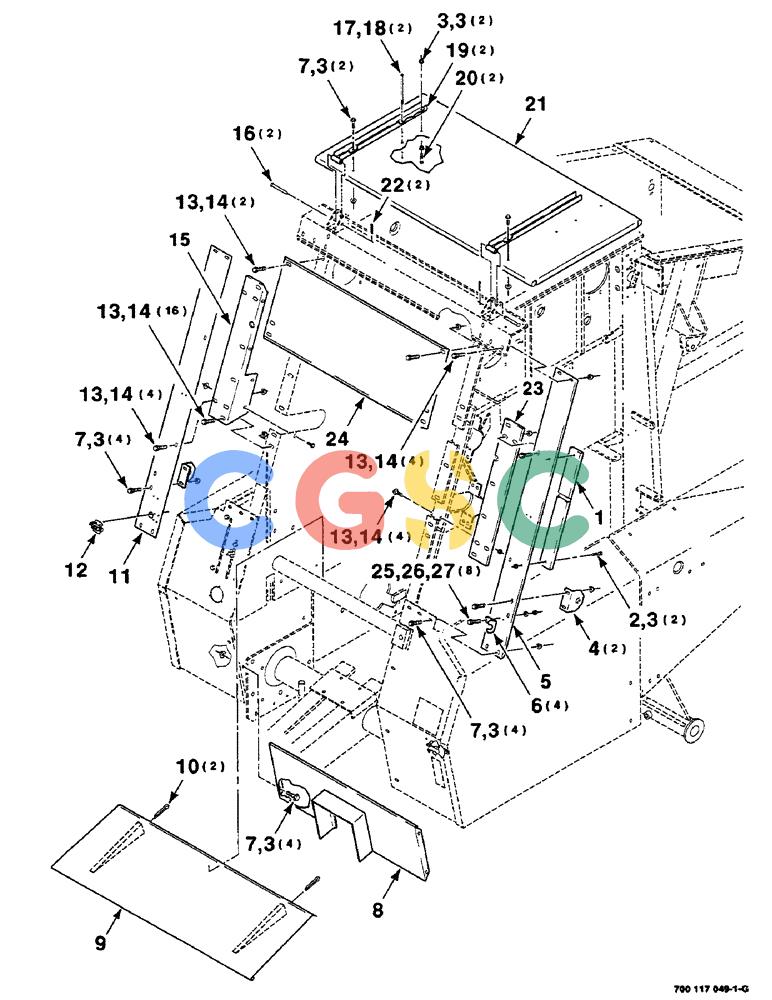

凯斯零件查询(8455) - CASE IH ROUND BALER (STANDARD) (1/92-12/99) (7-10) - SHIELDS ASSEMBLY (UPPER CENTER) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
425 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700709195
|
[1] |
BUMPER
|
CAS
- chain
|
| 2. |
433-512
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 3. |
231-5145
|
[20] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 4. |
700117068
|
[2] |
SUPPORT
|
HFI
|
| 5. |
700117050
|
[1] |
PANEL
|
HFI
- left
|
| 6. |
7025075
|
[4] |
BRACKET
|
CAS
|
| 7. |
121-115
|
[14] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 8. |
700116021
|
[1] |
SHIELD
|
CAS
WA
|
| 9. |
700116008
|
[1] |
SHIELD
|
HFI
WA
|
| 10. |
432-1248
|
[2] |
COTTER PIN,3/16" x 3"
|
CAS
3/16" x 3" Superseded by part number: 70925724
|
| 11. |
700117057
|
[1] |
PANEL
|
HFI
- right
|
| 12. |
700707437
|
[1] |
COUNTER
|
CAS
BALE COUNTER
|
| 13. |
409-7612
|
[30] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 14. |
231-5146
|
[30] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 15. |
700116216
|
[1] |
SHIELD
|
HFI
- right
|
| 16. |
Q657
|
[2] |
HEADED PIN,9.53mm OD x 69.85mm L
|
IH
3/8 x 2-3/4 CLEVIS PIN
|
| 17. |
413-496
|
[2] |
BOLT,Hex, 1/4" - 20 x 6", Gr 5
|
CAS
1/4-20 x 6 C
|
| 18. |
1703354
|
[2] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 19. |
700122786
|
[2] |
HINGE
|
CAS
WA
|
| 20. |
7773930
|
[2] |
BOLT
|
CAS
5/16-18 x 2 FTC Superseded by part number: 280649
|
| 21. |
700122810
|
[1] |
SHIELD
|
CAS
|
| 22. |
432-1016
|
[2] |
COTTER PIN,5/32" x 1"
|
CAS
5/32" x 1" Superseded by part number: 83903970
|
| 23. |
700116215
|
[1] |
SHIELD
|
HFI
- left
|
| 24. |
700117102
|
[1] |
SHIELD
|
HFI
|
| 25. |
340-1108
|
[8] |
SCREW,Cross Pan Hd, #10-24 x 1/2"
|
CAS
#10-24 x 1/2 CRPHMS GR2
|
| 26. |
492-11010
|
[8] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 27. |
225-14110
|
[8] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
