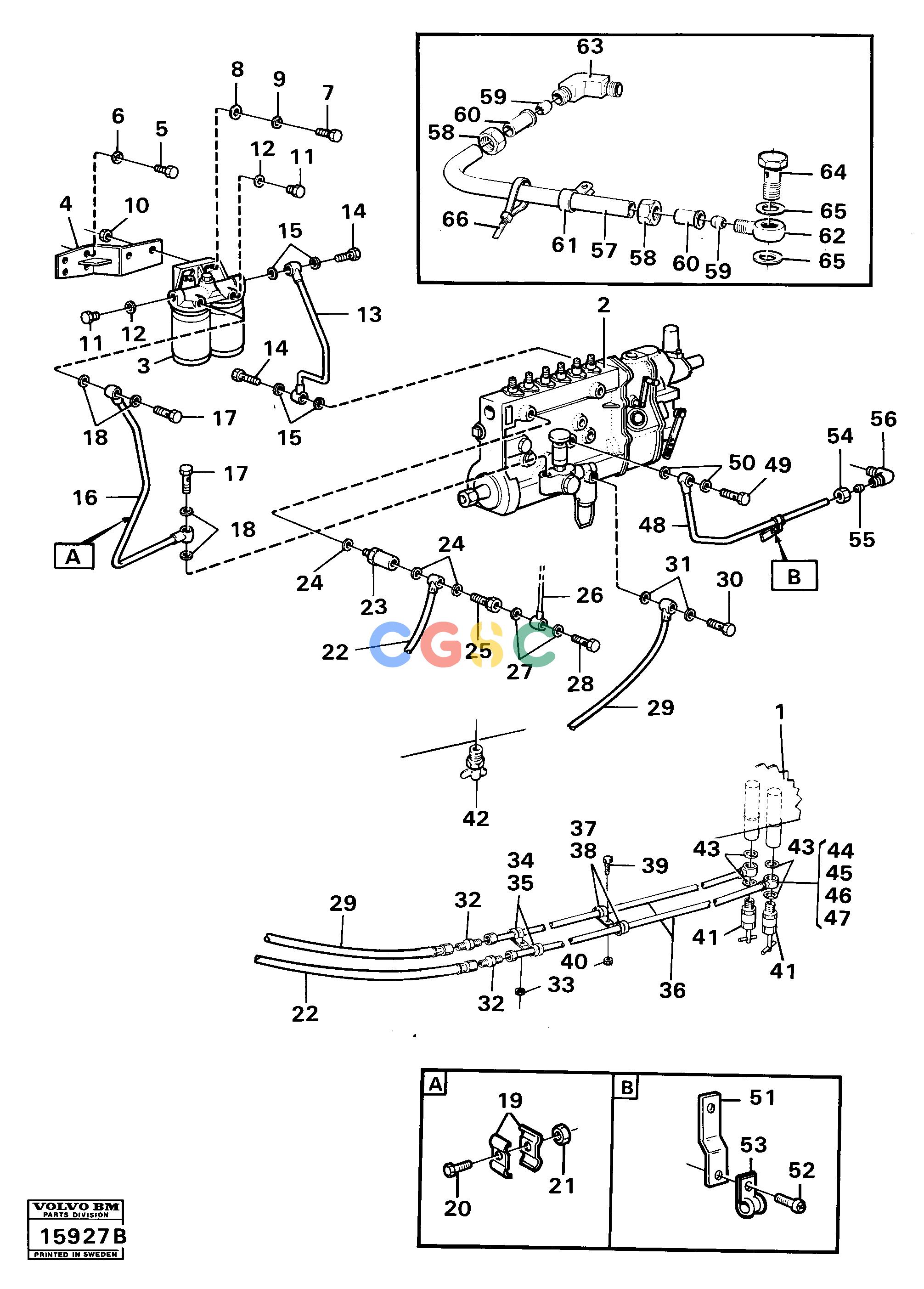

沃尔沃零件查询861 Fuel system861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
953 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13940114
|
[0004] |
Screw
|
|
| 50. |
VOE957173
|
[0002] |
Gasket
|
|
| 51. |
VOE465584
|
[0001] |
Bracket
|
|
| 52. |
VOE950045
|
[0002] |
Cross recessed screw
|
|
| 53. |
VOE940374
|
[0001] |
Clamp
|
|
| 54. |
VOE954356
|
[0001] |
Fitting nut
|
|
| 55. |
VOE954364
|
[0001] |
Ferrule
|
|
| 56. |
VOE329638
|
[0001] |
Elbow nipple
|
|
| 57. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=1000
|
| 58. |
VOE954356
|
[0002] |
Fitting nut
|
|
| 59. |
VOE954364
|
[0002] |
Ferrule
|
|
| 6. |
VOE13942336
|
[0004] |
Spring washer
|
|
| 60. |
VOE944717
|
[0002] |
Sleeve
|
|
| 61. |
VOE940374
|
[0001] |
Clamp
|
|
| 62. |
VOE13945417
|
[0001] |
Banjo nipple
|
|
| 63. |
VOE954385
|
[0001] |
Elbow nipple
|
|
| 64. |
VOE968178
|
[0001] |
Hollow screw
|
|
| 65. |
VOE13947282
|
[0002] |
Gasket
|
|
| 66. |
VOE4881440
|
[0001] |
Cable tie
|
|
| 7. |
VOE13940162
|
[0002] |
Screw
|
|
| 8. |
VOE976945
|
[0002] |
Washer
|
|
| 9. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 1. |
|
[0001] |
Fuel tank
|
|
| 10. |
VOE13955827
|
[0002] |
Nut
|
|
| 11. |
VOE960630
|
[0003] |
Plug
|
|
| 12. |
VOE13947621
|
[0003] |
Plane gasket
|
|
| 13. |
VOE4774068
|
[0001] |
Fuel pipe
|
|
| 14. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 15. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 16. |
VOE4774067
|
[0001] |
Fuel pipe
|
|
| 17. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 18. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 19. |
VOE404279
|
[0002] |
Clamp
|
|
| 2. |
|
[0001] |
Injcection pump
|
|
| 20. |
VOE955513
|
[0001] |
Hexagon screw
|
|
| 21. |
VOE955825
|
[0001] |
Hexagon nut
|
|
| 22. |
VOE4774658
|
[0001] |
Fuel hose
|
|
| 23. |
VOE479775
|
[1] |
Overflow valve
|
|
| 24. |
VOE13947621
|
[3] |
Plane gasket
|
|
| 25. |
VOE7016496
|
[1] |
Hollow screw
|
|
| 26. |
VOE465398
|
[1] |
Leak-off line
|
MO - 30537
|
| |
|
|
None
|
|
| |
VOE844865
|
[1] |
Leak-off line
|
MO 30538 -
|
| |
|
|
None
|
|
| 27. |
VOE957171
|
[2] |
Gasket
|
|
| 28. |
VOE7074033
|
[1] |
Hollow screw
|
|
| 29. |
VOE4774658
|
[1] |
Fuel hose
|
|
| 3. |
|
[0001] |
Fuel filter
|
|
| 30. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 31. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 32. |
VOE4822564
|
[2] |
Nipple
|
|
| 33. |
VOE13949278
|
[2] |
Flange lock nut
|
|
| 34. |
VOE952635
|
[0002] |
Clamp
|
D=25,4
|
| 35. |
VOE952628
|
[0002] |
Clamp
|
D=14,3
|
| 36. |
VOE945461
|
[REQ] |
Tube
|
L= 2950
|
| 37. |
VOE952625
|
[0001] |
Clamp
|
D=9,5
|
| 38. |
VOE952628
|
[0002] |
Clamp
|
D=14,3
|
| 39. |
VOE946934
|
[0002] |
Flange screw
|
|
| 4. |
VOE4774065
|
[0001] |
Bracket
|
|
| 40. |
VOE942278
|
[0002] |
None
|
|
| 41. |
VOE715190
|
[0002] |
Shut-off valve
|
|
| 42. |
VOE87502
|
[0001] |
Drain Cock
|
|
| 43. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 44. |
VOE13945416
|
[0002] |
Banjo nipple
|
|
| 45. |
VOE967559
|
[0004] |
Sleeve
|
|
| 46. |
VOE326599
|
[0004] |
Ferrule
|
|
| 47. |
VOE326596
|
[0004] |
Fitting nut
|
|
| 48. |
VOE465399
|
[0001] |
Feed line
|
|
| 49. |
VOE7048634
|
[0001] |
Hollow screw
|
|
