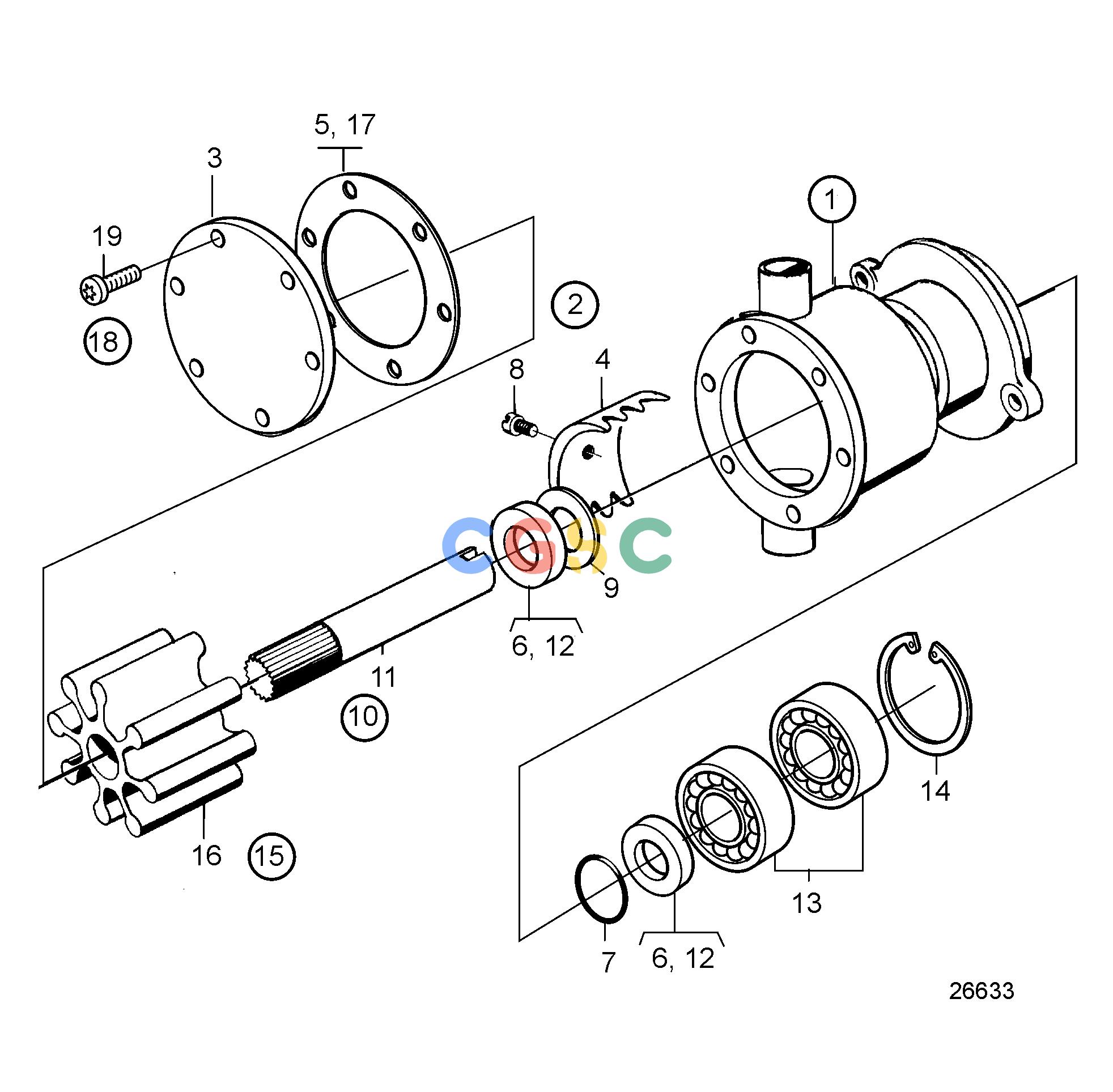

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Cooling SystemSea Water Pump: 838314EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
814 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838314
|
[1] |
Sea water pump
|
|
| 2. |
21951400
|
[1] |
Wear kit
|
|
| 3. |
815573
|
[1] |
Cap, cover
|
|
| 4. |
827011
|
[1] |
Cam
|
|
| 5. |
808275
|
[1] |
Gasket
|
|
| 6. |
827247
|
[1] |
Sealing ring
|
|
| 7. |
960166
|
[1] |
O-ring
|
|
| 8. |
808285
|
[1] |
Screw
|
|
| 9. |
844580
|
[1] |
Support washer
|
|
| 10. |
21951461
|
[1] |
Shaft kit
|
|
| 11. |
|
|
|
|
| 12. |
827247
|
[1] |
Sealing ring
|
|
| 13. |
11010
|
[2] |
Ball bearing
|
|
| 14. |
914523
|
[1] |
Snap ring
|
|
| 15. |
21951356
|
[1] |
Impeller kit
|
|
| 16. |
|
|
|
|
| 17. |
808275
|
[1] |
Gasket
|
|
| 18. |
21951334
|
[1] |
Screw kit
|
|
| 19. |
21346724
|
[6] |
Hexagon screw
|
Use screw kit 21951334
|
