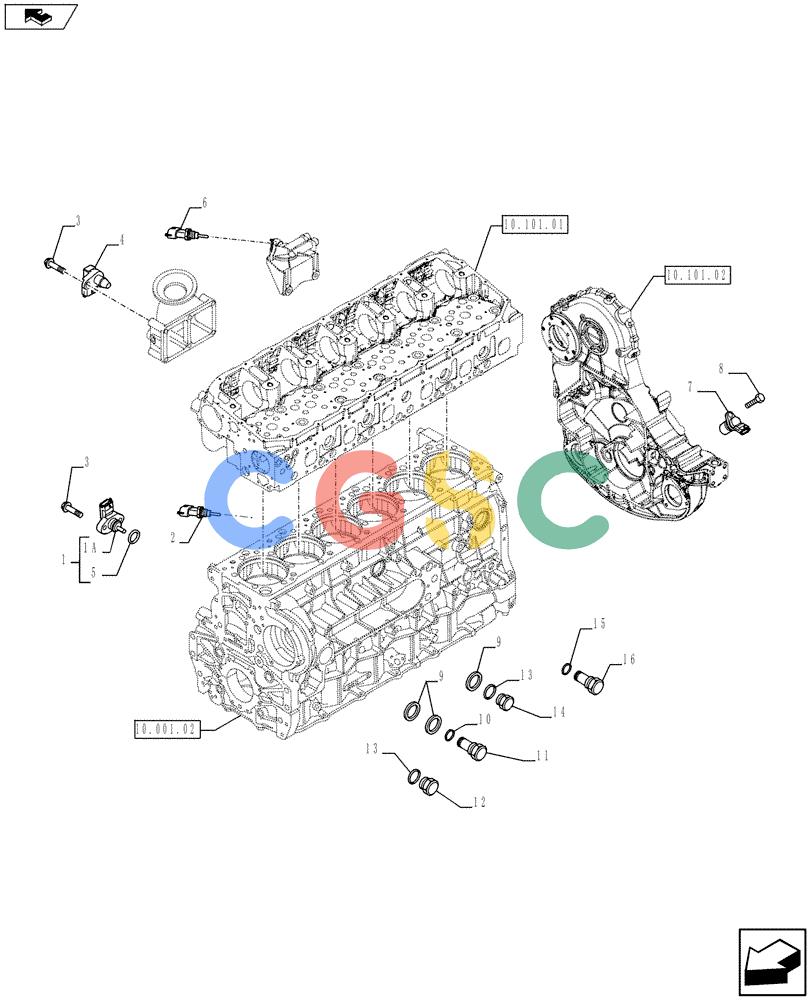

纽荷兰零件查询(F3DFA613B E004) - ENGINE 504384986 - 84550912 W/O BRAKE (55.414.01[02]) - MOTOR SENSORS (504386710 - 504386730 - 504386725) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
821 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504358206 | [1] | ASSY Contains Ref.1A, 5 | SWITCH,Pressure |
| 1A. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 2. | 504364902 | [1] | | SENSOR |
| 3. | 2853118 | [3] | BOLT,Hex, M6 x 1 x 18mm | TOR Superseded by part number: 16597225 |
| 4. | 504307953 | [1] | | SENSOR |
| 5. | 4895477 | [1] | O-RING,2.62mm Thk x 13.94mm ID | TOR |
| 6. | 82017881 | [2] | SENSOR | BAS Superseded by part number: 500382599 |
| 7. | 504096645 | [2] | TRANSMITTER | TOR |
| 8. | 16689024 | [2] | SCREW,M16 x 12mm | TORM6 x 12 |
| 9. | 5169544 | [4] | SEAL,14.7mm ID x 22mm OD x 1.5mm Thk | BAS |
| 10. | 70933922 | [1] | O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro | CMI |
| 11. | 504084571 | [1] | PLUG | ZED |
| 12. | 10300714 | [1] | PLUG,M16 x 1.5 x 14 | TTF |
| 13. | 99489019 | [1] | SEALING WASHER | TOR Superseded by part number: 5801560870 |
| 14. | 10300611 | [1] | PLUG,M14 x 1.5 x 14, Cl5.8 | BAS Superseded by part number: 16992315 |
| 15. | 99489017 | [1] | GASKET,9.9mm ID x 20mm OD x 2.5mm Thk | TOR |
| 16. | 11903211 | [1] | PLUG,M12 x 1.25 x 12, Cl5.8 | TOR |
