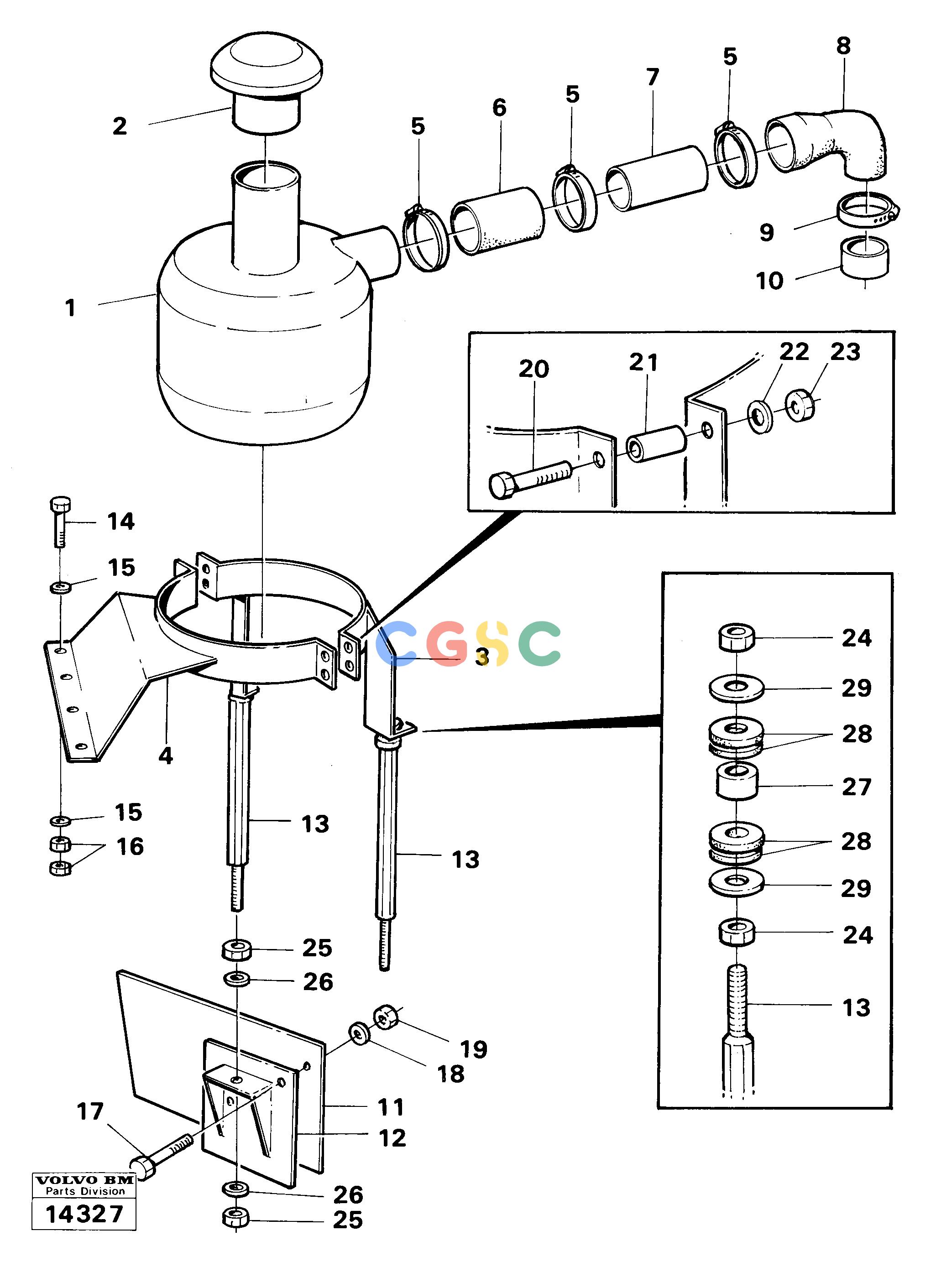

沃尔沃零件查询861 Pree cleaner, oilbath 98986 (6458)861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
271 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE943485
|
[0003] |
Hose clamp
|
|
| 6. |
VOE4762204
|
[0001] |
Hose
|
|
| 7. |
VOE4774283
|
[0001] |
Tube
|
|
| 8. |
VOE4774276
|
[0001] |
Pipe Bend
|
|
| 9. |
VOE943484
|
[0001] |
Hose clamp
|
|
| 1. |
VOE815706
|
[0001] |
Air cleaner
|
|
| 10. |
VOE11033485
|
[0001] |
Extension pipe
|
L=200
|
| |
VOE11033485
|
[0001] |
Extension pipe
|
L = 80
|
| 11. |
VOE4822011
|
[0001] |
Hatch
|
|
| 12. |
VOE4822010
|
[0001] |
Bracket
|
|
| 13. |
VOE6648176
|
[0002] |
Stay
|
|
| 14. |
VOE13946173
|
[0004] |
Screw
|
|
| 15. |
VOE13955894
|
[0008] |
Washer
|
|
| 16. |
VOE963106
|
[0008] |
Lock nut
|
|
| 17. |
VOE946329
|
[0002] |
Flange screw
|
|
| 18. |
VOE976945
|
[0002] |
Washer
|
|
| 19. |
VOE13971089
|
[0002] |
Lock nut
|
|
| 2. |
VOE11707307
|
[0001] |
Cover
|
|
| 20. |
VOE955304
|
[0004] |
Hexagon screw
|
|
| 21. |
VOE4822020
|
[0004] |
Tube
|
|
| 22. |
VOE13955894
|
[0004] |
Washer
|
|
| 23. |
VOE963106
|
[0004] |
Lock nut
|
|
| 24. |
VOE963110
|
[0004] |
Lock nut
|
|
| 25. |
VOE963110
|
[0004] |
Lock nut
|
|
| 26. |
VOE13955900
|
[0004] |
Washer
|
|
| 27. |
VOE252202
|
[0002] |
Spacer tube
|
|
| 28. |
VOE252203
|
[0008] |
Washer
|
|
| 29. |
VOE191940
|
[0004] |
Washer
|
|
| 3. |
VOE4822009
|
[0001] |
Brace
|
|
| |
VOE4822007
|
[0001] |
Air cleaner
|
|
| 4. |
VOE4822008
|
[0001] |
Bracket
|
|
