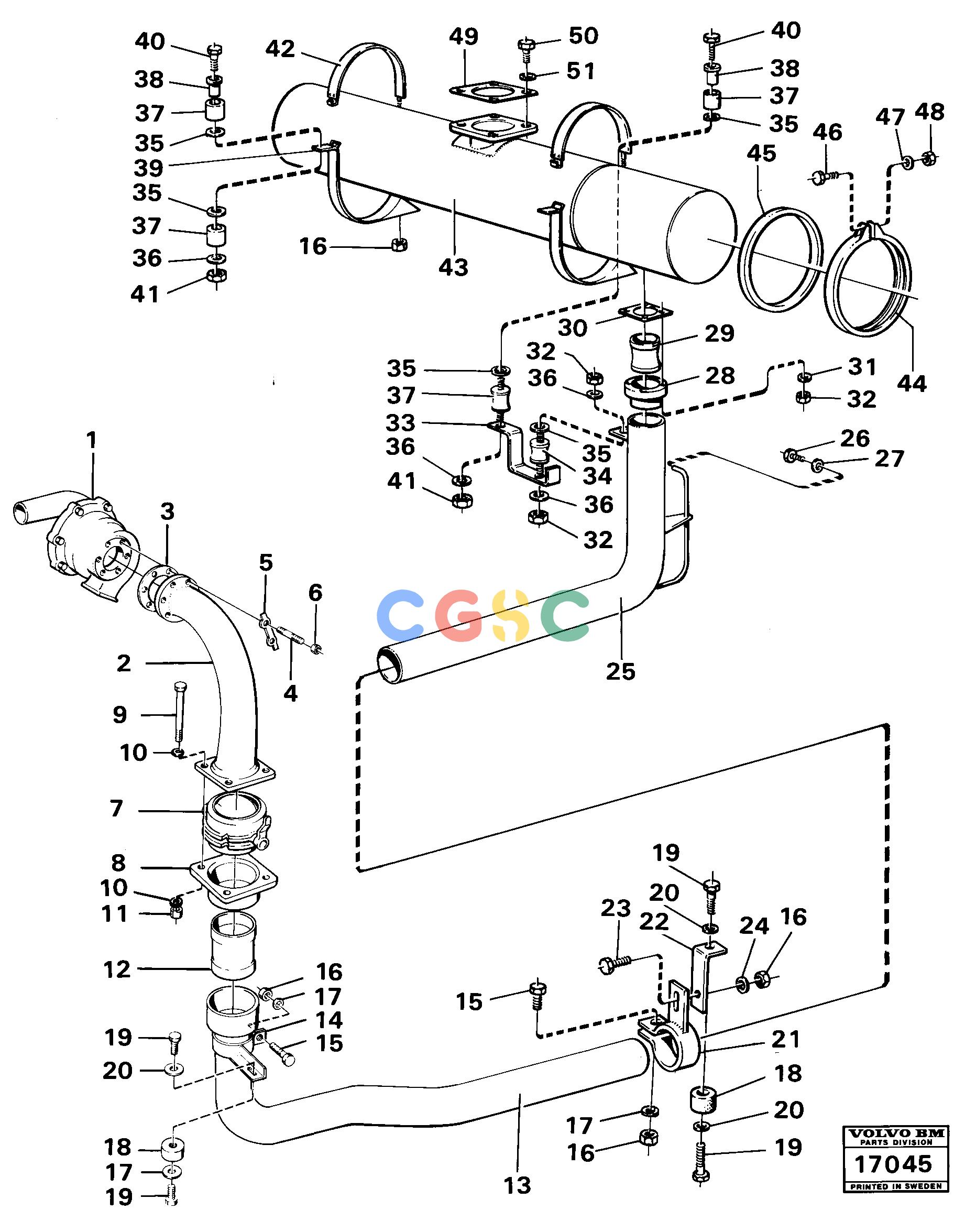

沃尔沃零件查询861 Exhaust system for underground version861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
682 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE943705
|
[0003] |
Tab washer
|
|
| 47. |
VOE13941907
|
[1] |
Washer
|
|
| 48. |
VOE955782
|
[1] |
Hexagon nut
|
|
| 49. |
VOE4773684
|
[1] |
Gasket
|
|
| 50. |
VOE13970947
|
[4] |
Hexagon screw
|
|
| 51. |
VOE941908
|
[0004] |
Spring washer
|
|
| 6. |
VOE13940122
|
[0006] |
Nut
|
|
| 7. |
|
[0001] |
Exhaust brake
|
|
| 8. |
VOE6626468
|
[0001] |
Spacer flange
|
|
| 9. |
VOE942338
|
[0004] |
Hexagon screw
|
|
| 1. |
|
|
Turbocharger
|
|
| 10. |
VOE13961170
|
[0008] |
Washer
|
|
| 11. |
|
[0004] |
Nut
|
|
| 12. |
VOE4780139
|
[0001] |
Cooling element
|
|
| 13. |
VOE4860116
|
[0001] |
Exhaust pipe
|
|
| 14. |
VOE6626469
|
[0001] |
Clamp
|
|
| 15. |
VOE13970950
|
[0002] |
Hexagon screw
|
|
| 16. |
VOE13971098
|
[0005] |
Flange nut
|
|
| 17. |
VOE976945
|
[0003] |
Washer
|
|
| 18. |
VOE6648142
|
[0002] |
Vibration damper
|
|
| 19. |
VOE13970943
|
[0004] |
Hexagon screw
|
|
| 2. |
VOE6648143
|
[0001] |
Tube
|
|
| 20. |
VOE930842
|
[0003] |
Plain washer
|
|
| 21. |
VOE4861502
|
[0001] |
Anchorage
|
|
| 22. |
VOE4861501
|
[0001] |
Plate
|
|
| 23. |
VOE946329
|
[0001] |
Flange screw
|
|
| 24. |
VOE13960143
|
[0001] |
Washer
|
|
| 25. |
VOE4860120
|
[0001] |
Exhaust pipe
|
|
| 26. |
VOE914394
|
[0001] |
Plug
|
|
| 27. |
VOE13947629
|
[0001] |
Plane gasket
|
|
| 28. |
VOE4774455
|
[0001] |
Flange
|
|
| 29. |
VOE4773403
|
[0001] |
Expansion joint
|
|
| 3. |
VOE424629
|
[0001] |
Gasket
|
|
| 30. |
VOE11033124
|
[0001] |
Gasket
|
|
| 31. |
VOE13941907
|
[0004] |
Washer
|
|
| 32. |
VOE955782
|
[0004] |
Hexagon nut
|
SER NO -57659
|
| |
VOE955782
|
[0006] |
Hexagon nut
|
SER NO 57660-
|
| 33. |
|
[0001] |
Bracket
|
|
| 34. |
VOE6643261
|
[0001] |
Vibration damper
|
|
| 35. |
VOE11053666
|
[0009] |
Gasket
|
|
| 36. |
VOE13955894
|
[0004] |
Washer
|
SER NO -57659
|
| |
VOE13955894
|
[0006] |
Washer
|
SER NO 57660-
|
| 37. |
VOE4861537
|
[0008] |
Washer
|
|
| 4. |
VOE953237
|
[0006] |
Stud
|
|
| 38. |
VOE4861531
|
[4] |
Socket
|
|
| 39. |
VOE4861528
|
[2] |
Retainer
|
|
| 40. |
VOE955302
|
[4] |
Hexagon screw
|
|
| 41. |
VOE13945408
|
[6] |
Nut
|
SER NO -57659
|
| |
VOE13945408
|
[4] |
Nut
|
SER NO 57660-
|
| 42. |
VOE6648140
|
[2] |
Mounting strap
|
|
| 43. |
VOE4774413
|
[1] |
Silencer
|
|
| 44. |
VOE4773829
|
[1] |
Clamp
|
|
| 45. |
VOE4773831
|
[1] |
Sealing ring
|
|
| 46. |
VOE955299
|
[1] |
Hexagon screw
|
|
