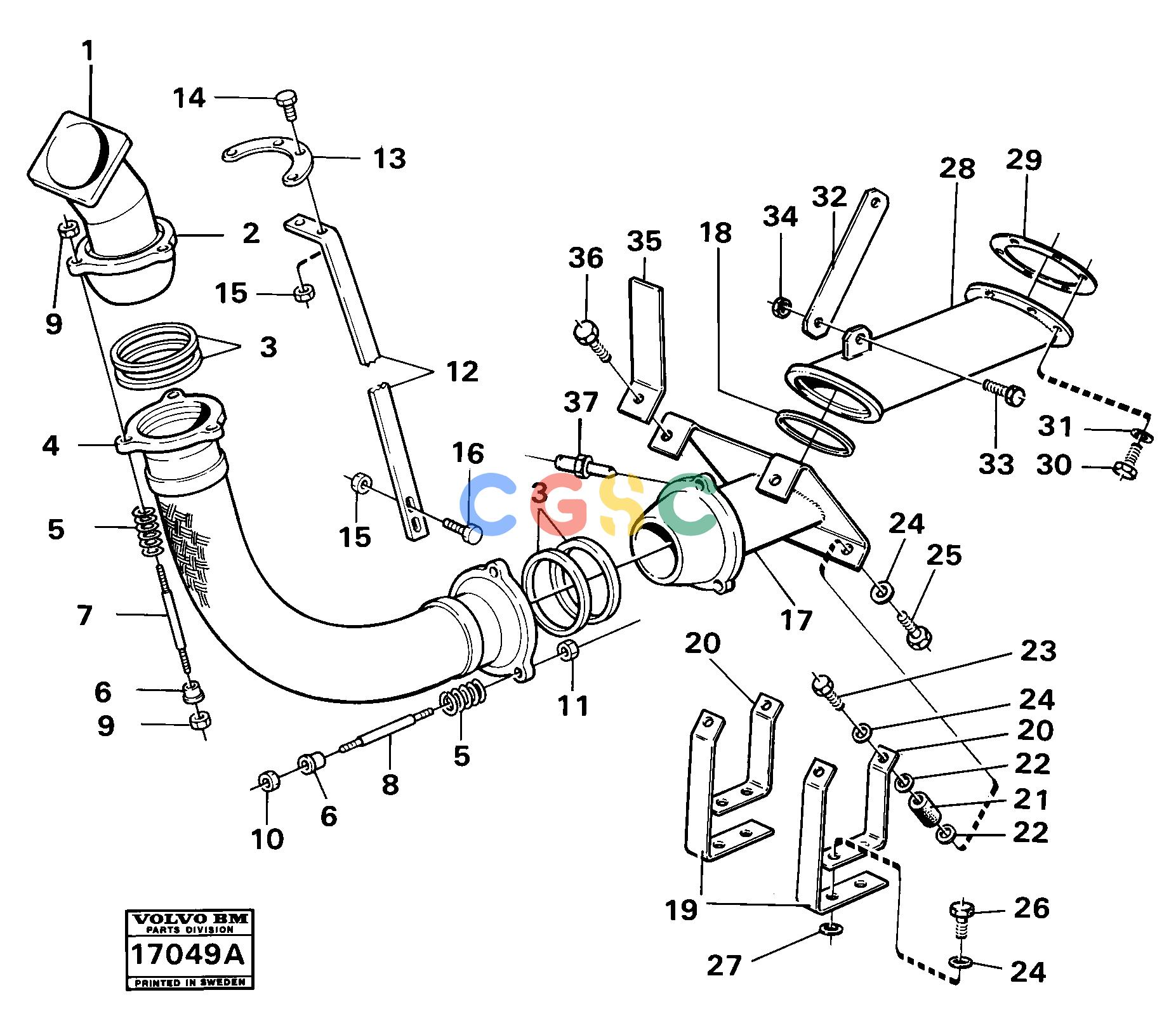

沃尔沃零件查询861 Exhaust cooling 99004, 99564861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE6626646
|
[0006] |
Compression spring
|
|
| 6. |
VOE6626787
|
[0006] |
Guide sleeve
|
|
| 7. |
VOE11064911
|
[0003] |
Stud
|
|
| |
VOE11064911
|
[0006] |
Stud
|
|
| 8. |
VOE6626789
|
[0003] |
Stud
|
|
| 9. |
VOE971099
|
[0006] |
Flange lock nut
|
|
| 1. |
VOE4822780
|
[0001] |
Link
|
|
| 10. |
VOE950356
|
[0003] |
Lock nut
|
|
| |
VOE971099
|
[0003] |
Flange lock nut
|
|
| 11. |
VOE940176
|
[0003] |
Hexagon nut
|
|
| |
VOE13971072
|
[0002] |
Hexagon nut
|
|
| 12. |
VOE4860053
|
[0002] |
Anchorage
|
|
| 13. |
VOE4860052
|
[0001] |
Plate
|
|
| 14. |
VOE13945444
|
[0002] |
Screw
|
|
| 15. |
VOE13945408
|
[0006] |
Nut
|
|
| 16. |
VOE60113082
|
[0004] |
Flange screw
|
|
| 17. |
VOE6626946
|
[0001] |
Connector
|
|
| |
VOE4861715
|
[0001] |
Connector
|
|
| 18. |
VOE6626643
|
[0001] |
Gasket
|
|
| 19. |
VOE4822289
|
[0002] |
Anchorage
|
|
| |
|
[0002] |
Anchorage
|
|
| 2. |
VOE4821615
|
[0001] |
Ring
|
|
| 20. |
VOE4822288
|
[0002] |
Anchorage
|
|
| |
|
[0001] |
Anchorage
|
|
| 21. |
VOE6648593
|
[0004] |
Absorber
|
|
| 22. |
VOE6626649
|
[0008] |
Gasket kit
|
|
| 23. |
VOE940199
|
[0004] |
Hexagon screw
|
|
| 24. |
VOE13955894
|
[0012] |
Washer
|
|
| 25. |
VOE13955294
|
[0003] |
Screw
|
|
| 26. |
VOE940186
|
[0004] |
Hexagon screw
|
|
| 27. |
VOE925760
|
[0004] |
Washer
|
|
| |
VOE925760
|
[REQ] |
Washer
|
|
| 28. |
VOE4861507
|
[0001] |
Tube
|
|
| |
VOE4861717
|
[0001] |
Tube
|
|
| 29. |
VOE11033102
|
[0001] |
Gasket
|
|
| 3. |
VOE4823343
|
[0004] |
Gasket
|
|
| 30. |
VOE13971019
|
[0004] |
Screw
|
|
| 31. |
VOE976945
|
[0004] |
Washer
|
|
| 32. |
|
[0001] |
Brace
|
|
| 33. |
VOE13965185
|
[0002] |
Screw
|
|
| 34. |
VOE13971098
|
[0002] |
Flange nut
|
|
| 35. |
VOE4822683
|
[0001] |
Anchorage
|
|
| 36. |
VOE13955295
|
[0001] |
Screw
|
|
| 37. |
VOE4774466
|
[0001] |
Injector
|
|
| 4. |
VOE4822685
|
[0001] |
Exhaust pipe
|
|
| |
VOE4821616
|
[0001] |
Exhaust pipe
|
|
