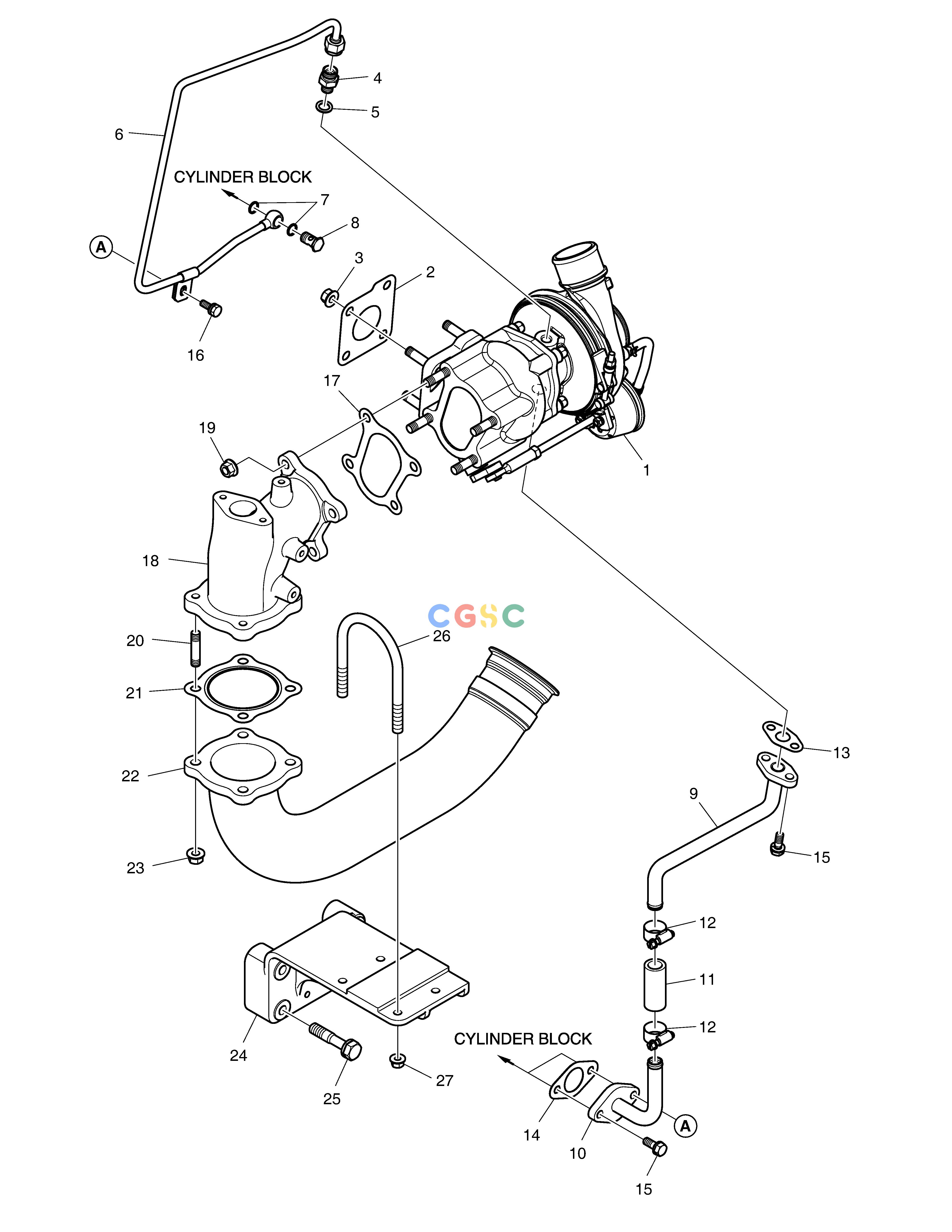

斗山零件查询TURBO CHARGER DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
823 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150105-00057
|
[1] |
|
|
| 10. |
420217-00023
|
[1] |
|
|
| 10. |
420217-00023A
|
[1] |
|
|
| 11. |
420108-00047
|
[1] |
|
|
| 11. |
420108-00047A
|
[1] |
|
|
| 12. |
06.67020-0102
|
[2] |
CLAMP
|
|
| 12. |
120202-00230
|
[2] |
|
|
| 13. |
400612-00027
|
[1] |
|
|
| 14. |
65.96601-0052
|
[1] |
GASKET
|
|
| 15. |
06.01913-3114
|
[3] |
BOLT ASS`Y M8X22
|
|
| 15. |
120106-00191
|
[3] |
BOLT,HEX FLANGE
|
|
| 16. |
06.01923-3115
|
[1] |
BOLT ASS`Y M8X25
|
|
| 17. |
400629-00011
|
[1] |
|
|
| 18. |
420203-00179
|
[1] |
|
|
| 19. |
65.90535-0001
|
[4] |
NUT
|
|
| 2. |
400629-00009
|
[1] |
|
|
| 20. |
65.90201-0076
|
[4] |
. BOLT;STUD
|
|
| 21. |
400611-00013
|
[1] |
|
|
| 22. |
420203-00104A
|
[1] |
|
|
| 23. |
65.90535-0001
|
[4] |
NUT
|
|
| 24. |
110443-00021A
|
[1] |
|
|
| 25. |
06.01943-3323
|
[4] |
BOLT ASS`Y M12X1.5X60
|
|
| 26. |
120119-00009
|
[2] |
|
|
| 27. |
65.90535-0003
|
[4] |
NUT
|
|
| 3. |
65.90535-0001
|
[4] |
NUT
|
|
| 4. |
430201-00378
|
[1] |
|
|
| 5. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 6. |
420214-00054A
|
[1] |
|
|
| 7. |
06.56190-0704
|
[2] |
. RING;SEAL
|
|
| 8. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
| 9. |
420217-00050
|
[1] |
|
|
| 9. |
420217-00050A
|
[1] |
|
|
