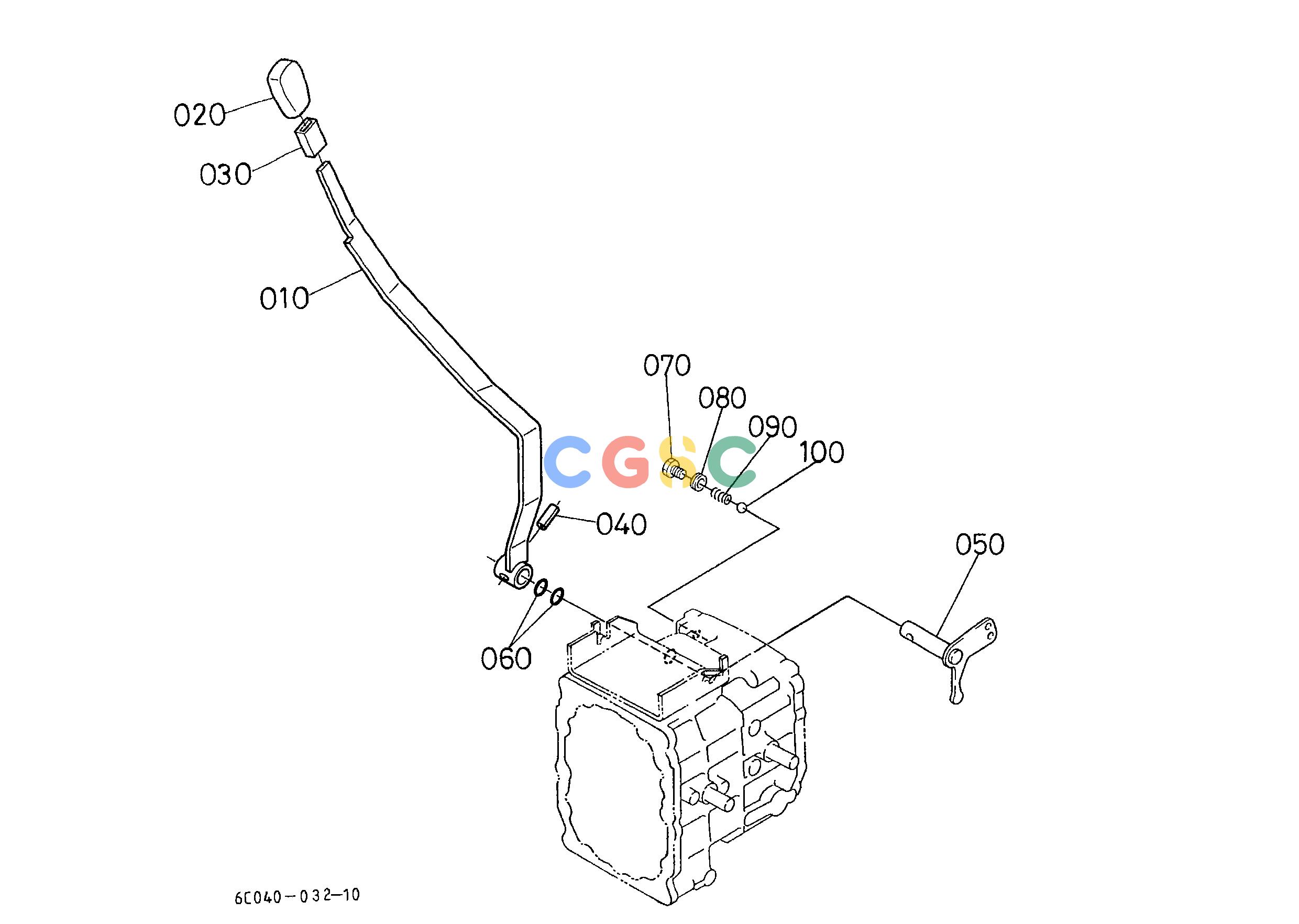

久保田零件查询F11300 FRONT WHEEL DRIVE LEVER MAIN SP-CHANGE LEVEREPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
193 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04042910
|
[1] |
LEVER,4WD CHANGE
|
1.4520(lbs); 0.660
|
| 010. |
6C04042913
|
[1] |
LEVER,4WD CHANGE
|
1.5400(lbs); 0.700
|
| 020. |
6C04042631
|
[1] |
GRIP,LEVER
|
0.0000(lbs); 0.000
|
| 020. |
6A32042630
|
[1] |
GRIP,LEVER
|
0.0418(lbs); 0.019
|
| 030. |
3741043570
|
[1] |
PIPE
|
0.0110(lbs); 0.005
|
| 040. |
0541100836
|
[1] |
PIN,SPRING
|
0.0176(lbs); 0.008
|
| 050. |
6C04019210
|
[1] |
ARM,4WD SHIFT
|
0.4400(lbs); 0.200
|
| 060. |
0481600160
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 070. |
6C04019222
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 080. |
0471701000
|
[1] |
WASHER,SEAL
|
0.0022(lbs); 0.001
|
| 090. |
6206118260
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 100. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
