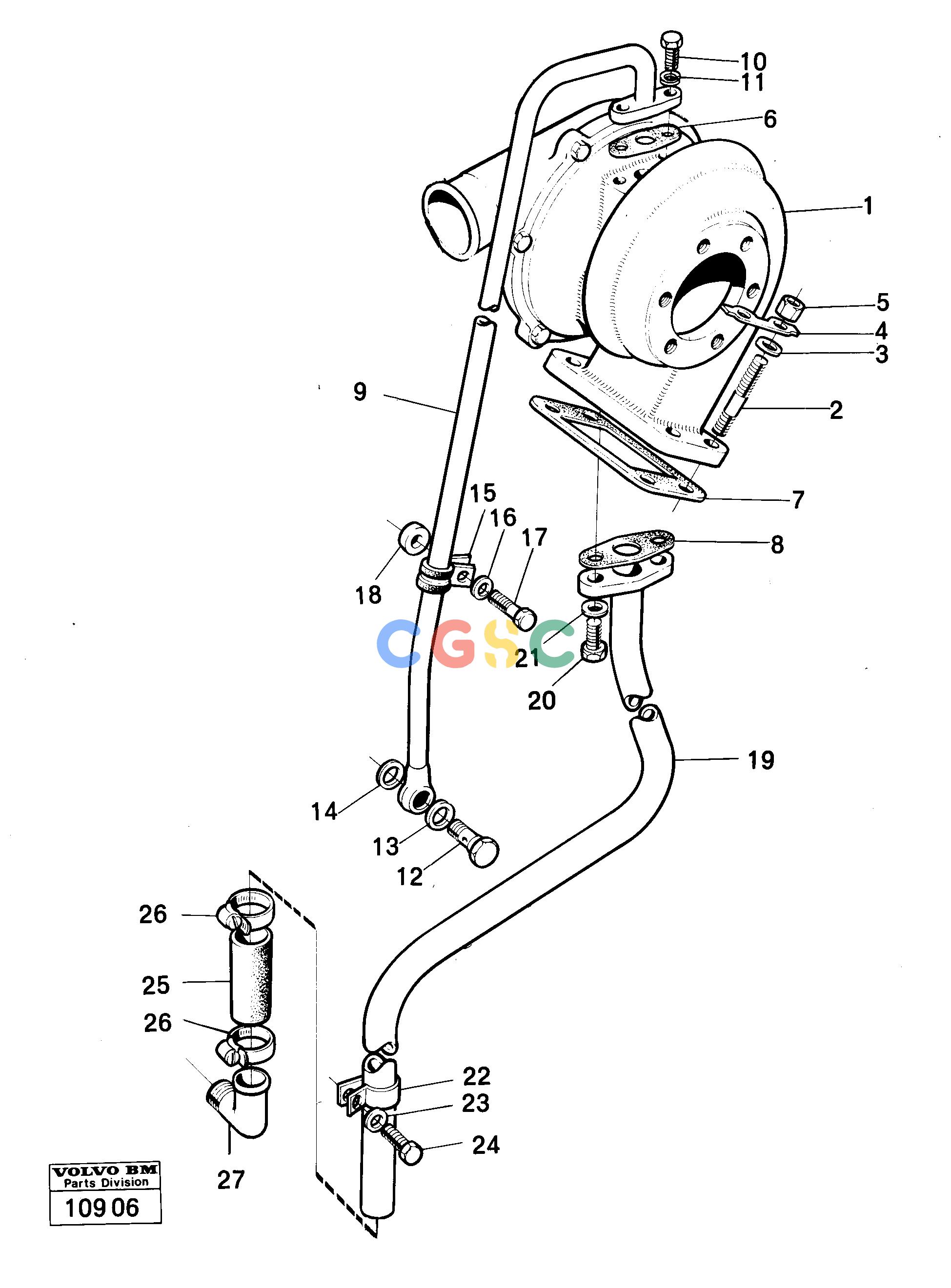

沃尔沃零件查询861 Turbocharger with fitting parts861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE191894
|
[0004] |
Nut
|
|
| 6. |
|
[0001] |
Gasket
|
|
| 7. |
|
[0001] |
Gasket
|
|
| 8. |
|
[0001] |
Gasket
|
|
| 9. |
VOE465272
|
[0001] |
Oil line
|
|
| 1. |
|
[0001] |
Turbocharger
|
|
| 10. |
VOE926323
|
[0001] |
Screw
|
L=25 MM
|
| |
VOE956571
|
[0001] |
Hex. socket screw
|
L=32 MM
|
| 11. |
VOE13941907
|
[0002] |
Washer
|
|
| 12. |
VOE942007
|
[0001] |
Hollow screw
|
|
| 13. |
VOE13947621
|
[0001] |
Plane gasket
|
|
| 14. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| 15. |
VOE952625
|
[0001] |
Clamp
|
|
| 16. |
VOE13941906
|
[0001] |
Washer
|
|
| 17. |
VOE955513
|
[0001] |
Hexagon screw
|
|
| 18. |
VOE944563
|
[0001] |
Spacer washer
|
|
| 2. |
VOE953259
|
[0004] |
Stud
|
|
| 19. |
VOE4773841
|
[0001] |
Return line
|
|
| 20. |
VOE13940115
|
[0002] |
Screw
|
|
| 21. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 22. |
VOE7190159
|
[0002] |
Clamp
|
|
| 23. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 24. |
VOE13940133
|
[0002] |
Screw
|
|
| 25. |
VOE192358
|
[0065] |
Rubber hose
|
|
| 26. |
VOE13943474
|
[0002] |
Hose clamp
|
|
| 27. |
VOE479959
|
[0001] |
Nipple
|
|
| 3. |
VOE13940097
|
[0004] |
Washer
|
|
| 4. |
VOE942167
|
[0002] |
Tab washer
|
|
