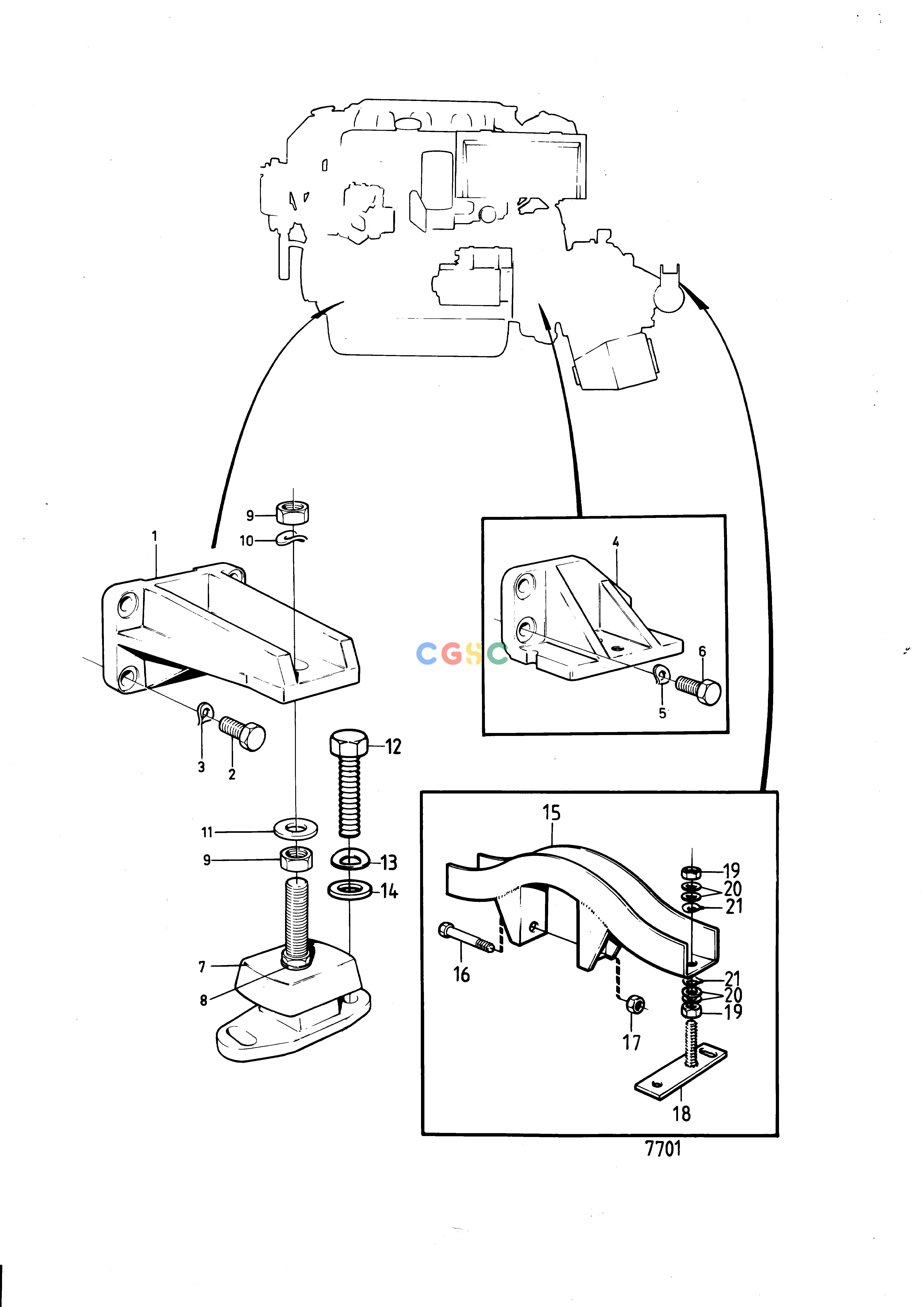

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30EngineEngine Suspension: DEPC Volvo Penta Parts catalog
广数供应链运营团队, 18 02月, 2025，浏览：
143 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829517
|
[2] |
Engine bracket
|
|
| 2. |
955342
|
[6] |
Hexagon screw
|
For side mounted fuel filter.
|
| 2. |
955344
|
[2] |
Hexagon screw
|
For side mounted fuel filter., Included in mounting kit 838978., See group 2C
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 7. |
846764
|
[2] |
Rubber element
|
|
| 8. |
955900
|
[2] |
Washer
|
|
| 9. |
955805
|
[4] |
Hexagon nut
|
|
| 10. |
941912
|
[2] |
Spring washer
|
|
| 11. |
191940
|
[4] |
Washer
|
|
| 12. |
955321
|
[4] |
Hexagon screw
|
|
| 13. |
941908
|
[4] |
Spring washer
|
|
| 14. |
960148
|
[4] |
Washer
|
|
