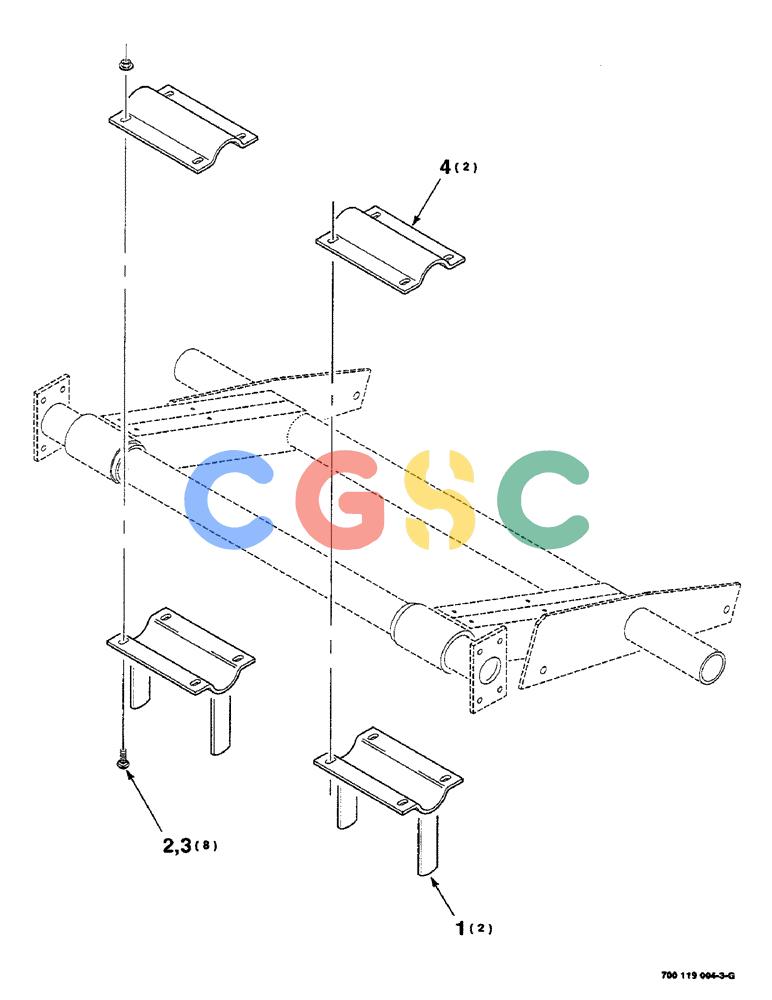

凯斯零件查询(8455) - CASE IH ROUND BALER (STANDARD) (1/92-12/99) (6-26) - GUIDES ASSEMBLY (FORMING BELTS) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
763 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700122577
|
[2] |
GUIDE
|
CAS
- belt
|
| 2. |
433-620
|
[8] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
|
| 3. |
232-5316
|
[8] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 4. |
700122578
|
[2] |
GUIDE
|
CAS
CLAMP - half
|
