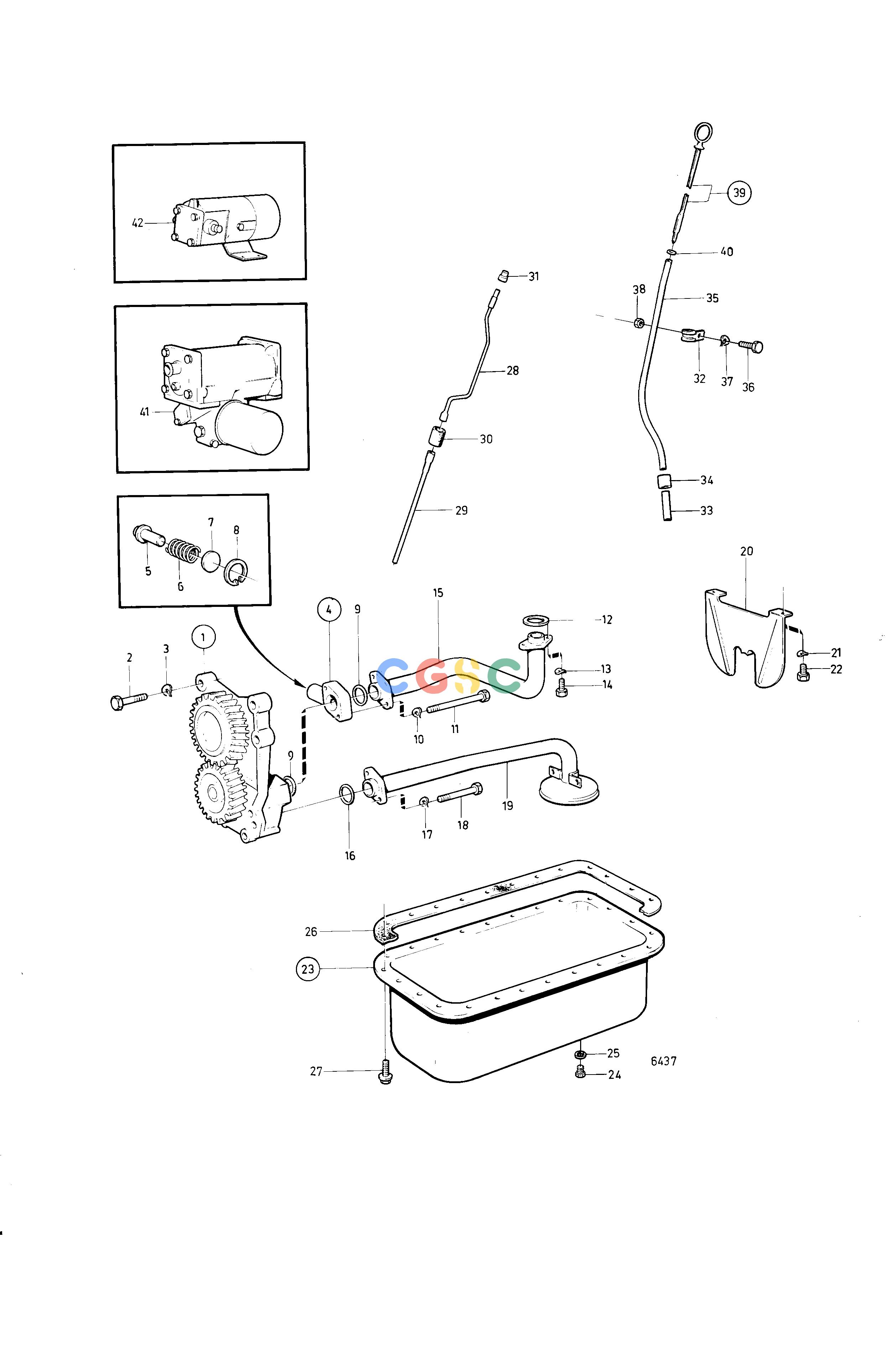

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30EngineLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
669 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
955299
|
[4] |
Hexagon screw
|
|
| 3. |
941907
|
[4] |
Spring washer
|
|
| 4. |
1542255
|
[1] |
Reduction valve
|
|
| 5. |
471115
|
[1] |
Reduction valve
|
|
| 6. |
1542257
|
[1] |
Spring
|
|
| 7. |
948343
|
[1] |
Disc
|
|
| 8. |
914506
|
[1] |
Snap ring
|
|
| 9. |
469482
|
[2] |
Sealing ring
|
|
| 10. |
941907
|
[2] |
Spring washer
|
|
| 11. |
100222
|
[2] |
Hexagon screw
|
(940129)
|
| 12. |
1542385
|
[2] |
Sealing ring
|
|
| 13. |
941907
|
[2] |
Spring washer
|
|
| 14. |
955295
|
[2] |
Hexagon screw
|
|
| 15. |
859055
|
[1] |
Delivery pipe
|
|
| 16. |
949657
|
[1] |
O-ring
|
|
| 17. |
941907
|
[2] |
Spring washer
|
|
| 18. |
955302
|
[2] |
Hexagon screw
|
|
| 19. |
859054
|
[1] |
Suction pipe
|
(858067)
|
| 20. |
846742
|
[1] |
Baffle plate
|
|
| 21. |
942385
|
[2] |
Disc spring
|
|
| 22. |
955293
|
[2] |
Hexagon screw
|
|
| 23. |
845887
|
[1] |
Sump
|
|
| 24. |
948187
|
[1] |
Plug
|
|
| 25. |
18818
|
[1] |
Gasket
|
|
| 26. |
1544124
|
[1] |
Gasket
|
|
| 27. |
946440
|
[24] |
Flange screw
|
AQAD30A
|
| 27. |
955295
|
[2] |
Hexagon screw
|
See group 2B
|
| 28. |
846008
|
[1] |
Oil bilge pipe
|
|
| 29. |
846007
|
[1] |
Tube
|
|
| 30. |
843533
|
[1] |
Rubber hose
|
|
| 31. |
943835
|
[1] |
Plug
|
|
| 32. |
946834
|
[2] |
Clamp
|
|
| 33. |
843692
|
[1] |
Tube
|
|
| 34. |
843533
|
[1] |
Rubber hose
|
|
| 35. |
846774
|
[1] |
Tube
|
|
| 36. |
955295
|
[2] |
Hexagon screw
|
|
| 37. |
960141
|
[2] |
Washer
|
|
| 38. |
946036
|
[2] |
Lock nut
|
|
| 39. |
846775
|
[1] |
Oil dipstick
|
|
| 40. |
949187
|
[1] |
O-ring
|
|
| 41. |
|
|
|
|
| 42. |
|
|
|
See group 9
|
