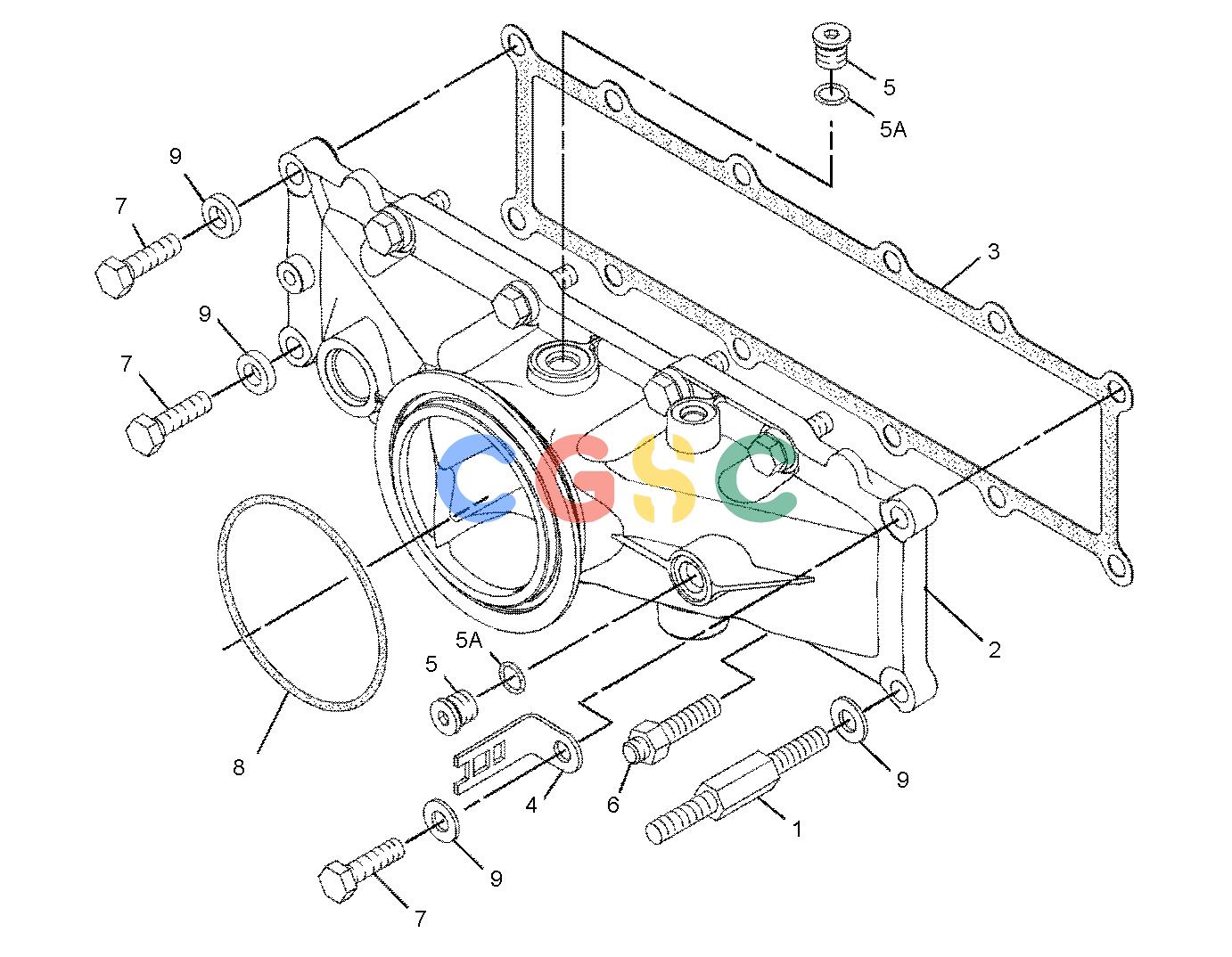

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 121-5908M | [1] | STUD(M10X1.5X105-MM) | |
| 2. | 375-8478 | [1] | MANIFOLD-INLET | |
| 3. | 230-3518 | [1] | GASKET-MANIFOLD | |
| 4. | 132-5789 | [1] | CLIP(LADDER) | |
| 5. | 183-3407 | [2] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 5A. | 214-7568 | [1] | SEAL-O-RING | |
| 9S-8004 | [1] | PLUG(9/16-18-THD) | ||
| 6. | 176-9237M | [1] | BOLT-SPECIAL(M10X1.5-THD) | |
| 7. | 6V-3822M | [10] | BOLT(M10X1.5X35-MM) | |
| 8. | 6V-6353 | [1] | SEAL-O-RING | |
| 9. | 6V-5839 | [12] | WASHER(11X21X2.5-MM THK) | |
| M | METRIC PART | |||
