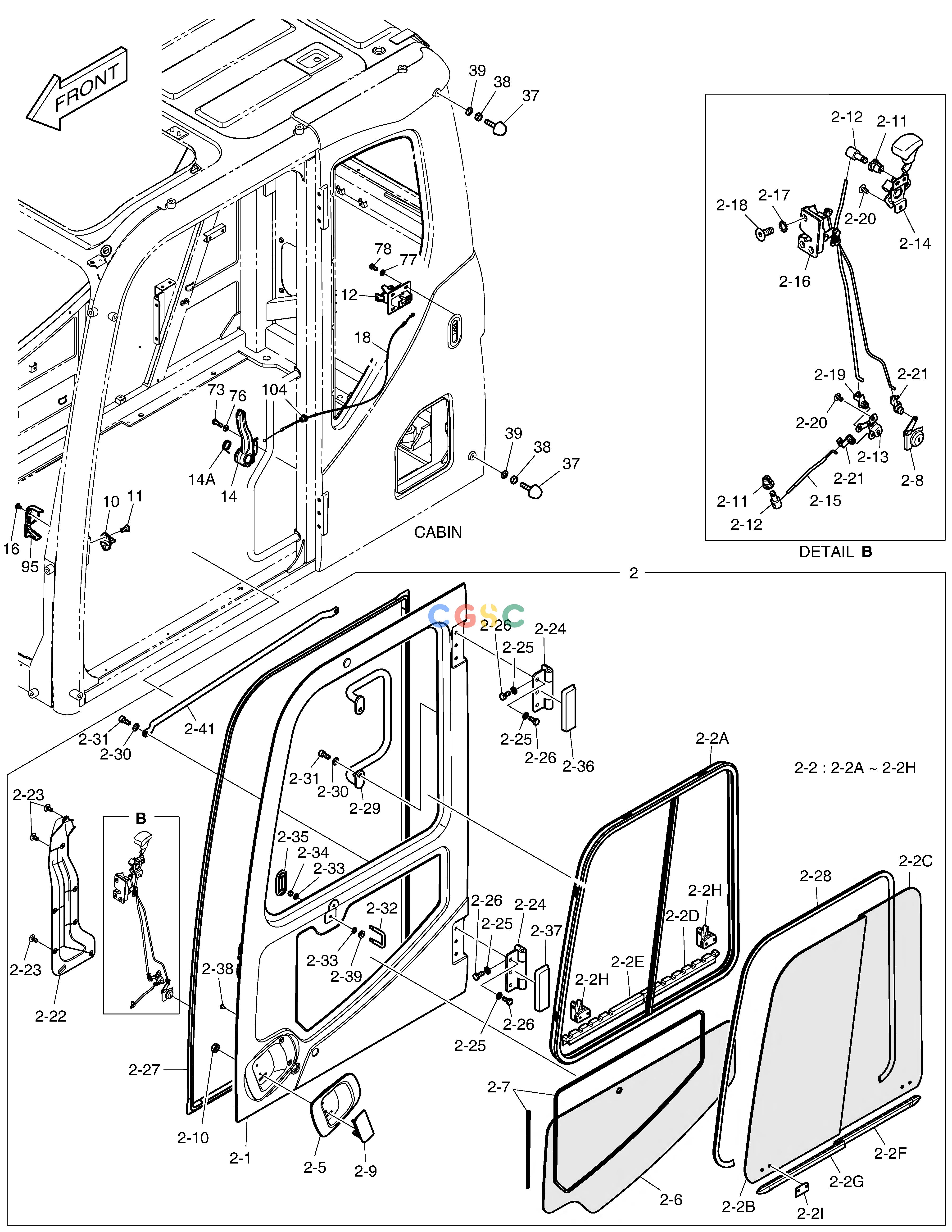

斗山零件查询CABIN(4) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
367 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-00344L
|
[1] |
|
|
| 10. |
2142-9005
|
[1] |
STRIKER
|
|
| 104. |
131009-00041
|
[1] |
|
|
| 11. |
2120-2150D1
|
[2] |
BOLT
|
|
| 12. |
100601-00022
|
[1] |
CATCH,DOOR;BACK-LOCK
|
|
| 14. |
101101-00133C
|
[1] |
|
|
| 14A. |
111603-00006
|
[1] |
|
|
| 16. |
2120-2166D53
|
[2] |
. SCREW
|
|
| 18. |
310302-00036C
|
[1] |
|
|
| 2. |
110982-00791
|
[1] |
|
|
| 2-1. |
300427-00023C
|
[1] |
|
|
| 2-10. |
S4012333
|
[2] |
NUT
|
|
| 2-11. |
2124-1689A
|
[2] |
. SNAP
|
|
| 2-12. |
2123-2247
|
[2] |
. PIN
|
|
| 2-13. |
137-00092
|
[1] |
. LINK,DOOR INNER
|
|
| 2-14. |
133-00221
|
[1] |
. LEVER ASSY,INNER HANDLE
|
|
| 2-15. |
136-00055A
|
[1] |
. ROD,OUTER HANDLE
|
|
| 2-16. |
125-00072
|
[1] |
. CATCH ASSY,DOOR INNER
|
|
| 2-17. |
S5210303
|
[3] |
. WASHER
|
|
| 2-18. |
2120-2150D3
|
[3] |
SCREW
|
|
| 2-19. |
124-00344
|
[1] |
. CLIP,ROD
|
|
| 2-2. |
220109-00017C
|
[1] |
|
|
| 2-20. |
2120-2166D52
|
[5] |
. BOLT
|
|
| 2-21. |
124-00010
|
[2] |
. CLIP,ROD
|
|
| 2-22. |
110517-00786
|
[1] |
. COVER,SIDE,DOOR INNER
|
|
| 2-23. |
2120-2166D53
|
[7] |
. SCREW
|
|
| 2-24. |
110927-00083A
|
[2] |
|
|
| 2-25. |
2114-1898D15
|
[12] |
WASHER
|
|
| 2-26. |
2120-2166D2
|
[12] |
BOLT
|
|
| 2-27. |
220214-00009B
|
[1] |
|
|
| 2-28. |
101588-00024
|
[1] |
|
|
| 2-29. |
220206-00002G
|
[1] |
|
|
| 2-2A. |
220109-00022
|
[1] |
|
|
| 2-2B. |
500119-00086A
|
[1] |
|
|
| 2-2C. |
500119-00087A
|
[1] |
|
|
| 2-2D. |
110922-00019B
|
[1] |
|
|
| 2-2E. |
110922-00213B
|
[1] |
|
|
| 2-2F. |
110922-00020A
|
[1] |
|
|
| 2-2G. |
110922-00025A
|
[1] |
|
|
| 2-2H. |
101544-00014
|
[2] |
|
|
| 2-2I. |
101555-00096
|
[1] |
|
|
| 2-30. |
2114-1898D14
|
[4] |
WASHER
|
|
| 2-31. |
S2208861
|
[4] |
BOLT
|
|
| 2-32. |
101583-00002
|
[1] |
|
|
| 2-33. |
2891-1311
|
[4] |
. PLATE
|
|
| 2-34. |
S4012533
|
[2] |
NUT
|
|
| 2-35. |
621-02867A
|
[1] |
. COVER,DOOR INNER
|
|
| 2-36. |
220204-00006B
|
[1] |
|
|
| 2-37. |
220204-00007B
|
[1] |
|
|
| 2-38. |
S3640333
|
[2] |
|
|
| 2-39. |
110508-00536
|
[1] |
|
|
| 2-41. |
220206-00045A
|
[1] |
|
|
| 2-5. |
110508-00765A
|
[1] |
|
|
| 2-6. |
500119-00040
|
[1] |
|
|
| 2-7. |
180313-00002
|
[1] |
|
|
| 2-8. |
K1003900
|
[1] |
KEY ASS'Y;DOOR
|
|
| 2-9. |
2172-9021
|
[1] |
. HANDLE,OUTER
|
|
| 37. |
K1001260A
|
[2] |
STOPPER
|
|
| 38. |
2121-1311D4
|
[2] |
NUT
|
|
| 39. |
2114-1898D15
|
[2] |
WASHER
|
|
| 73. |
2120-2166D36
|
[2] |
BOLT
|
|
| 76. |
2114-1898D3
|
[2] |
WASHER
|
|
| 77. |
2114-1898D14
|
[4] |
WASHER
|
|
| 78. |
2120-2166D5
|
[4] |
BOLT
|
|
| 95. |
110508-00905B
|
[1] |
|
|
