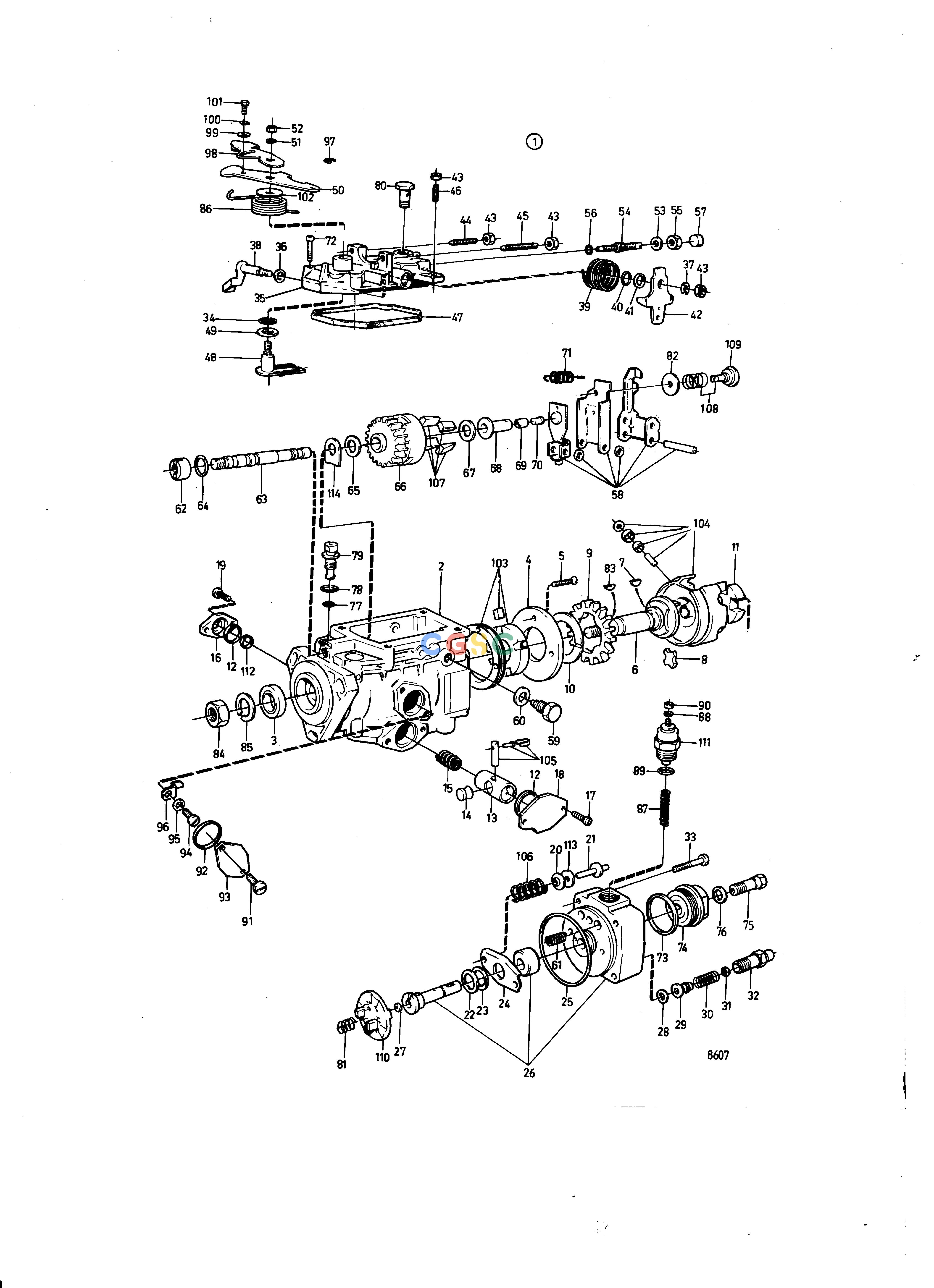

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Fuel SystemFuel Injection Pump: 846023EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846023
|
[1] |
Injection pump
|
|
| 2. |
|
|
|
|
| 3. |
844178
|
[1] |
Sealing ring
|
|
| 4. |
844145
|
[1] |
Back-up ring
|
|
| 5. |
838334
|
[2] |
Screw
|
|
| 6. |
844148
|
[1] |
Axle shaft
|
|
| 7. |
844293
|
[1] |
Key
|
|
| 8. |
844150
|
[2] |
Absorber
|
|
| 9. |
844147
|
[1] |
Gear
|
|
| 10. |
844146
|
[1] |
Washer
|
|
| 11. |
844152
|
[1] |
Washer
|
|
| 12. |
844176
|
[2] |
O-ring
|
|
| 13. |
838415
|
[1] |
Piston
|
|
| 14. |
858907
|
[1] |
Roller
|
(844181)
|
| 15. |
844184
|
[1] |
Spring
|
|
| 16. |
844185
|
[1] |
Flange
|
|
| 17. |
838335
|
[4] |
Screw
|
|
| 18. |
844175
|
[1] |
Cover
|
|
| 19. |
838335
|
[2] |
Screw
|
|
| 20. |
844163
|
[2] |
Spring disc
|
|
| 21. |
844166
|
[2] |
Pin
|
|
| 22. |
243527
|
[1] |
Gasket
|
|
| 23. |
243530
|
[1] |
Gasket
|
|
| 24. |
844162
|
[1] |
Washer
|
|
| 25. |
243555
|
[1] |
Sealing ring
|
(844168)
|
| 26. |
838336
|
[1] |
Housing
|
|
| 27. |
243531
|
[1] |
Adjusting washer
|
TH=1,80mm
|
| 27. |
243534
|
[1] |
Adjusting washer
|
TH=1,94mm
|
| 27. |
845726
|
[1] |
Shim
|
TH=2,00mm
|
| 27. |
844155
|
[1] |
Adjusting washer
|
TH=2,12mm
|
| 27. |
844156
|
[1] |
Adjusting washer
|
TH=2,20mm
|
| 27. |
845729
|
[1] |
Shim
|
TH=2,32mm
|
| 27. |
845730
|
[1] |
Shim
|
TH=2,40mm
|
| 27. |
243545
|
[1] |
Adjusting washer
|
TH=2,50mm
|
| 27. |
844158
|
[1] |
Adjusting washer
|
TH=2,52mm
|
| 27. |
844160
|
[1] |
Adjusting washer
|
TH=2,72mm
|
| 27. |
844161
|
[1] |
Adjusting washer
|
TH=2,80mm
|
| 28. |
845738
|
[4] |
Washer
|
|
| 29. |
838442
|
[4] |
Delivery valve
|
(838337)
|
| 30. |
243559
|
[4] |
Spring
|
|
| 31. |
243560
|
[4] |
Gasket
|
|
| 32. |
244688
|
[4] |
Nipple
|
|
| 33. |
838338
|
[4] |
Screw
|
|
| 34. |
243567
|
[1] |
Sealing ring
|
|
| 35. |
838339
|
[1] |
Cover
|
|
| 36. |
844220
|
[1] |
Washer
|
|
| 37. |
838340
|
[1] |
Spring ring
|
|
| 38. |
844222
|
[1] |
Shaft
|
|
| 39. |
844223
|
[1] |
Spring
|
|
| 40. |
844224
|
[1] |
O-ring
|
|
| 41. |
844225
|
[1] |
Washer
|
|
| 42. |
844226
|
[1] |
Lever
|
|
| 43. |
955781
|
[4] |
Hexagon nut
|
|
| 44. |
1277235
|
[1] |
Stud
|
|
| 45. |
844228
|
[1] |
Stud
|
|
| 46. |
844229
|
[1] |
Stud
|
|
| 47. |
845785
|
[1] |
Gasket
|
|
| 48. |
838341
|
[1] |
Shaft
|
|
| 49. |
844220
|
[1] |
Washer
|
|
| 50. |
838342
|
[1] |
Fork kit
|
|
| 51. |
838340
|
[1] |
Spring ring
|
|
| 52. |
955781
|
[1] |
Hexagon nut
|
|
| 53. |
25703
|
[1] |
Washer
|
|
| 54. |
1257677
|
[1] |
Screw
|
Alt, L=26mm
|
| 54. |
1257678
|
[1] |
Screw
|
Alt, L=24mm
|
| 54. |
1257679
|
[1] |
Screw
|
Alt, L=28mm
|
| 55. |
838343
|
[1] |
Nut
|
|
| 56. |
844235
|
[1] |
O-ring
|
|
| 57. |
844652
|
[1] |
Spacer sleeve
|
|
| 58. |
838344
|
[1] |
Control arm
|
|
| 59. |
838345
|
[2] |
Screw
|
|
| 60. |
838346
|
[2] |
Gasket
|
|
| 61. |
844167
|
[2] |
Spring
|
|
| 62. |
844217
|
[1] |
Nut
|
|
| 63. |
838347
|
[1] |
Control shaft
|
|
| 64. |
243786
|
[1] |
O-ring
|
|
| 65. |
844214
|
[1] |
Washer
|
Alt, TH=1,40mm
|
| 65. |
845750
|
[1] |
Washer
|
Alt, TH=1,30mm
|
| 65. |
845751
|
[1] |
Washer
|
Alt, TH=1,35mm
|
| 66. |
844213
|
[1] |
Control wheel
|
|
| 67. |
838348
|
[1] |
Spacer washer
|
|
| 68. |
844210
|
[1] |
Sleeve
|
|
| 69. |
844209
|
[1] |
Pin
|
|
| 70. |
845757
|
[1] |
Pin
|
L=7,60mm
|
| 70. |
845758
|
[1] |
Pin
|
L=7,80mm
|
| 70. |
845759
|
[1] |
Pin
|
L=8,00mm
|
| 70. |
845760
|
[1] |
Pin
|
L=8,20mm
|
| 70. |
845761
|
[1] |
Pin
|
L=8,40mm
|
| 70. |
845762
|
[1] |
Pin
|
L=8,60mm
|
| 70. |
845763
|
[1] |
Pin
|
L=8,80mm
|
| 70. |
845764
|
[1] |
Pin
|
L=9,00mm
|
| 70. |
845765
|
[1] |
Pin
|
L=9,20mm
|
| 70. |
845766
|
[1] |
Pin
|
L=9,40mm
|
| 70. |
845767
|
[1] |
Pin
|
L=9,60mm
|
| 70. |
845768
|
[1] |
Pin
|
L=9,80mm
|
| 70. |
845769
|
[1] |
Pin
|
L=10,00mm
|
| 70. |
845770
|
[1] |
Pin
|
L=10,20mm
|
| 70. |
845771
|
[1] |
Pin
|
L=10,40mm
|
| 71. |
838349
|
[1] |
Spring
|
|
| 72. |
838350
|
[4] |
Screw
|
|
| 73. |
838402
|
[1] |
O-ring
|
|
| 74. |
844171
|
[1] |
Fitting
|
|
| 75. |
845737
|
[1] |
Screw
|
Repl by 844171
|
| 76. |
947620
|
[1] |
Gasket
|
|
| 77. |
243521
|
[1] |
Sealing ring
|
|
| 78. |
243520
|
[1] |
Sealing ring
|
|
| 79. |
844179
|
[1] |
Valve
|
|
| 80. |
844237
|
[1] |
Hollow screw
|
|
| 81. |
244691
|
[1] |
Spring
|
|
| 82. |
838403
|
[1] |
Washer
|
|
| 83. |
25464
|
[1] |
Key
|
|
| 84. |
955784
|
[1] |
Hexagon nut
|
|
| 85. |
838404
|
[1] |
Spring ring
|
|
| 86. |
844230
|
[1] |
Spring
|
|
| 87. |
844186
|
[1] |
Spring
|
|
| 88. |
25261
|
[1] |
Washer
|
(838405)
|
| 90. |
838406
|
[1] |
Nut
|
|
| 91. |
956092
|
[2] |
Cross recessed screw
|
|
| 92. |
844176
|
[1] |
O-ring
|
|
| 93. |
844175
|
[1] |
Cover
|
|
| 94. |
956057
|
[1] |
Cross recessed screw
|
|
| 95. |
941904
|
[1] |
Spring washer
|
|
| 96. |
243506
|
[1] |
Direction indicator
|
|
| 98. |
838407
|
[1] |
Lever
|
|
| 99. |
955892
|
[1] |
Washer
|
|
| 100. |
838340
|
[1] |
Spring ring
|
|
| 101. |
838408
|
[1] |
Screw
|
|
| 102. |
845777
|
[1] |
Washer
|
|
| 103. |
844144
|
[1] |
Rotor kit
|
|
| 104. |
838409
|
[1] |
Roller bearing
|
|
| 105. |
844182
|
[1] |
Piston bolt kit
|
|
| 106. |
844164
|
[1] |
Spring kit
|
|
| 107. |
844212
|
[1] |
Set of weights
|
|
| 109. |
838410
|
[1] |
Set screw
|
|
| 110. |
838411
|
[1] |
Companion flange
|
|
| 111. |
|
|
|
(838412)
|
| 112. |
244425
|
[1] |
Adjusting washer
|
|
| 113. |
844165
|
[2] |
Washer
|
|
| 114. |
844215
|
[1] |
Washer
|
|
| 114. |
844240
|
[1] |
Gasket kit
|
|
