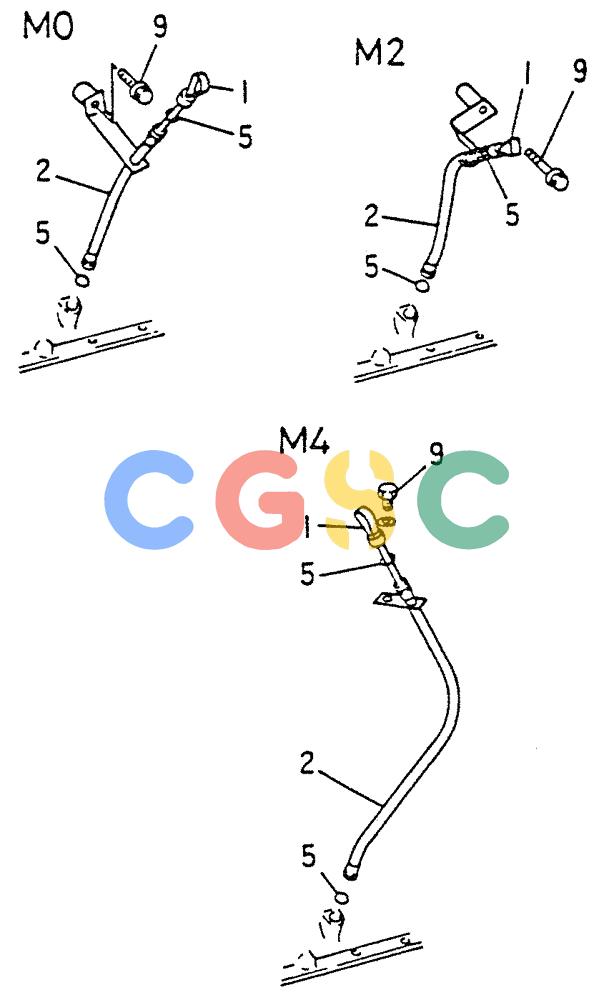

神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINES - K907D & K907LC EXCAVATORS (1/86-12/06) (01-029) - OIL FILLER & OIL LEVEL GAUGE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
827 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME940027 | [1] | GAUGE,OIL LEVEL(FOR M0,M2 ONLY) | |
| 1. | VAME940035 | [1] | GAGE, OIL GAUGE,OIL LEVEL(FOR M4 ONLY) | GAGE, OIL GAUGE,OIL LEVEL(FOR M4 ONLY) |
| 1. | VAME064443 | [1] | DIPSTICK | KOBGAUGE,OIL LEVEL(FOR M4 ONLY)FOR SERVICE ONLY |
| 2. | VAME070190 | [1] | GUIDE,OIL LEVEL(FOR M0 ONLY) | |
| 2. | VAME047292 | [1] | GUIDE,OIL LEVEL(FOR M2 ONLY) | |
| 2. | VAME070257 | [1] | GUIDE,OIL LEVEL(FOR M4 ONLY) | |
| 5. | VAMF520005 | [2] | O-RING | KOBO-RING 10 Superseded by part number: 132399A1 |
| 9. | VAMF140234 | [1] | SPECIAL BOLT | KOBBOLT,FLANGE 8X45(FOR M0 ONLY) |
| 9. | VAMF140238 | [1] | SCREW | KOBBOLT,FLANGE 8X65(FOR M2 ONLY) Superseded by part number: 134967A1 |
| 9. | VAMH000676 | [1] | SCREW | KOBBOLT 10X20(FOR M4 ONLY) |
| 9. | VAMF450005 | [1] | WASHER | KOBWASHER,PLAIN 10(FOR M4 ONLY) |
