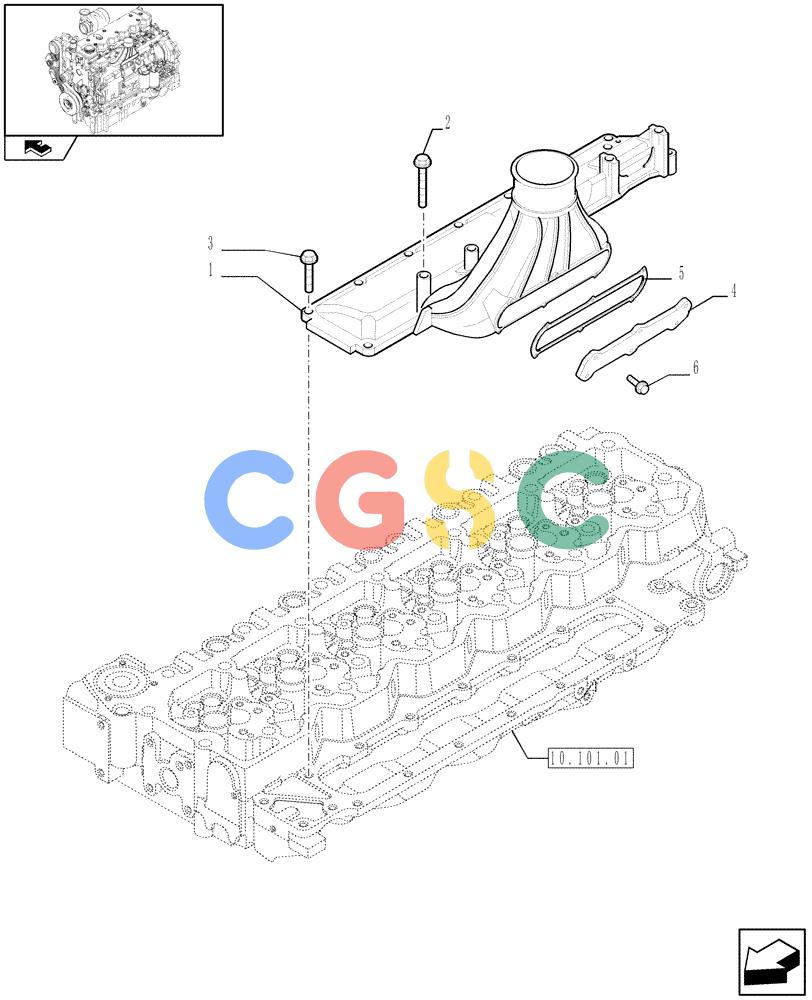

纽荷兰零件查询(F4DFE613J A004) - ENGINE - 84182025 (10.254.01) - INTAKE MANIFOLD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854816 | [1] | INLET MANIFOLD | TOR |
| 2. | 4895294 | [2] | BOLT,Flng, M8 x 1.25 x 80mm, Cl 10.9 | TOR |
| 3. | 4899039 | [8] | BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9 | TOR |
| 4. | 2854700 | [1] | COVER | TOR Superseded by part number: 504114351 |
| 5. | 2854701 | [1] | GASKET,0.8mm Thk | TOR Superseded by part number: 504114491 |
| 6. | 2854702 | [6] | SCREW,Hex Flg, M6 x 20mm | TOR Superseded by part number: 16585870 |
