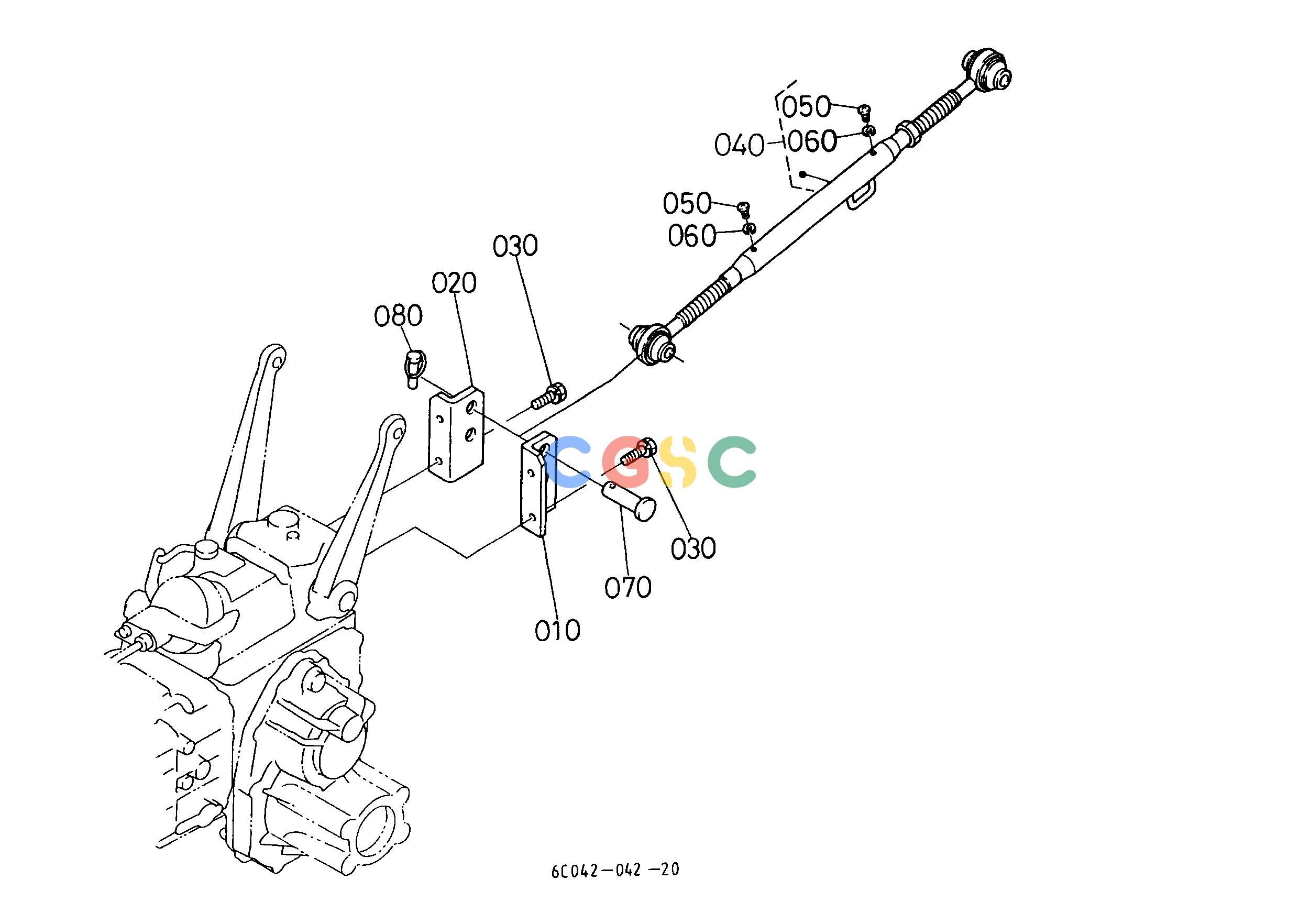

久保田零件查询K12000 TOP LINK HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
215 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04065190
|
[1] |
BRACKET(TOP LINK LH)
|
1.4080(lbs); 0.640
|
| 020. |
6C04065160
|
[1] |
BRACKET(TOP LINK RH)
|
1.4300(lbs); 0.650
|
| 030. |
0112351230
|
[4] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 040. |
6C04065400
|
[1] |
ASSY LINK,TOP
|
4.7520(lbs); 2.160
|
| 050. |
0301450608
|
[2] |
SCREW,PAN HEAD(PHILL
|
0.0044(lbs); 0.002
|
| 060. |
0451250060
|
[2] |
WASHER,SPRING LOCK
|
0.0022(lbs); 0.001
|
| 070. |
3115071360
|
[2] |
PIN,CLEVIS
|
0.3652(lbs); 0.166
|
| 080. |
3415037640
|
[2] |
PIN,SET
|
0.1320(lbs); 0.060
|
