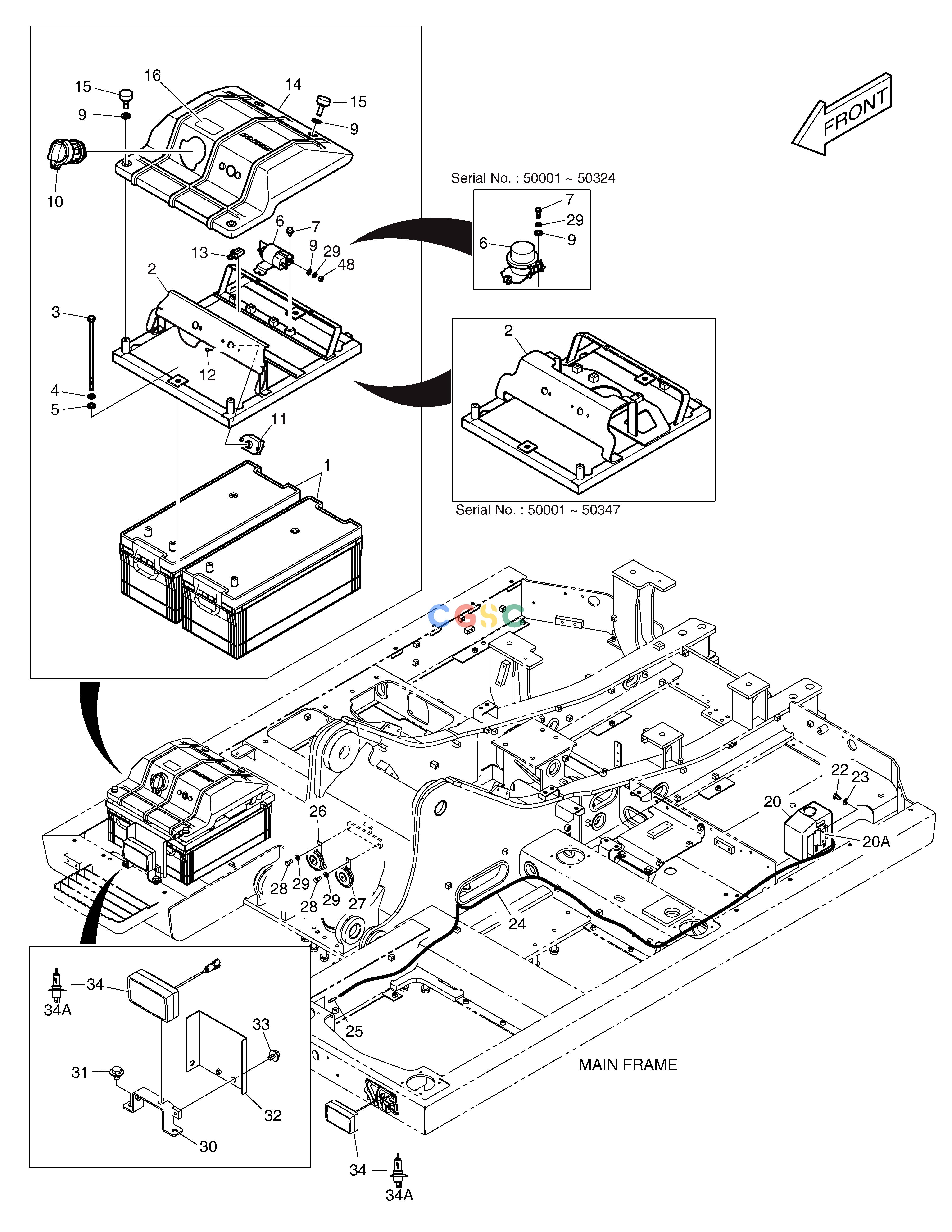

斗山零件查询ELECTRIC PARTS - RELATED DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
179 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-00857
|
[-] |
|
|
| 1. |
2506-6008
|
[2] |
BATTERY
|
|
| 10. |
K1057605
|
[1] |
|
|
| 11. |
300708-00016
|
[1] |
|
|
| 12. |
K1056613
|
[2] |
SCREW
|
|
| 13. |
2527-1023A
|
[1] |
LINK,FUSIBLE
|
|
| 14. |
110508-04857A
|
[1] |
|
|
| 15. |
K1018595
|
[4] |
BOLT,KNOB
|
|
| 16. |
600105-00002
|
[1] |
|
|
| 2. |
110406-02802
|
[1] |
|
|
| 2. |
110406-01498
|
[1] |
|
|
| 20. |
K1054553
|
[1] |
TANK,WASHER
|
|
| 20A. |
K9009874
|
[1] |
. MOTOR,RESERVE TANK
|
|
| 22. |
S0504453
|
[2] |
BOLT
|
|
| 23. |
S5102303
|
[2] |
. WASHER
|
|
| 24. |
4185-1777
|
[1] |
HOSE;WATER
|
|
| 25. |
2415-1018
|
[1] |
ADAPTER
|
|
| 26. |
300726-00002
|
[1] |
HORN,HIGH
|
|
| 27. |
300726-00003
|
[1] |
HORN,LOW
|
|
| 28. |
S0508666
|
[2] |
BOLT
|
|
| 29. |
S5102503
|
[4] |
. WASHER
|
|
| 3. |
DS0001075
|
[2] |
BOLT
|
|
| 30. |
195-02622C
|
[1] |
BRACKET
|
|
| 31. |
DS0025019
|
[2] |
BOLT
|
|
| 32. |
621-02643C
|
[1] |
PLATE
|
|
| 33. |
DS0025013
|
[2] |
BOLT
|
|
| 34. |
K1055454
|
[2] |
|
|
| 34A. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 4. |
S5102603
|
[2] |
. WASHER
|
|
| 48. |
S4012533
|
[1] |
NUT
|
|
| 5. |
S5010613
|
[2] |
WASHER
|
|
| 6. |
2544-9024
|
[1] |
RELAY;BATTERY
|
|
| 6. |
301202-00153
|
[1] |
RELAY,BATTERY
|
|
| 7. |
S0509053
|
[2] |
. BOLT
|
|
| 7. |
DS0025044
|
[2] |
BOLT
|
|
| 9. |
S5010513
|
[6] |
WASHER
|
|
