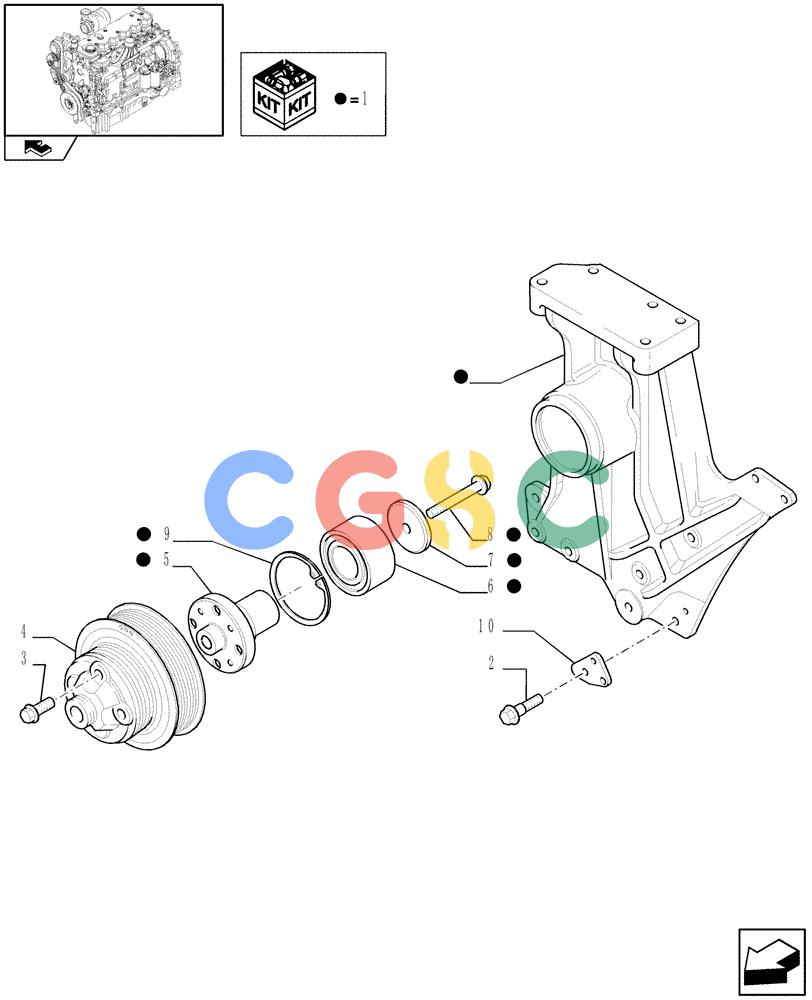

纽荷兰零件查询(F4DFE613J A004) - ENGINE - 84182025 (10.414.01) - FAN DRIVE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
650 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854854 | [1] | SUPPORT | TORASSY |
| 2. | 4899053 | [5] | SCREW,Hex Flg, M8 x 45 | TOR |
| 2. | 4895608 | [3] | SCREW | TOR Superseded by part number: 16587525 |
| 3. | 87698836 | [4] | BOLT,M10 x 25mm, Full Thd, Cl 10.9 | GI |
| 4. | 2859228 | [1] | PULLEY,138mm OD | TOR |
| 5. | 4892426 | [1] | HUB | TOR |
| 6. | 4892732 | [1] | BALL BEARING,34mm ID x 64mm OD x 37mm W | TOR |
| 7. | 4890732 | [1] | RETAINER,11.50mm ID x 52mm OD x 7mm | TOR |
| 8. | 4893228 | [1] | BOLT,Flng, M10 x 1.5 x 70mm, Cl 10.9 | TOR |
| 9. | 4890698 | [1] | SNAP RING,M64, Int | TOR Superseded by part number: 2852171 |
| 10. | 2854856 | [1] | SPACER | TOR |
