HK50628
|
[1] |
ATTACHMENT
|
ATT

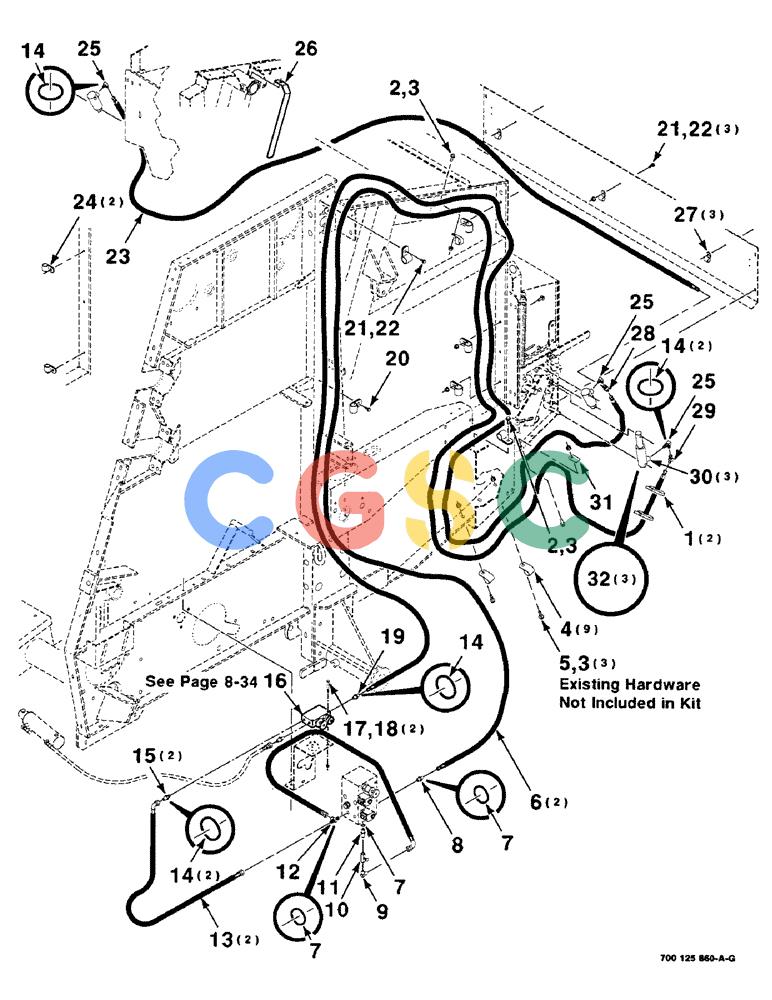

MESH WRAP KIT COMPLETE (S.N. CFH0084501 thru CFH0084545)
|
| . . |
HK50902
|
[1] |
MESH WRAP KIT COMPLETE (S.N. CFH0084546 and later)
|
|
| 1. |
L18337
|
[2] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 2. |
121-226
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 3. |
231-5146
|
[5] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 4. |
515-23254
|
[9] |
CLAMP,1", Insul, 3/8" Bolt
|
CAS
Hose 1", Insul, 3/8" Bolt Superseded by part number: 9827902, 72187281
|
| 5. |
121-237
|
[3] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 6. |
700711008
|
[2] |
HYDRAULIC HOSE,6.35 mm ID x 6600.00 mm, SAE 100R1
|
CAS
6.35 mm ID x 6600.00 mm, SAE 100R1
|
| 7. |
738468
|
[3] |
O-RING
|
IH
|
| 8. |
700707841
|
[1] |
HYD CONNECTOR
|
CAS
CONNECTOR - hydraulic (Includes item 7) Superseded by part number: 139398
|
| 9. |
218-483
|
[1] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
|
CAS
90 DEGREES Superseded by part number: 578384
|
| 10. |
700711345
|
[1] |
VALVE
|
CAS
|
| 11. |
218-443
|
[1] |
HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
|
CAS
CONNECTOR Superseded by part number: 9706918
|
| 12. |
218-5243
|
[1] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Hydraulic (Includes item 7) 9/16"-18, 37º x 9/16"-18, O-Ring Run Superseded by part number: 86513020
|
| 13. |
7892029
|
[2] |
HOSE
|
CAS
- hydraulic
|
| 14. |
237-6004
|
[6] |
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
|
CAS
4-1, 90 Duro, .351" ID x .072" Thk Superseded by part number: 165202, 72186131
|
| 15. |
218-5352
|
[2] |
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring
|
CAS
CONNECTOR (Includes item 14) Superseded by part number: 84384
|
| 16. |
700711967
|
[1] |
VALVE
|
CAS
ASSEMBLY - control
|
| 17. |
413-428
|
[2] |
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
|
CAS
.25 X 1.75 UNC GR5 YZD Superseded by part number: 280164
|
| 18. |
231-5144
|
[2] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
| 19. |
218-5053
|
[1] |
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
|
CAS
CONNECTOR, HYD, (Incl. item 14) 7/16"-20, 37º x 7/16"-20, O-Ring Superseded by part number: 265235
|
| 20. |
172463
|
[1] |
SELF-TAP SCREW,Hex Hd, 5/16" x 1"
|
CAS
5/16-18 X 3/4 HWHTCTS
|
| 21. |
121-115
|
[4] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 22. |
231-5145
|
[4] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 23. |
700707735
|
[1] |
FLEXIBLE HOSE
|
CAS
HOSE - hydraulic
|
| 24. |
515-25127
|
[2] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Line 1/2", Insul, 1/2" Bolt Superseded by part number: 86632595
|
| 25. |
7792500
|
[3] |
ELBOW
|
CAS
90 DEGREES (Includes item 14) Superseded by part number: 165202, 216773
|
| 26. |
700130845
|
[1] |
GUIDE
|
HFI
|
| 27. |
515-23190
|
[3] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Hose 3/4", Insul, 3/8" Bolt Superseded by part number: 86624005
|
| 28. |
700701355
|
[1] |
3 WAY CONNECTION
|
CAS
TEE - hydraulic Superseded by part number: 86513653
|
| 29. |
700711969
|
[1] |
ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw
|
CAS
45 DEGREES
|
| 30. |
700710874
|
[3] |
CYLINDER
|
CAS
- hydraulic
|
| 31. |
489898
|
[1] |
BRACKET
|
HFI
|
| 32. |
700710941
|
[3] |
SEAL KIT
|
CAS
KIT - seal
|
