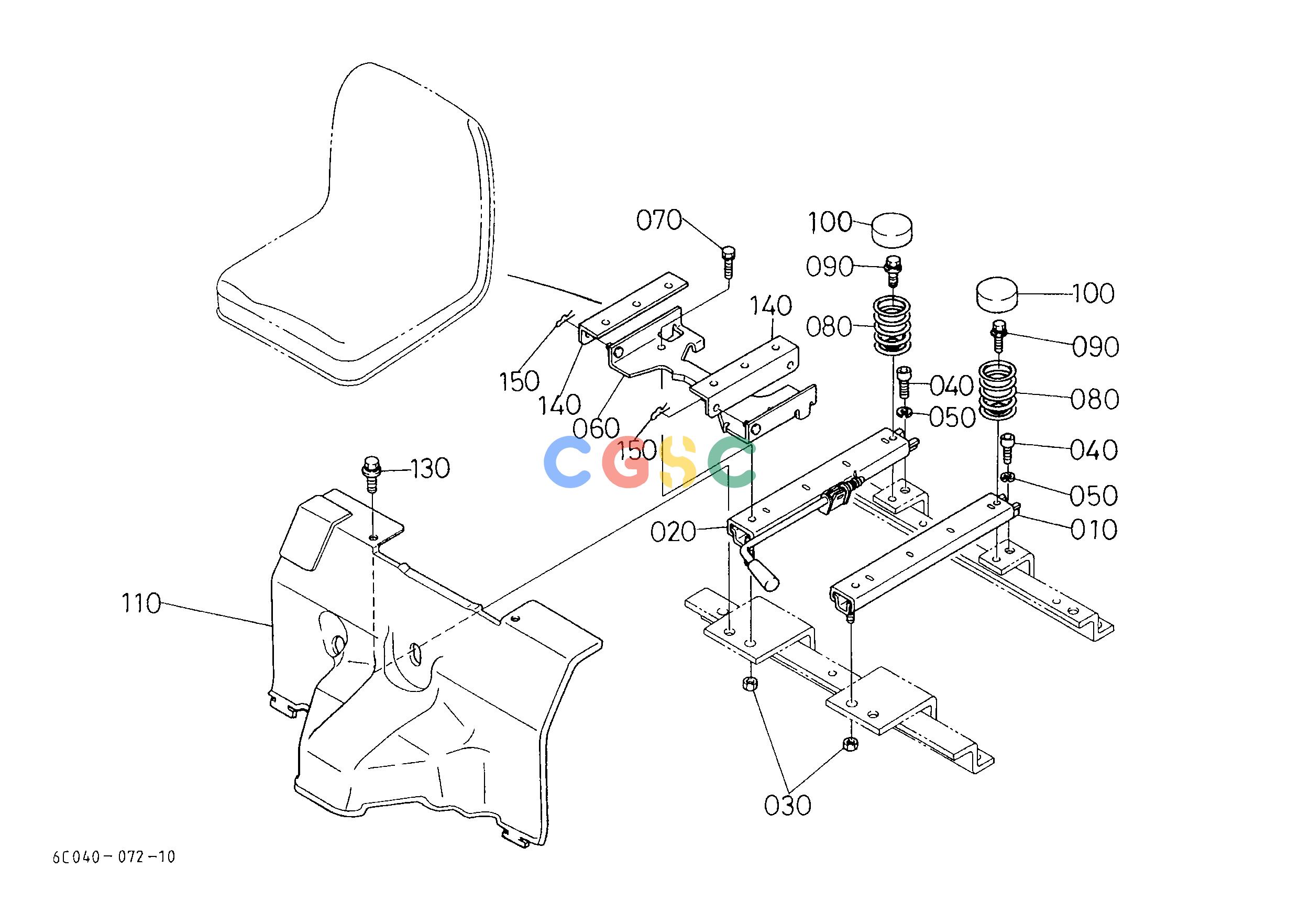

久保田零件查询M21700 SEAT SUPPORT HOOD/BONNETEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
200 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04045910
|
[1] |
ADJUSTER,SEAT LH
|
1.6060(lbs); 0.730
|
| 020. |
6C04045920
|
[1] |
ADJUSTER,SEAT RH
|
2.0020(lbs); 0.910
|
| 030. |
0213150100
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 040. |
0131110820
|
[2] |
BOLT,SOCKET HEAD
|
0.0264(lbs); 0.012
|
| 050. |
0451250080
|
[2] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 060. |
6C04045950
|
[1] |
STAY,SEAT RAIL
|
1.2100(lbs); 0.550
|
| 060. |
6C04045954
|
[1] |
STAY,SEAT RAIL
|
1.2100(lbs); 0.550
|
| 070. |
0112350816
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 080. |
6C04045990
|
[2] |
SPRING,SEAT
|
0.4400(lbs); 0.200
|
| 090. |
0112750830
|
[2] |
BOLT,W SEMS(LARGE WASHER)
|
0.0506(lbs); 0.023
|
| 100. |
6630152820
|
[2] |
CAP,SPRING
|
0.0880(lbs); 0.040
|
| 110. |
6C04051370
|
[1] |
COVER,SEAT UNDER
|
0.8360(lbs); 0.380
|
| 130. |
0112560816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 130. |
0112550820
|
[2] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 140. |
6C04045960
|
[2] |
STAY,SEAT
|
0.3300(lbs); 0.150
|
| 140. |
6C04045962
|
[2] |
STAY,SEAT
|
0.5720(lbs); 0.260
|
| 150. |
0552550800
|
[2] |
SNAP PIN
|
0.0022(lbs); 0.001
|
