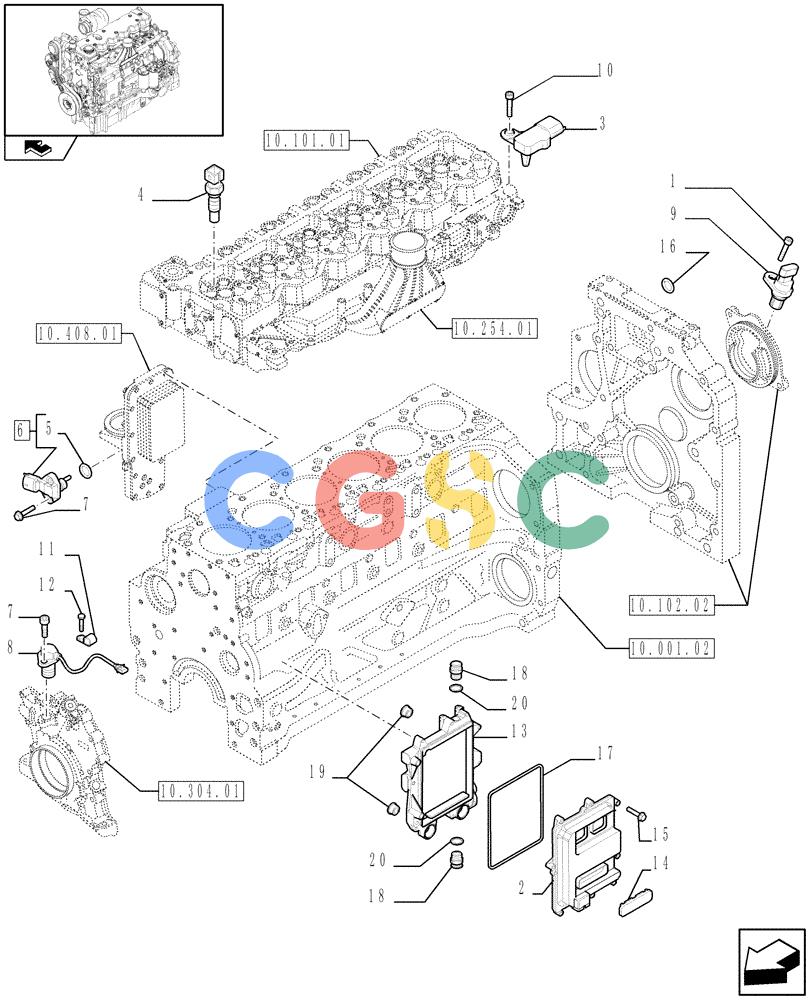

纽荷兰零件查询(F4DFE613J A004) - ENGINE - 84182025 (55.440.01) - ELECTRONIC INJECTION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
446 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2853616 | [1] | HEX SOC SCREW | TOR |
| 2. | 2854594 | [1] | ECU | TOR |
| 2. | 2854594R | [1] | REMAN-MODULE | MKTReman for New PN 2854594 |
| 2. | 2854594C | [1] | CORE-MODULE | MKTReturn Number |
| 3. | 2852821 | [1] | SENSOR | TORECM; Boost/Air Temperature , 4 wire Superseded by part number: 504372225 |
| 4. | 4897224 | [1] | SENSOR | TORTemperature |
| 5. | 4895477 | [1] | O-RING,2.62mm Thk x 13.94mm ID | TOR |
| 6. | 2859674 | [1] | SENSOR | TORASSY Superseded by part number: |
| 7. | 4899110 | [3] | SCREW,Hex Flg, M6 x 1 x 20 | TOR |
| 8. | 2853552 | [1] | SENSOR | TORCrankshaft Speed |
| 9. | 4897242 | [1] | SENSOR | TOR |
| 10. | 4895817 | [1] | BOLT,Flng, M6 x 1 x 20mm, Cl 10.9 | TOR |
| 11. | 2852819 | [2] | CLAMP | TOR Superseded by part number: 17316190 |
| 12. | 2852100 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 16mm | TOR Superseded by part number: 16586225 |
| 13. | 2854596 | [1] | BRACKET | TOR Superseded by part number: |
| 14. | 2852825 | [1] | PLUG | TOR |
| 15. | 2854083 | [8] | BOLT,Flng, M6 x 1 x 30mm | TORM6 x 30 Superseded by part number: 16586025 |
| 16. | 4897302 | [1] | CABLE CLIP | TOR |
| 17. | 2854079 | [1] | GASKET,6.45mm Thk | SM |
| 18. | 4890964 | [2] | FITTING,M12 x 1.5 | TOR |
| 19. | 98498817 | [6] | ISOLATOR | TOR Superseded by part number: 2855150 |
| 20. | 2854292 | [2] | SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk | TOR Superseded by part number: 10298460 |
