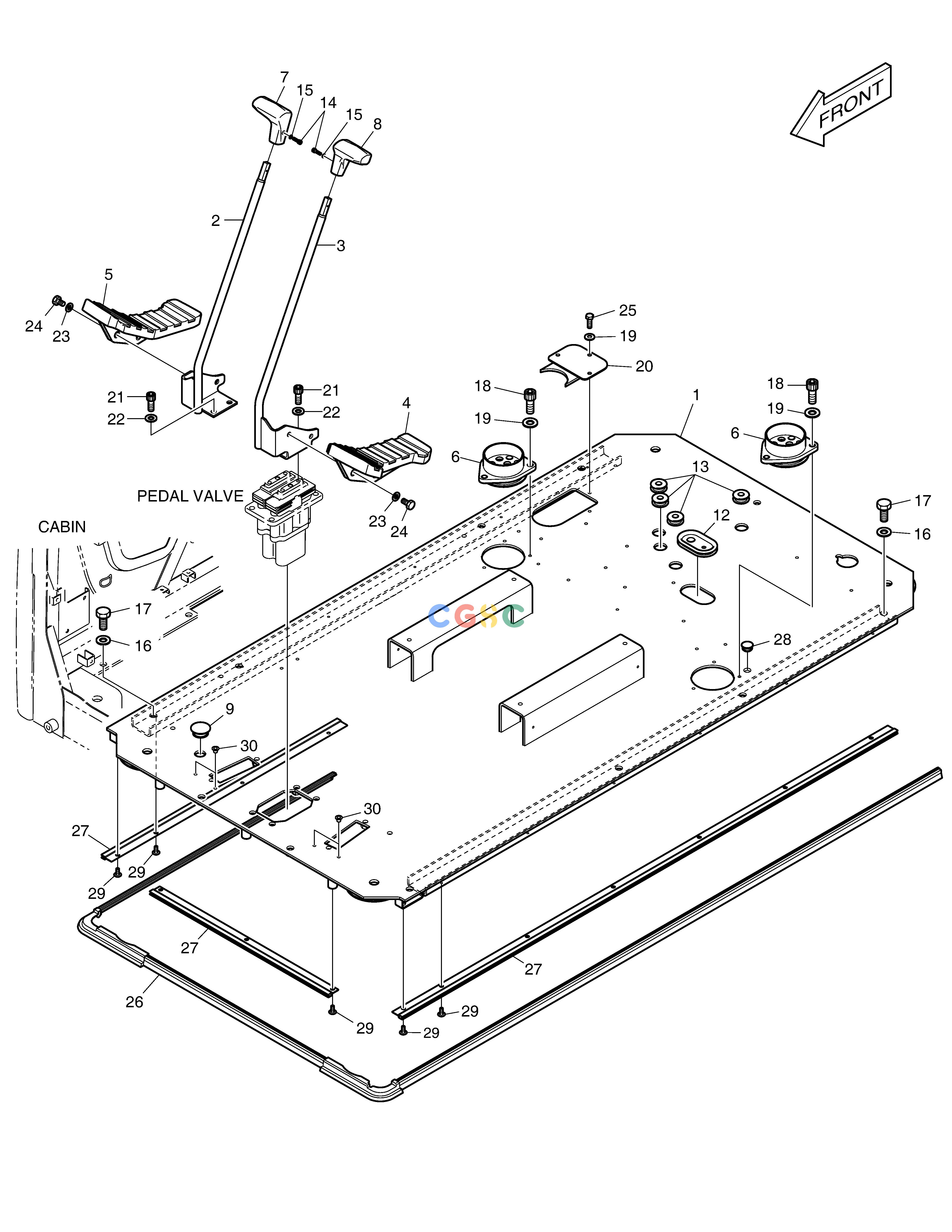

斗山零件查询FLOOR PLATE DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
789 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
250106-00120G
|
[-] |
|
|
| 1. |
250106-00122N
|
[1] |
|
|
| 12. |
160-00071
|
[1] |
BUSHING
|
|
| 13. |
160-00072
|
[4] |
BUSHING
|
|
| 14. |
S2201766
|
[2] |
BOLT
|
|
| 15. |
S5000113
|
[2] |
WASHER
|
|
| 16. |
2114-1898D17
|
[11] |
WASHER
|
|
| 17. |
2120-2166D35
|
[11] |
BOLT M12X1.75X35
|
|
| 18. |
S2208866
|
[6] |
BOLT
|
|
| 19. |
2114-1898D14
|
[9] |
WASHER
|
|
| 2. |
220105-00035A
|
[1] |
PEDAL,TRAVEL;BKT(R.H)
|
|
| 20. |
110420-00064
|
[1] |
|
|
| 21. |
S2211866
|
[4] |
BOLT
|
|
| 22. |
S5110603
|
[4] |
WASHER
|
|
| 23. |
2114-1898D1
|
[4] |
WASHER
|
|
| 24. |
2120-2166D2
|
[4] |
BOLT
|
|
| 25. |
2120-2166D25
|
[3] |
BOLT
|
|
| 26. |
101588-00027B
|
[1] |
|
|
| 27. |
110922-00323B
|
[1] |
|
|
| 28. |
110910-00324
|
[1] |
|
|
| 29. |
2120-2166D10
|
[14] |
SCREW
|
|
| 3. |
220105-00036A
|
[1] |
PEDAL,TRAVEL;BKT(L.H)
|
|
| 30. |
160-00073A
|
[4] |
CAP
|
|
| 4. |
220105-00028A
|
[1] |
|
|
| 5. |
220105-00029A
|
[1] |
|
|
| 6. |
160-00080B
|
[2] |
BUSHING
|
|
| 7. |
2132-1134B
|
[1] |
GRIP,LEVER(R.H)
|
|
| 8. |
2132-1133B
|
[1] |
GRIP,LEVER(L.H)
|
|
| 9. |
2161-2487
|
[1] |
CAP
|
|
