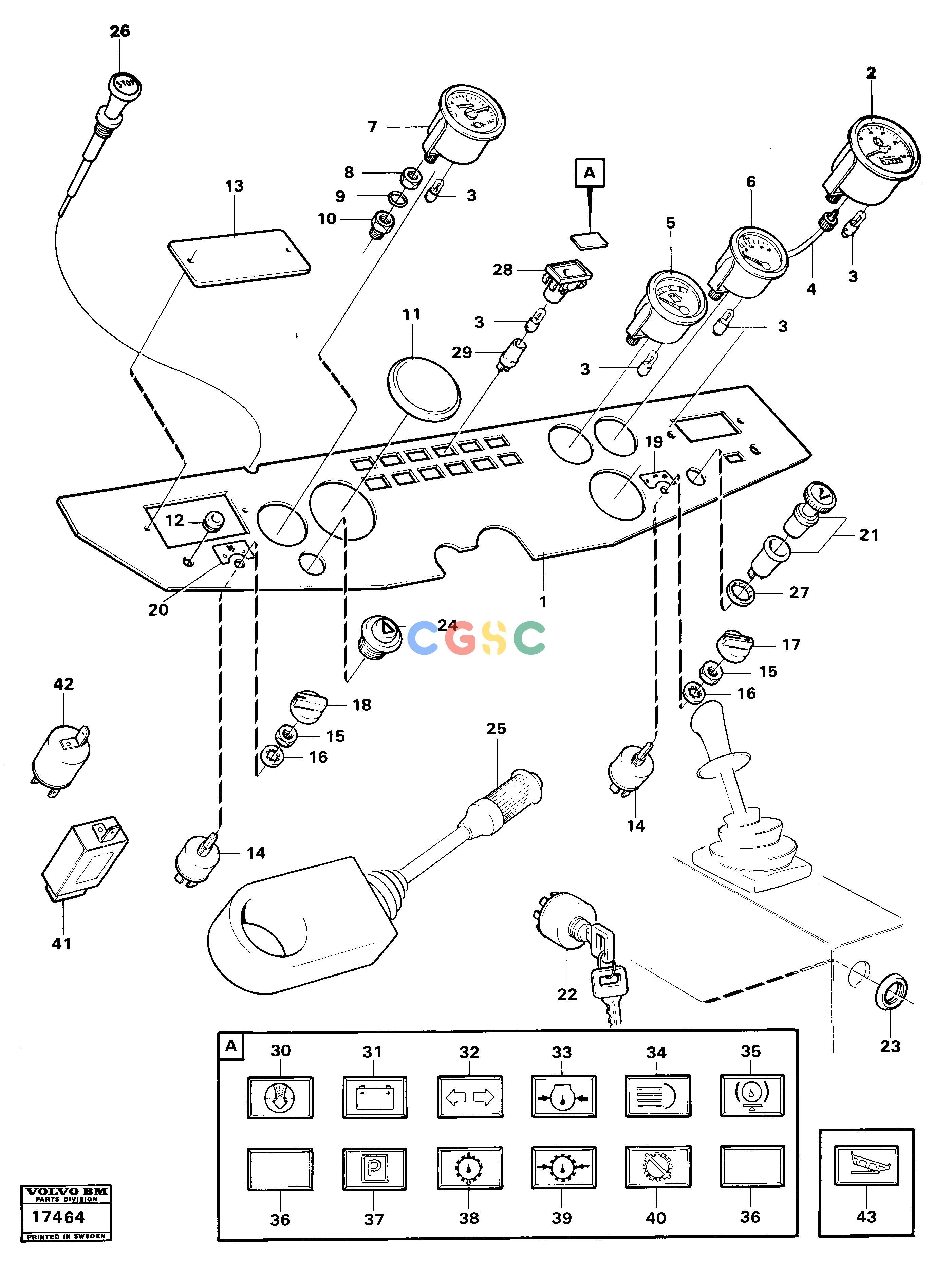

沃尔沃零件查询861 Instrument panel tillv nr 59472 -861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
263 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4785978
|
[1] |
Flexible shaft
|
|
| 5. |
VOE11705366
|
[1] |
Fuel gauge
|
|
| 6. |
VOE4780207
|
[1] |
Temperature gauge
|
|
| 7. |
VOE4803164
|
[1] |
Pressure gauge
|
|
| 8. |
VOE945893
|
[2] |
Hexagon nut
|
|
| 1. |
|
|
Instr Panel
|
SEE GROUP 82
|
| 9. |
VOE1587176
|
[2] |
O-ring
|
|
| 10. |
VOE947996
|
[2] |
Nipple
|
|
| 11. |
VOE4743128
|
[1] |
Cover washer
|
|
| 12. |
VOE941266
|
[2] |
Plug
|
|
| 13. |
|
[2] |
Cover
|
SEE GROUP 82
|
| 14. |
VOE4803160
|
[2] |
Switch
|
|
| 15. |
VOE1212859
|
[2] |
Nut
|
|
| 16. |
VOE13940109
|
[2] |
Lock washer
|
|
| 17. |
VOE1363810
|
[1] |
Knob
|
BELYSN. / LIGHT
|
| 18. |
VOE1307990
|
[1] |
Knob
|
FLÄKT / FAN
|
| |
|
|
Relay panel
|
|
| 19. |
|
[0001] |
Decal
|
SEE GROUP 93
|
| 20. |
|
[0001] |
Decal
|
SEE GROUP 93
|
| 21. |
VOE1503770
|
[0001] |
Cigarette lighter
|
|
| 22. |
VOE1590738
|
[0001] |
Starter switch
|
|
| |
VOE1578121
|
[0001] |
Starter switch
|
|
| |
VOE1581255
|
[0001] |
Key
|
|
| 23. |
VOE1581184
|
[0001] |
Nut
|
|
| 24. |
VOE4787092
|
[0001] |
Wrn Flash Relay
|
VARNINGSBL. / WARNING L.
|
| 25. |
VOE4803452
|
[0001] |
Switch
|
|
| 26. |
|
[0001] |
Stop control
|
SEE GROUP 25
|
| 27. |
VOE13946222
|
[0001] |
Retainer
|
|
| 28. |
VOE4786024
|
[0010] |
Socket
|
|
| |
VOE4786024
|
[0001] |
Socket
|
|
| 2. |
VOE4785955
|
[0001] |
Tachometer
|
|
| 29. |
VOE4786025
|
[0010] |
Bulb socket
|
|
| |
VOE4786025
|
[0001] |
Bulb socket
|
|
| 30. |
VOE4787118
|
[0001] |
Lens
|
LUFTFILTER / AIR FILTER
|
| 31. |
VOE4787119
|
[0001] |
Lens
|
LADDNING / CHARGING
|
| 32. |
VOE4787137
|
[0001] |
Lens
|
BLINKER / TURN SIGNALS
|
| 33. |
VOE4787116
|
[0001] |
Lens
|
OLJETRYCK MOTOR/
|
| |
|
|
None
|
OIL PRESSURE ENGINE
|
| 34. |
VOE4787131
|
[0001] |
Lens
|
HELLJUS / UPPER BEAM
|
| 35. |
VOE4803301
|
[0001] |
Lens
|
BROMSVÄTSKENIVÅ /
|
| |
|
|
None
|
BRAKE FLUID LEVEL
|
| 36. |
VOE4786078
|
[0003] |
Plug
|
|
| 3. |
VOE182055
|
[0014] |
Bulb
|
|
| 37. |
VOE4787127
|
[0001] |
Lens
|
PARK.BROMS/PARKING BRAKE
|
| 38. |
VOE4787122
|
[0001] |
Lens
|
TRANSM. TEMP
|
| 39. |
VOE4787121
|
[0001] |
Lens
|
TRANSM. OLJETRYCK/
|
| |
|
|
None
|
TRANSM. OIL PRESSURE
|
| 40. |
VOE4803527
|
[0001] |
Lens
|
HÖG-LÅG / HIG-LOW
|
| |
VOE182055
|
[0001] |
Bulb
|
|
| 41. |
VOE4803262
|
[0001] |
Flasher unit
|
|
| 42. |
VOE1578629
|
[0001] |
Buzzer
|
|
| 43. |
VOE11062684
|
[0001] |
Lens
|
UPPLYFTAT DUMPERKAR /
|
| |
|
|
None
|
DUMPER BODY UP.
|
| |
|
|
