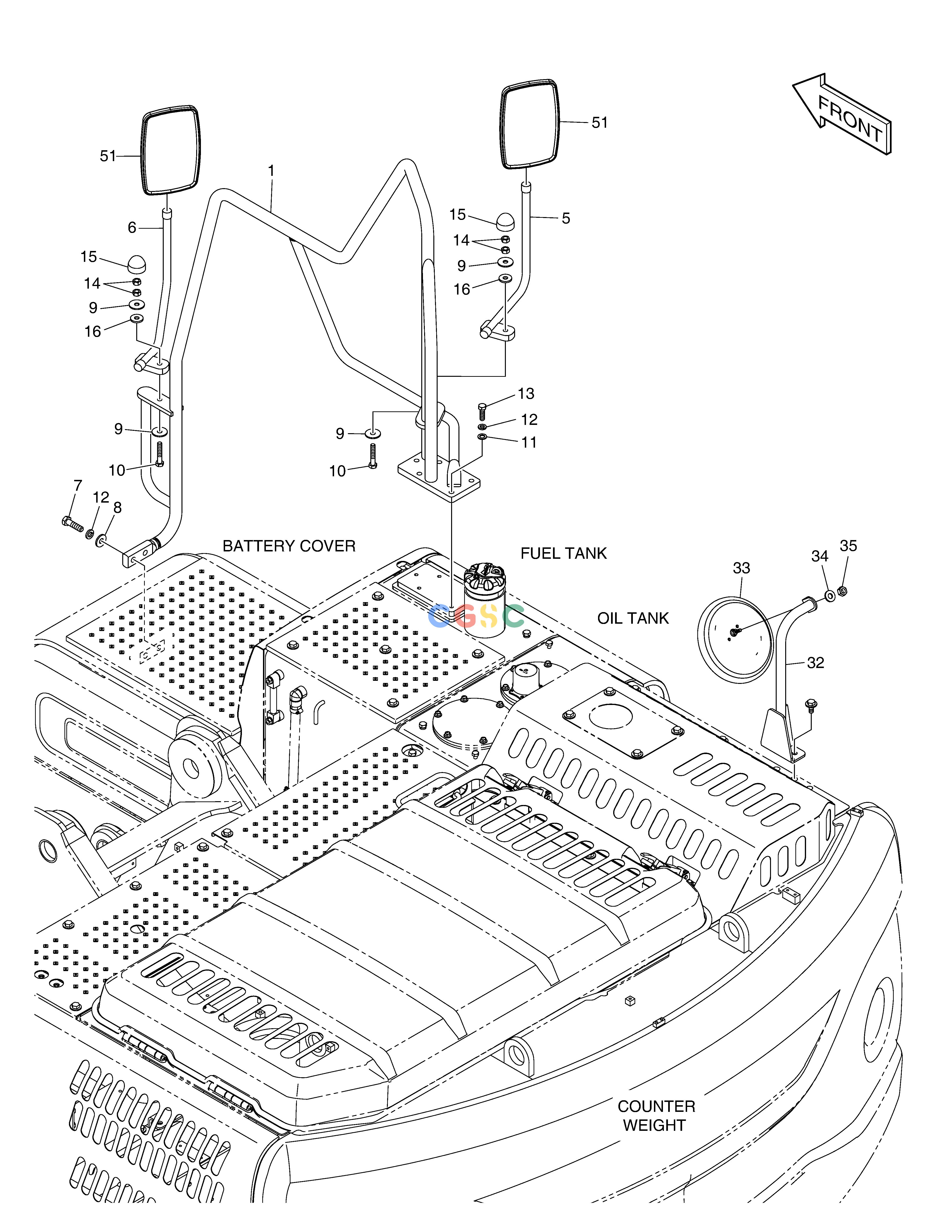

斗山零件查询HANDRAIL DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
198 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
101582-00220
|
[-] |
|
|
| 1. |
101582-00221A
|
[1] |
RAIL,HAND
|
|
| 10. |
S0561066
|
[2] |
BOLT
|
|
| 11. |
S5010713
|
[5] |
WASHER;PLAIN
|
|
| 12. |
S5102703
|
[7] |
WASHER
|
|
| 13. |
S0560566
|
[5] |
BOLT
|
|
| 14. |
S4012733
|
[4] |
NUT
|
|
| 15. |
161-00580
|
[2] |
CAP,RUBBER
|
|
| 16. |
2114-1058D54
|
[2] |
WASHER
|
|
| 32. |
101582-00036
|
[1] |
|
|
| 33. |
110969-00075
|
[1] |
|
|
| 34. |
2114-1898D1
|
[1] |
WASHER
|
|
| 35. |
2121-1311D4
|
[1] |
NUT
|
|
| 5. |
K1038107A
|
[1] |
STAY,MIRROR
|
|
| 51. |
K1040606
|
[2] |
MIRROR,SIDE
|
|
| 6. |
K1038110A
|
[1] |
STAY,MIRROR
|
|
| 7. |
S0560666
|
[2] |
BOLT
|
|
| 8. |
2114-1058D33
|
[2] |
WASHER
|
|
| 9. |
2114-1058D68
|
[4] |
WASHER
|
|
