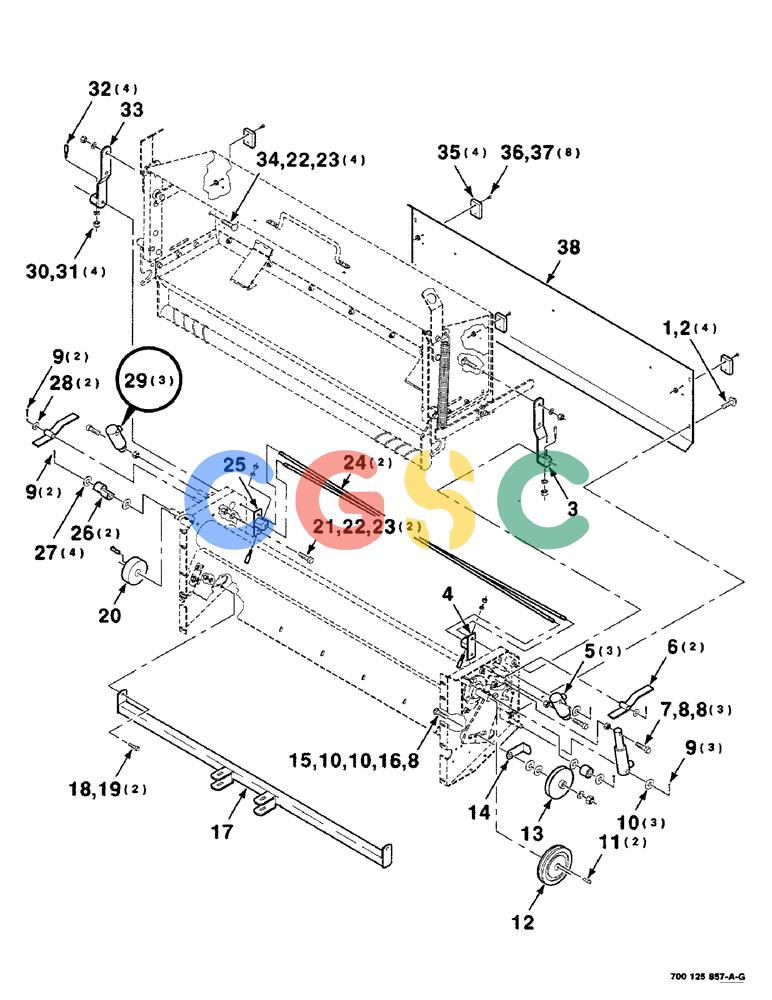

| 1. |
121-115
|
[4] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 2. |
231-5145
|
[4] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 3. |
700125752
|
[1] |
HINGE
|
HFI
WA - left
|
| 4. |
700125756
|
[1] |
ADAPTER
|
HFI
WA - left
|
| 5. |
700710874
|
[3] |
CYLINDER
|
CAS
- hydraulic (Includes item 29)
|
| 6. |
700125750
|
[2] |
LATCH
|
HFI
WA
|
| 7. |
413-836
|
[3] |
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
|
CAS
Superseded by part number: 87975
|
| 8. |
425-108
|
[7] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 9. |
432-816
|
[7] |
COTTER PIN,1/8" x 1"
|
CAS
1/8" x 1" Superseded by part number: 80755
|
| 10. |
705541
|
[5] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 11. |
Q3914
|
[2] |
KEY,Gib, 1/4" Sq x 1 1/2"
|
IH
1/4 X 1-1/2 GIB KEY
|
| 12. |
700125843
|
[1] |
SHEAVE
|
CAS
|
| 13. |
54833
|
[1] |
FRONT IDLER
|
CAS
IDLER - V
|
| 14. |
700125855
|
[1] |
GUIDE
|
HFI
- belt
|
| 15. |
433-832
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
|
CAS
1/2-13 X 2 RHSNB Superseded by part number: 280185
|
| 16. |
80679
|
[1] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 17. |
700125866
|
[1] |
SUPPORT
|
HFI
WA
|
| 18. |
413-612
|
[2] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 72187204, 86500692
|
| 19. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 20. |
700125830
|
[1] |
DRUM
|
CAS
- brake
|
| 21. |
413-616
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 22. |
492-11038
|
[6] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 23. |
425-106
|
[6] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 24. |
700125913
|
[2] |
SPRING
|
CAS
- torsion
|
| 25. |
700125759
|
[1] |
ADAPTER
|
HFI
WA - right
|
| 26. |
700710931
|
[2] |
BUSHING
|
CAS
|
| 27. |
396-21066
|
[4] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 28. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 29. |
700710941
|
[3] |
SEAL KIT
|
CAS
KIT - seal
|
| 30. |
492-11025
|
[4] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 31. |
425-104
|
[4] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
| 32. |
700125760
|
[4] |
WEDGE
|
CAS
|
| 33. |
700125755
|
[1] |
HINGE
|
HFI
WA - right
|
| 34. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 35. |
700710930
|
[4] |
PAD
|
CAS
|
| 36. |
440-12512
|
[8] |
SCREW,Cross Pan Hd, 1/4"-20 x 3/4"
|
CAS
GR 2 Cross Pan Hd, 1/4"-20 x 3/4" Superseded by part number: 86511932
|
| 37. |
231-5144
|
[8] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
| 38. |
700125865
|
[1] |
SHIELD
|
HFI
Superseded by part number: 700131982
|
| . . |
700131986
|
[1] |
SHIELD
|
HFI
Superseded by part number: 700131982
|
