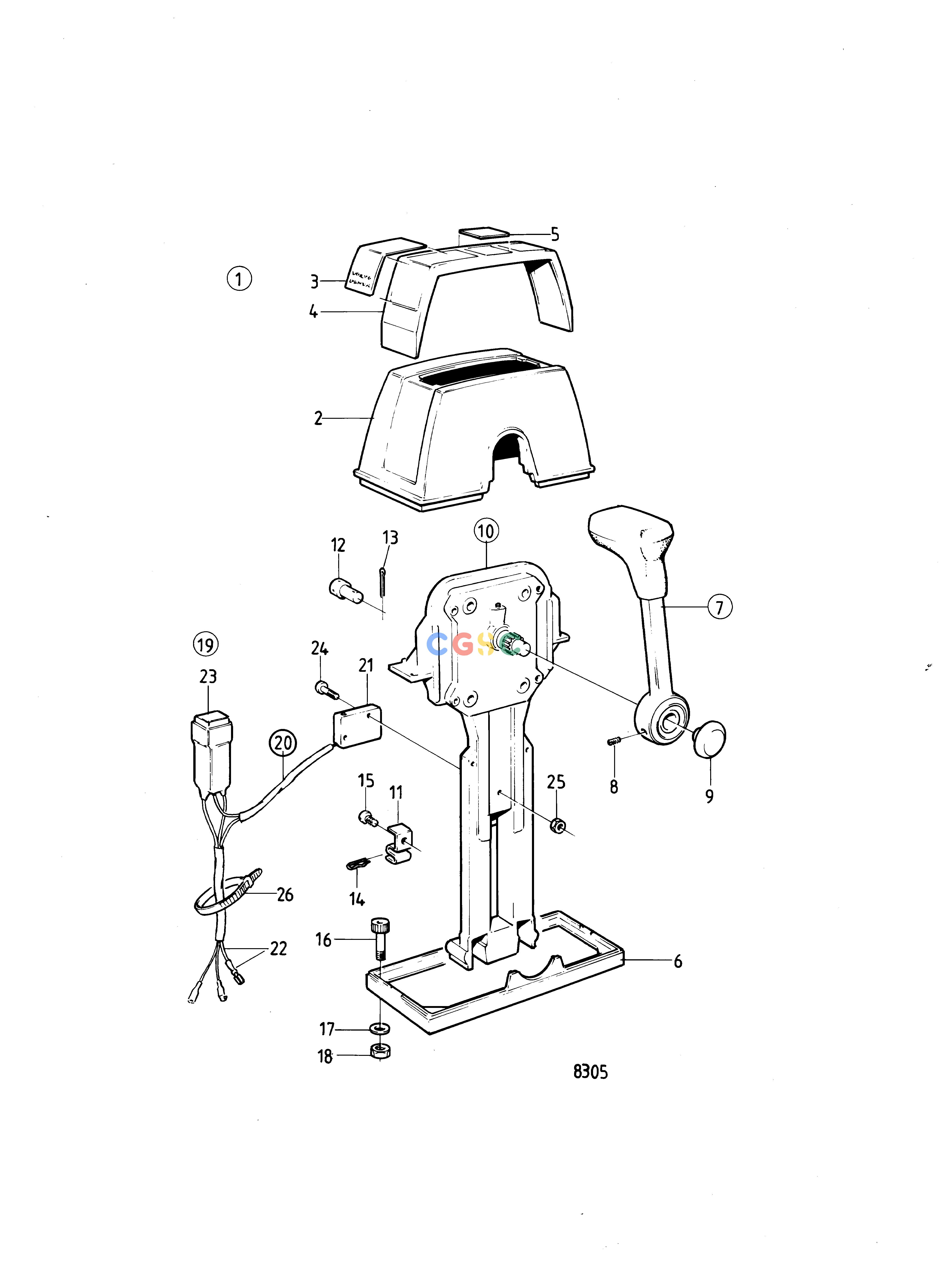

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Miscellaneous EquipmentControl for top Installation: 853169EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
637 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
853169
|
[1] |
Mounting kit
|
Twin
|
| 2. |
851885
|
[1] |
Cover
|
|
| 3. |
851895
|
[1] |
Decal
|
|
| 4. |
|
|
|
|
| 5. |
851897
|
[1] |
Decal
|
|
| 6. |
839479
|
[1] |
Plate
|
|
| 7. |
852347
|
[2] |
Hand lever
|
|
| 8. |
963678
|
[1] |
Hex. socket screw
|
|
| 9. |
853004
|
[2] |
Push button
|
|
| 10. |
851600
|
[2] |
Control
|
|
| 11. |
853423
|
[1] |
Retainer
|
|
| 12. |
839638
|
[2] |
Cube
|
|
| 13. |
17253
|
[2] |
Split pin
|
|
| 14. |
852924
|
[1] |
Locking pin
|
|
| 15. |
839664
|
[2] |
Screw
|
|
| 16. |
947671
|
[4] |
Hex. socket screw
|
|
| 17. |
960138
|
[4] |
Washer
|
|
| 18. |
955780
|
[4] |
Hexagon nut
|
|
| 19. |
839641
|
[2] |
Neutral position con
|
|
| 20. |
839619
|
[1] |
Cable kit
|
|
| 21. |
850200
|
[1] |
Toggle switch
|
|
| 22. |
|
|
|
See group 3
|
| 23. |
1501832
|
[1] |
Relay
|
|
| 24. |
946177
|
[2] |
Cross recessed screw
|
|
| 25. |
947536
|
[2] |
Hexagon nut
|
|
| 26. |
948210
|
[1] |
Cable tie
|
|
