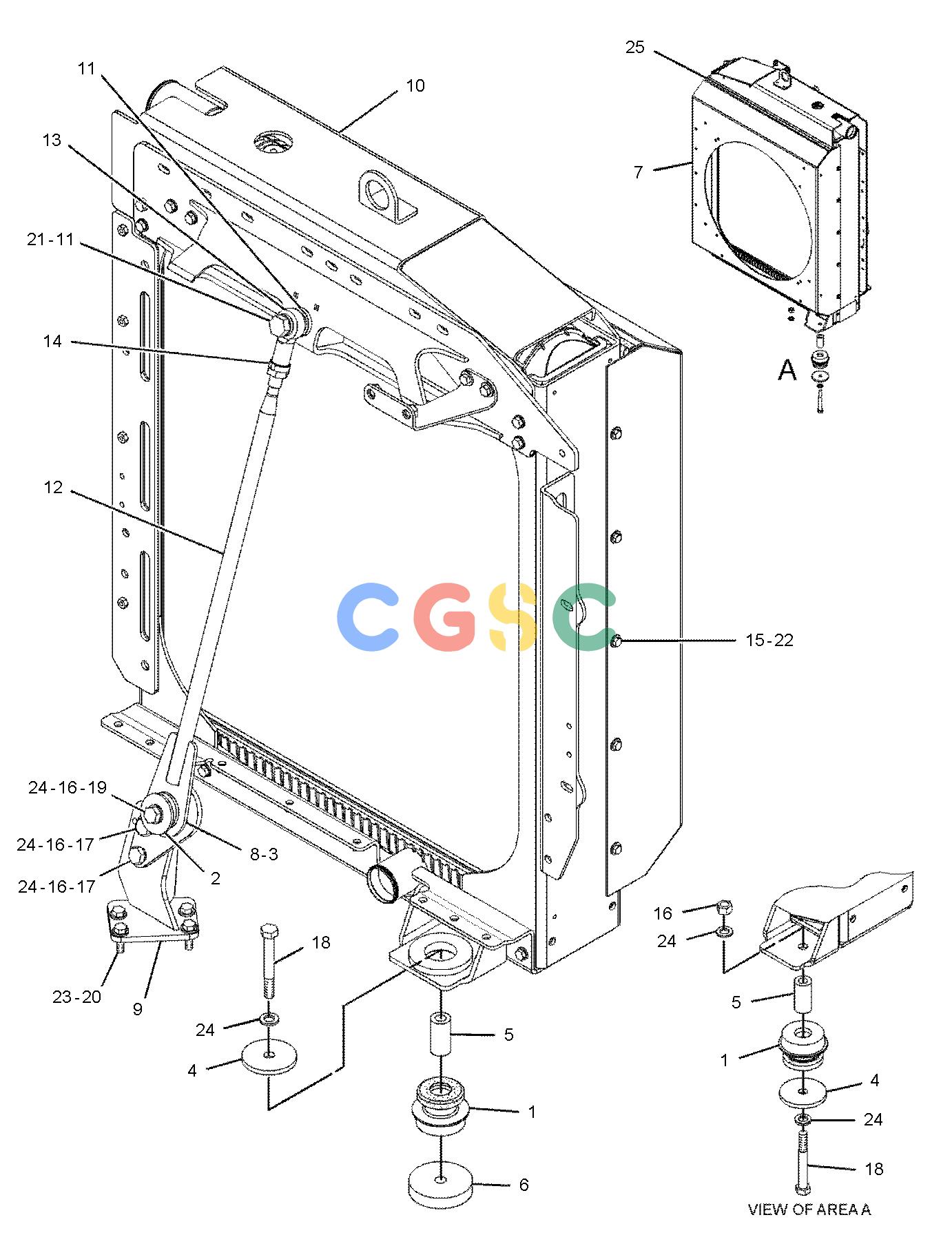

卡特零件查询（725） 244-5812: RADIATOR GP
广数供应链运营团队, 14 02月, 2025，浏览：
430 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-9915 | [2] | MOUNT AS | |
| 2. | 7U-8704 | [1] | WASHER(17X65X5-MM THK) | |
| 3. | 8G-0841 | [1] | MOUNT AS | |
| 4. | 9W-9952 | [2] | WASHER(16.75X86X8-MM THK) | |
| 5. | 9W-9953 | [2] | SLEEVE | |
| 6. | 173-3622 | [1] | WASHER(18X100X20-MM THK) | |
| 7. | 245-2068 | [1] | SHROUD AS-FAN | |
| 8. | 246-6481 | [1] | PLATE | |
| 9. | 249-8553 | [1] | BRACKET AS | |
| 10. | 251-5985Y | [1] | RADIATOR GP | |
| 11. | 273-2476 | [2] | SPACER(20.1X35X6-MM THK) | |
| 12. | 254-0507 | [1] | BAR AS | |
| 13. | 254-3355 | [1] | ROD END | |
| 14. | 200-3255M | [1] | NUT(M20X1.5-THD) | |
| 15. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 16. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 17. | 8T-4193M | [2] | BOLT(M16X2X50-MM) | |
| 18. | 8T-4174M | [2] | BOLT(M16X2X120-MM) | |
| 19. | 8T-4175M | [1] | BOLT(M16X2X90-MM) | |
| 20. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 21. | 8T-4187M | [1] | BOLT(M20X2.5X80-MM) | |
| 22. | 8T-4189M | [10] | BOLT(M8X1.25X20-MM) | |
| 23. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 24. | 9X-8257 | [9] | WASHER(17.5X30X3.5-MM THK) | |
| 25. | 201-4066J | | SEAL(9-DM) | |
| | J | | ORDER BY THE DECIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
