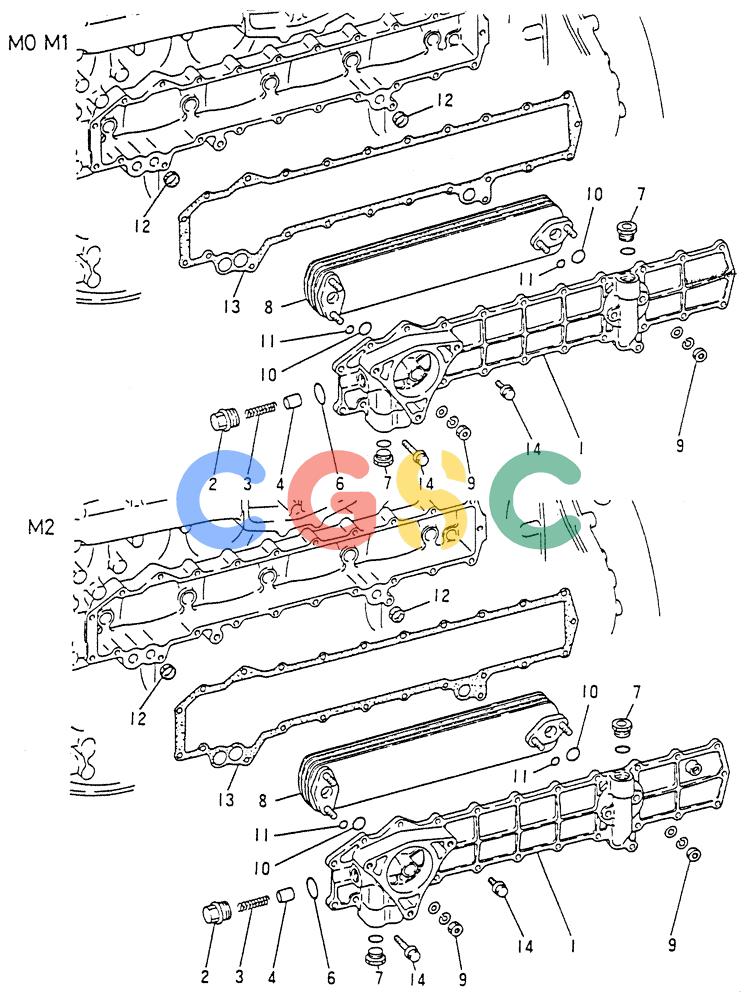

神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINES - K907D & K907LC EXCAVATORS (1/86-12/06) (02-013) - OIL COOLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
540 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-11. | VAME034570 | [1] | OIL COOLER | KOBOIL COOLER ASSY(FOR M0 ONLY) Superseded by part number: VAME070018 |
| 1-11. | VAME034571 | [1] | OIL COOLER ASSY(FOR M1 ONLY) | |
| 1-7. | VAME037691 | [1] | OIL COOLER COVER ASSY(FOR M2 ONLY) | |
| 1-7. | VAME034573 | [1] | COVER | KOBOIL COOLER COVER ASSY(FOR M0,M1 ONLY) |
| 1-7. | VAME037692 | [1] | OIL COOLER COVER ASSY(FOR M2 ONLY) | |
| 1. | VAME034572 | [1] | COVER | KOBCOVER,O/C(FOR M0,M1 ONLY) |
| 1. | VAME037693 | [1] | COVER,O/C(FOR M2 ONLY) | |
| 2. | VAME034554 | [1] | PLUG | KOBPLUG,BY-PASS/V |
| 3. | VAME034700 | [1] | SPRING | KOBSPRING,BY-PASS/V, Start Year: 01-JAN-84 |
| 3. | VAME034555 | [1] | SPRING SPRING,BY-PASS/V, Years: -01-DEC-83 | SPRING SPRING,BY-PASS/V, Years: -01-DEC-83 |
| 4. | VAME034556 | [1] | VALVE | KOBVALVE,BY-PASS |
| 6. | VAMF520009 | [1] | O-RING | KOBO-RING 14 |
| 7. | VAMH037117 | [3] | PLUG | KOBPLUG |
| 7. | VAMF520012 | [3] | O-RING | KOBO-RING 18 Superseded by part number: MF520012 |
| 8. | VAME034561 | [1] | OIL COOLER FILTER | KOBELEMENT,O/C (3)(FOR M0,M2 ONLY) |
| 8. | VAME034018 | [1] | OIL COOLER FILTER | KOBELEMENT,O/C(4)(FOR M1 ONLY) |
| 9. | VAMF430006 | [4] | NUT | KOBNUT10 Superseded by part number: VAF230510000 |
| 9. | VAMF450406 | [4] | WASHER | KOBWASHER,SPG 10 |
| 9. | VAMF450006 | [4] | NUT | KOBWASHER,PLAIN 10 Superseded by part number: 133247A1 |
| 10. | VAMH035091 | [2] | O-RING | KOBO-RING |
| 11. | VAMH035092 | [4] | O-RING | KOBO-RING Superseded by part number: VA0550700140 |
| 12. | VAMH035094 | [3] | O-RING | KOBO-RING |
| 13. | VAME034031 | [1] | GASKET | KOBGASKET Superseded by part number: 77269118, VAME074293 |
| 14. | VAMF140226 | [23] | SCREW | KOBBOLT,FLANGE 8X22, Start Year: 01-JAN-84 |
| 14. | VAMF244853 | [23] | BOLT | KOBBOLT,W/WSR 8X25, Years: -01-DEC-83 |
