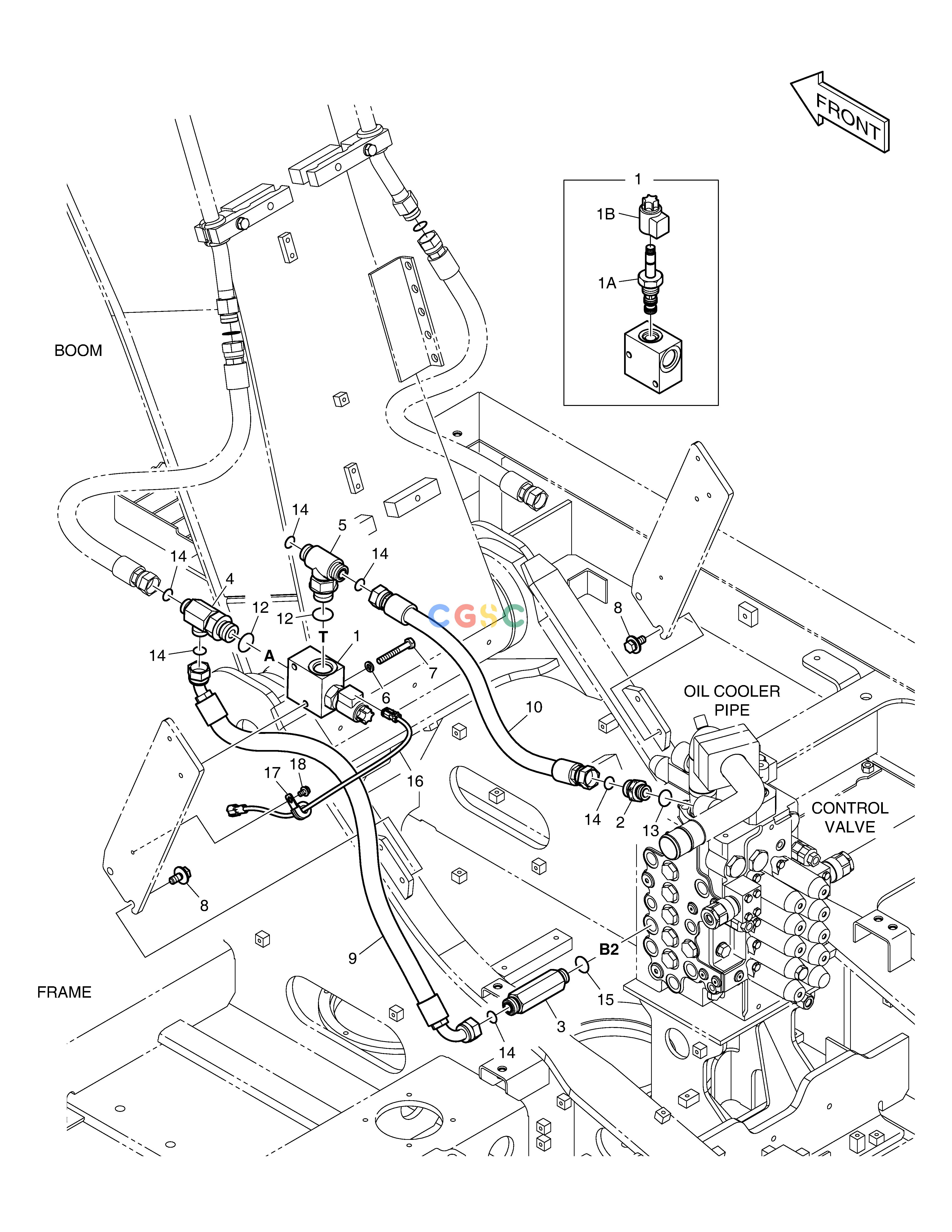

斗山零件查询MAIN PIPING - ONE & TWO WAY DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1009 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05674
|
[-] |
|
|
| 1. |
410127-00233
|
[1] |
|
|
| 10. |
DS20111491
|
[1] |
|
|
| 12. |
S8000291
|
[2] |
O-RING
|
|
| 13. |
S8000231
|
[1] |
O-RING
|
|
| 14. |
S8030121
|
[6] |
O-RING
|
|
| 15. |
S8000241
|
[1] |
O-RING
|
|
| 16. |
310207-01070
|
[1] |
|
|
| 17. |
124-00208D2
|
[1] |
CLAMP
|
|
| 18. |
K1001029
|
[1] |
BOLT
|
|
| 1A. |
410127-00231
|
[1] |
|
|
| 1B. |
300715-00064
|
[1] |
|
|
| 2. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 3. |
2181-4133D22
|
[1] |
ADAPTER PFO,ORS 3/4
|
|
| 4. |
2181-2293D2
|
[1] |
TEE
|
|
| 5. |
DS2418020
|
[1] |
|
|
| 6. |
S5102603
|
[2] |
. WASHER
|
|
| 7. |
S0559066
|
[2] |
BOLT
|
|
| 8. |
DS0025018
|
[4] |
BOLT
|
|
| 9. |
DS2021593
|
[1] |
|
|
