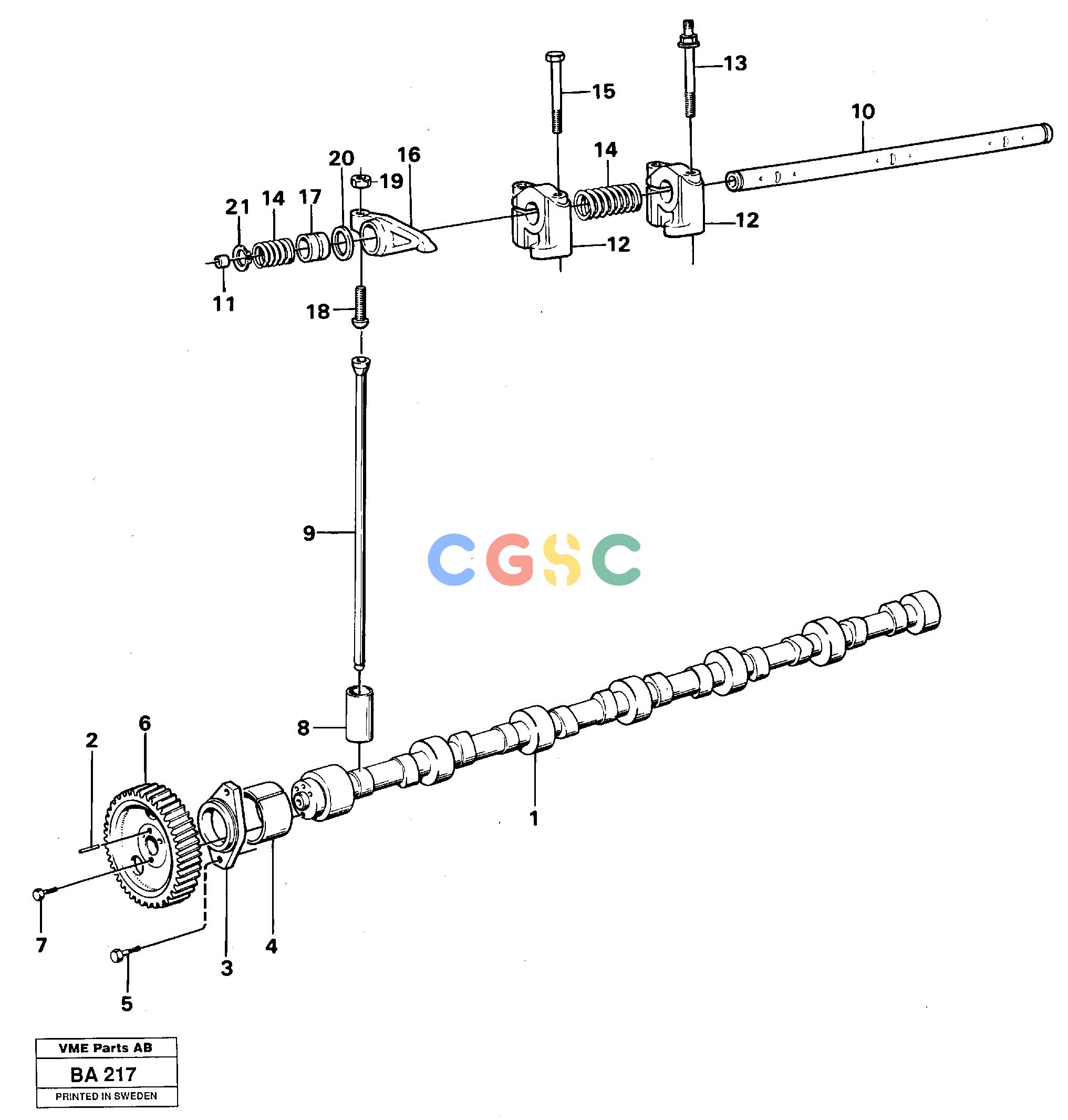

沃尔沃零件查询A20 Valve mechanismVOLVO BM A20 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
923 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE471509
|
[2] |
Screw
|
|
| 6. |
|
[1] |
Camshaft gear
|
|
| 7. |
|
[3] |
Screw
|
|
| 8. |
VOE11030953
|
[12] |
Tappet
|
|
| 9. |
VOE421385
|
[12] |
Push rod
|
ENG - 97292
|
| |
VOE8192698
|
[12] |
Push rod
|
ENG 97293 -
|
| 1. |
VOE471413
|
[1] |
Camshaft
|
ENG - 97292
|
| 10. |
VOE471518
|
[2] |
Rocker arm shaft
|
|
| |
VOE3978505
|
[1] |
Camshaft
|
ENG 97293 -
|
| 11. |
VOE946778
|
[4] |
Cap plug
|
|
| 12. |
VOE477384
|
[6] |
Bearing Bracket
|
|
| 13. |
VOE471512
|
[4] |
Screw
|
|
| 14. |
VOE421173
|
[4] |
Spring
|
|
| 15. |
VOE471513
|
[8] |
Screw
|
|
| 16. |
VOE422063
|
[12] |
Rocker arm
|
|
| 17. |
VOE422066
|
[12] |
Bushing
|
|
| 18. |
VOE422993
|
[12] |
Bolt
|
|
| 2. |
VOE950588
|
[1] |
Pin
|
|
| 19. |
VOE940175
|
[12] |
Nut
|
|
| 20. |
VOE941488
|
[4] |
Washer
|
|
| 21. |
VOE914459
|
[4] |
Snap ring
|
|
| 3. |
VOE465789
|
[1] |
Flange
|
|
| 4. |
|
[7] |
Bushing
|
|
