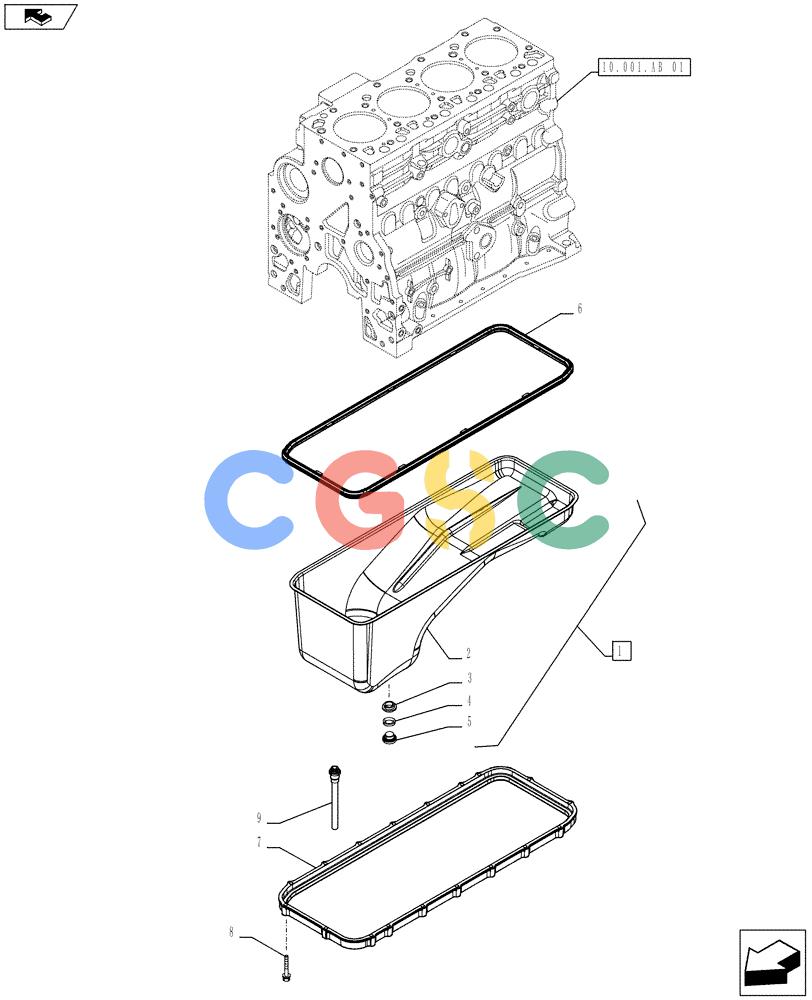

纽荷兰零件查询(F4GE9484D J619) - ENGINE - 5801584504 - YM02P00020P1 (11/12-) (10.102.AP) - ENGINE OIL PAN New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
465 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852205 | [1] | ENGINE OIL PAN | TORASSY, Incl 2 - 5 Superseded by part number: 500388253 |
| 2. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 3. | 4890331 | [1] | BUSHING | TOR |
| 4. | 2853728 | [1] | O-RING,M23.47 ID x 2.62 Thk | TOR Superseded by part number: 14457780 |
| 5. | 4894139 | [1] | PLUG,Hex Soc, M22 x 1.5 | TOR |
| 6. | 4897877 | [1] | OIL PAN GASKET SET | TOR |
| 7. | 4897876 | [1] | SPACER | TORAdapter |
| 8. | 4899091 | [14] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BAS |
| 9. | 2853363 | [1] | DRAIN | TOROil return Superseded by part number: 504040826 |
