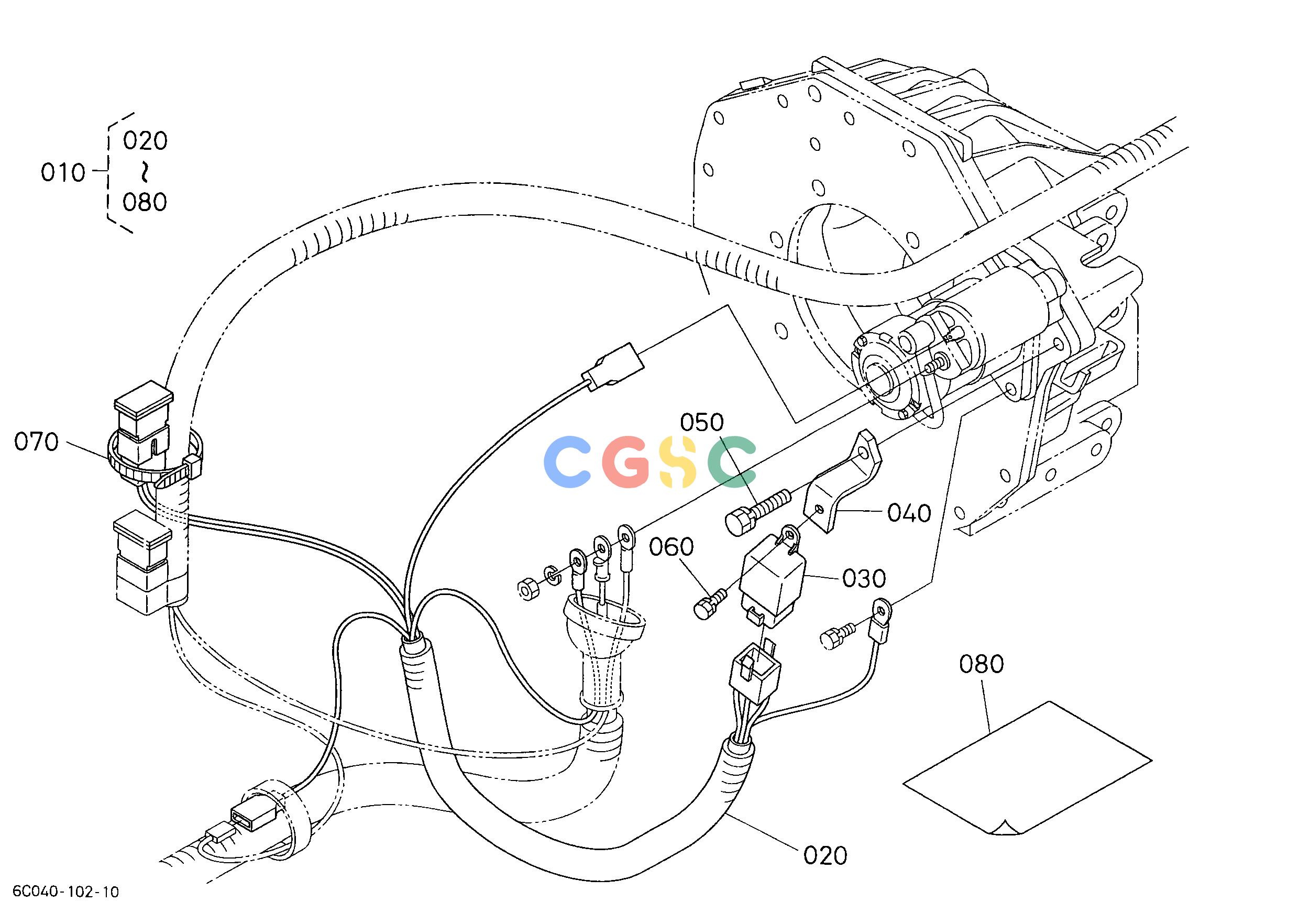

久保田零件查询U80300 STATER RELAY KIT [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
796 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04098900
|
[1] |
KIT WIRE HARNESS
|
0.3894(lbs); 0.177
|
| 020. |
6C04098920
|
[1] |
WIRE HARNESS
|
0.1320(lbs); 0.060
|
| 030. |
6888153540
|
[1] |
RELAY,COMP
|
0.0880(lbs); 0.040
|
| 040. |
6C04098930
|
[1] |
STAY STARTER RELAY
|
0.1320(lbs); 0.060
|
| 050. |
0112350835
|
[1] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 060. |
0102550616
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 070. |
5358164150
|
[1] |
BAND,CORD
|
0.0044(lbs); 0.002
|
| 080. |
99999-99999
|
[1] |
MANUAL,CONSTRUCTION
|
0.0000(lbs); 0.000
|
