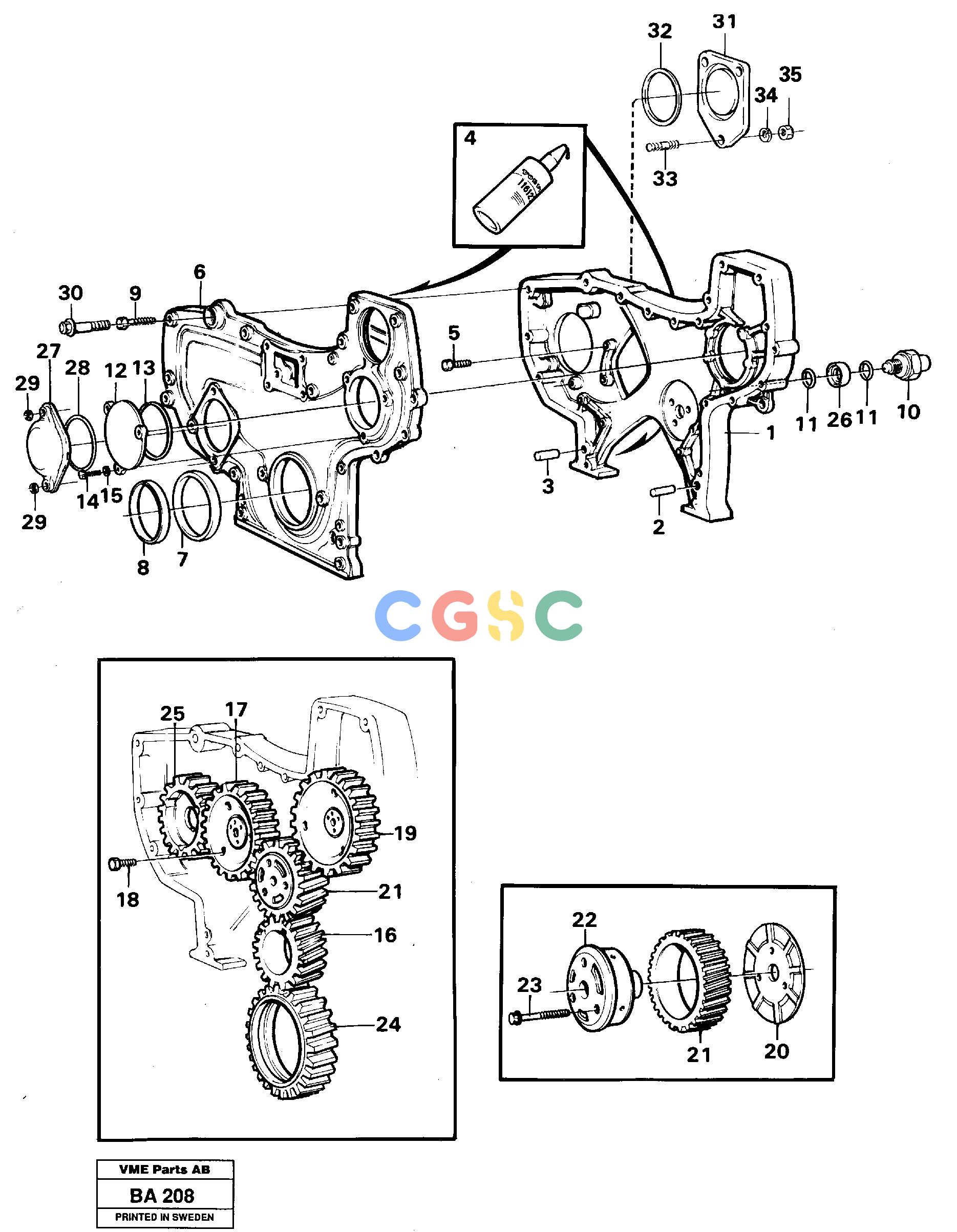

沃尔沃零件查询A20 Timing gear casing and gearsVOLVO BM A20 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
689 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE471505
|
[1] |
Timing gear casing
|
|
| 2. |
VOE13941510
|
[1] |
Pin
|
|
| 3. |
VOE13941511
|
[1] |
Pin
|
|
| 4. |
VOE1161277
|
[REQ] |
Sealant
|
|
| 5. |
VOE471534
|
[2] |
Screw
|
L=28
|
| |
VOE471535
|
[2] |
Screw
|
L=58
|
| 6. |
VOE471562
|
[1] |
Timing gear cover
|
|
| 7. |
VOE477118
|
[1] |
Sealing ring
|
|
| 8. |
|
[1] |
Felt Ring
|
Deleted part
|
| 9. |
VOE13947760
|
[7] |
Screw
|
L=40,
|
| |
VOE13948217
|
[2] |
Screw
|
L=45,
|
| |
VOE13965216
|
[1] |
Screw
|
L=55,
|
| |
VOE13965182
|
[6] |
Screw
|
L=80,
|
| |
VOE13965183
|
[1] |
Flange screw
|
L=90,
|
| 10. |
VOE1578698
|
[1] |
Tachometer sensor
|
|
| 11. |
VOE925059
|
[2] |
O-ring
|
|
| 12. |
VOE471559
|
[1] |
Cover
|
|
| 13. |
VOE925257
|
[1] |
O-ring
|
|
| 14. |
VOE13945444
|
[3] |
Screw
|
L=25,
|
| 15. |
VOE13941907
|
[3] |
Washer
|
|
| 16. |
|
[1] |
Gear
|
|
| 17. |
VOE423079
|
[1] |
Gear
|
ENG - 35286
|
| |
VOE478297
|
[1] |
Gear
|
ENG 35287 -
|
| 18. |
VOE471555
|
[3] |
Screw
|
L=50
|
| 19. |
|
[1] |
Gear
|
|
| 20. |
VOE478951
|
[1] |
Thrust washer
|
|
| 21. |
VOE8192518
|
[1] |
Idler gear
|
|
| 22. |
VOE422766
|
[1] |
Pin
|
|
| 23. |
VOE471554
|
[3] |
Screw
|
L=78
|
| 24. |
|
[1] |
Oilpump gear
|
|
| 25. |
|
[1] |
Compressor gear
|
SEE GROUP 56
|
| 26. |
VOE865808
|
[1] |
Spacer sleeve
|
|
| 27. |
VOE465735
|
[1] |
Cover
|
|
| 28. |
VOE925094
|
[1] |
O-ring
|
|
| 29. |
VOE955895
|
[2] |
Plain washer
|
|
| |
VOE479973
|
[2] |
Stud
|
|
| 30. |
VOE965225
|
[1] |
Flange screw
|
|
| 31. |
VOE420178
|
[1] |
Cover
|
|
| 32. |
VOE13975610
|
[1] |
O-ring
|
|
| 33. |
VOE967951
|
[3] |
Stud
|
|
| 34. |
VOE955899
|
[3] |
Plain washer
|
|
| 35. |
VOE13971073
|
[3] |
Hexagon nut
|
|
