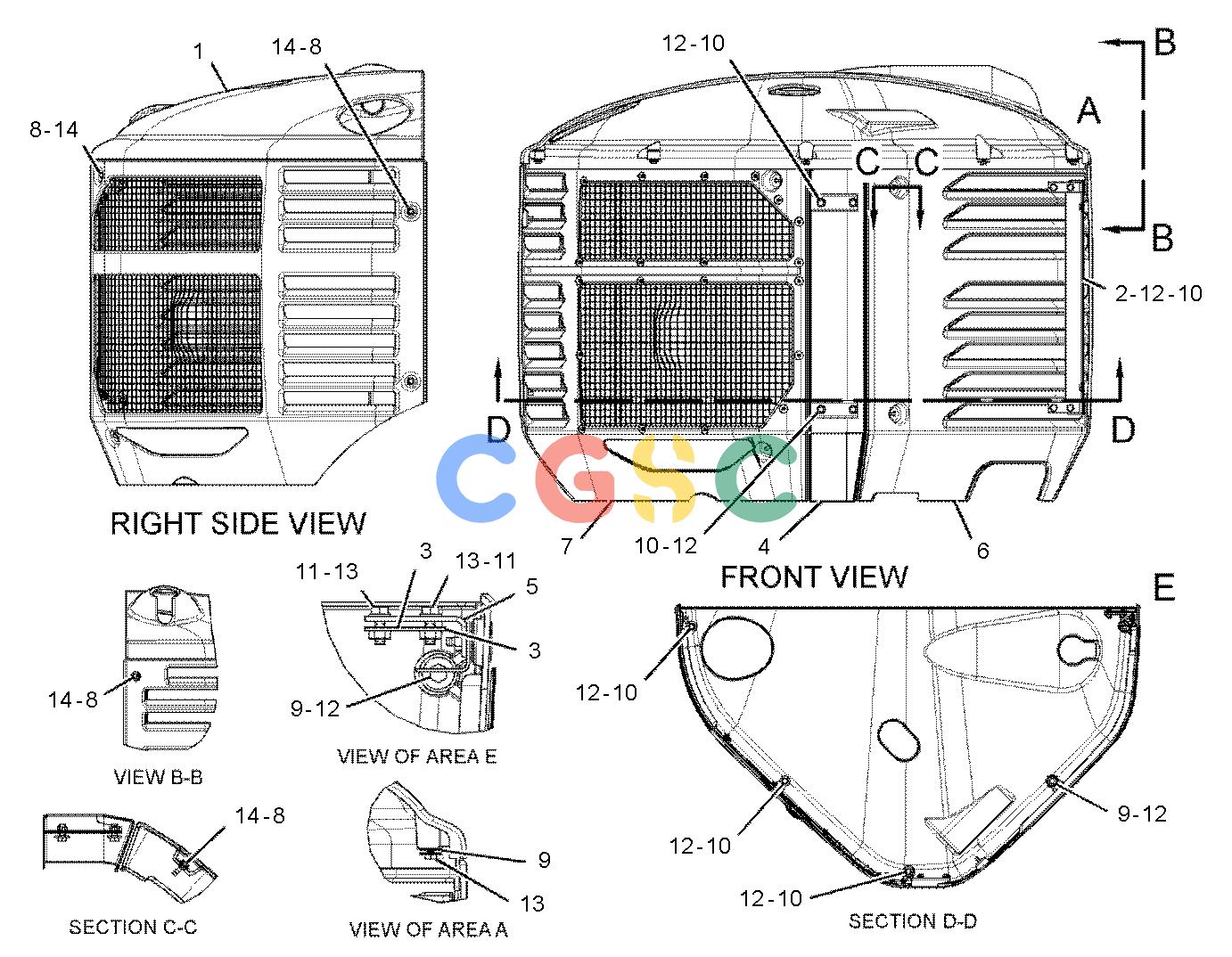

卡特零件查询（725） 238-8921: GUARD GP-RADIATOR
广数供应链运营团队, 14 02月, 2025，浏览：
603 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 176-6519 | [1] | COVER AS-TOP | |
| 2. | 187-6102 | [1] | ANGLE | |
| 3. | 206-5538 | [2] | PLATE AS | |
| 4. | 211-6496 | [1] | PLATE AS | |
| 5. | 246-5884 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 6. | 248-5219 | [1] | COVER AS(LH) | |
| 7. | 252-9395Y | [1] | GUARD GP-RADIATOR | |
| 8. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 9. | 7X-0578B | [3] | WASHER-HARD(10.2X32X2.5-MM THK) | |
| 10. | 7X-7729 | [9] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4136M | [11] | BOLT(M10X1.5X25-MM) | |
| 13. | 8T-4195BM | [5] | BOLT(M10X1.5X30-MM) | |
| 14. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
