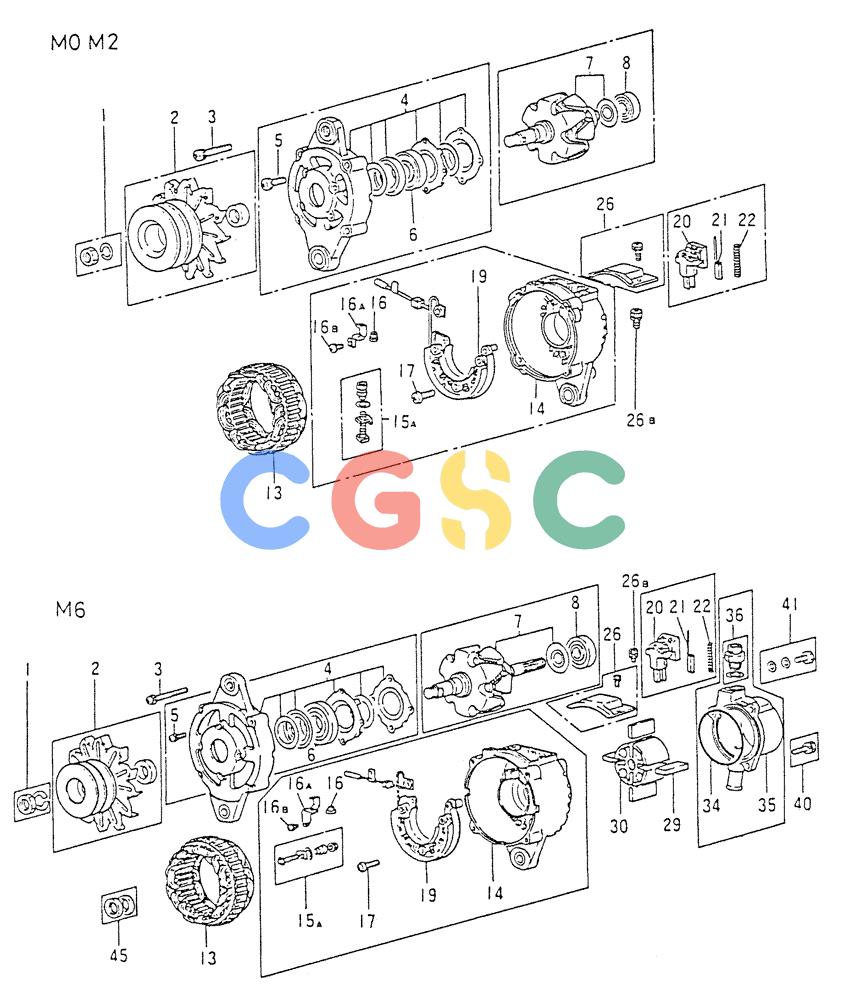

| 1-26B. | VAME067611 | [1] | ALTERNATOR | KOBALTERNATOR ASSY 24V-30A,FOR M0 ONLY |
| 1-26B. | VAME067617 | [1] | ALTERNATOR | KOB24V-40A,FOR M2 ONLY |
| 1-45. | VAME037482 | [1] | ALTERNATOR ASSY 24V-40A,FOR M6 ONLY | |
| 1-45. | VAME037641 | [1] | 24V-40A,FOR M7 ONLY | |
| 1. | VAME7P0141 | [1] | NUT SET,FOR M0,M2,M6 ONLY | |
| 1. | VAME700588 | [1] | NUT | KOBNUT SET,FOR M7 ONLY Superseded by part number: 135142A1 |
| 2. | VAME700142 | [1] | PULLEY ASSY BX2,FOR M0 ONLY | |
| 2. | VAME700156 | [1] | PULLEY ASSY BX2,FOR M2,M6 ONLY | |
| 2. | VAME700609 | [1] | PULLEY ASSY BX2,FOR M7 ONLY | |
| 3. | VAMM502365 | [1] | SCREW SET,FOR M0,M2,M6 ONLY | |
| 3. | VAME750590 | [1] | SCREW SET,FOR M7 ONLY | |
| 4-6. | VAME700534 | [1] | BRACKET | KOBBRACKET ASSY,FR,FOR M0 ONLY |
| 4-6. | VAA640T21170 | [1] | U-BRACKET | KOBBRACKET ASSY,FR,FOR M0 ONLY |
| 4-6. | VAME700536 | [1] | BRACKET ASSY,FR,FOR M2 ONLY | |
| 4-6. | VAME700157 | [1] | BRACKET ASSY,FR,FOR M2 ONLY | |
| 4-6. | VAME700648 | [1] | BKT ASSY BRACKET ASSY,FR,FOR M7 ONLY | BKT ASSY BRACKET ASSY,FR,FOR M7 ONLY |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET,FR |
| 5. | VAME700144 | [1] | SCREW SET,FOR M0,M2,M6 ONLY | |
| 5. | VAMM502367 | [1] | SCREW SCREW SET,FOR M7 ONLY | SCREW SCREW SET,FOR M7 ONLY |
| 6. | VAME700535 | [1] | BEARING | KOBBEARING#6305,FOR M0,M2 ONLY Superseded by part number: VAS930P37201, VAS930P37270 |
| 6. | VAMMST02165 | [1] | BEARING#6305,FOR M0,M2 ONLY | |
| 6. | VAMM502165 | [1] | BEARING,FOR M6 ONLY | |
| 7-8. | VAME700150 | [1] | ROTOR | KOBROTOR ASSY,FOR M0 ONLY |
| 7-8. | VAME700164 | [1] | ROTOR ASSY,FOR M2 ONLY | |
| 7-8. | VAME700158 | [1] | FOR M6 ONLY | |
| 7-8. | VAME700651 | [1] | FOR M7 ONLY | |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONROTOR |
| 6. | VAMD602352 | [1] | BEARING | KOBBEARING Superseded by part number: VAS930P33970 |
| 6. | VAME700594 | [1] | BEARING | KOBBEARING,FOR M7 ONLY |
| 11. | VAME700639 | [1] | HYD CONNECTOR | KOBCONNECTOR ASSY,FOR M7 ONLY Superseded by part number: VAA309D11271, 77269928 |
| 13. | VAME700085 | [1] | STATOR | KOBSTATOR,FOR M0 ONLY |
| 13. | VAME700159 | [1] | STATOR,FOR M2,M6 ONLY | |
| 13. | VAME700612 | [1] | STATOR | KOBSTATOR,FOR M7 ONLY |
| 14-19. | VAME700155 | [1] | BRACKET | KOBBRACKET ASSY,RE,FOR M0 ONLY |
| 14-19. | VAME700165 | [1] | BRACKET ASSY,RE,FOR M2 ONLY | |
| 14-19. | VAME700160 | [1] | BRACKET ASSY,RE,FOR M6 ONLY | |
| 14-22. | VAME700652 | [1] | BRACKET ASSY,RE,FOR M7 ONLY | |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET,RE |
| 15A. | VAME700087 | [1] | TERMINAL SET,FOR M0,M2,M6 ONLY | |
| 15A. | VAME700614 | [1] | TERMINAL SET,FOR M7 ONLY | |
| 16. | VAMD602826 | [1] | MOLD,FOR M0,M2,M6 ONLY | |
| 16A. | VAME700149 | [1] | HYD CONNECTOR | KOBCONNECTION,FOR M0 ONLY |
| 16A. | VAME700161 | [1] | CONNECTION,FOR M2,M6 ONLY | |
| 16B. | VAMD602674 | [1] | SCREW,P 5X8,FOR M0, M2,M6 ONLY | |
| 16B. | VAMD607499 | [1] | BOLT AND NUT | KOBNUT SET,FOR M7 ONLY |
| 17. | VAME700088 | [1] | SCREW SET,FOR M0, M2,M6 ONLY | |
| 19. | VAME700168 | [1] | RECTIFIER | KOBRECTIFIER ASSY,FOR M0 ONLY |
| 19. | VAME700167 | [1] | RECTIFIER ASSY | |
| 19. | VAME700650 | [1] | RECTIFIER ASSY | |
| 20-22. | VAME700091 | [1] | REGULATOR | KOBREGULATOR ASSY,FOR M0, M2,M6 ONLY Superseded by part number: VAA866T01070, 77269893 |
| 20-22. | VAME700635 | [1] | REGULATOR | KOBREGULATOR ASSY,FOR M0 ONLY Superseded by part number: VAA866T06870 |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONREGULATOR |
| 21. | VAMM502377 | [2] | BRUSH | KOBBRUSH |
| 22. | VAMM502378 | [2] | SPRING SPRING,BRUSH | SPRING SPRING,BRUSH |
| 23. | VAME700605 | [1] | BOLT SET,FOR M7 ONLY | |
| 26. | VAME700329 | [1] | U-BRACKET | KOBCOVER SET,FOR M0 ONLY |
| 26. | VAA212C11401 | [1] | COVER,FOR M0 ONLY | |
| 26. | VAME700163 | [1] | COVER,FOR M2,M6 ONLY | |
| 26. | VAME700100 | [2] | SCREW,W/WSR 5X12,FOR M0 ONLY | |
| 26B. | VAME700154 | [1] | BOLT BOIT,W/WSR 6X12 | BOLT BOIT,W/WSR 6X12 |
| 29-40. | VAME700637 | [1] | VACUUM PUMP ASSY,FOR M7 ONLY | |
| 29. | VAMM502381 | [4] | VANE,FOR M6 ONLY | |
| 29. | VAME700601 | [3] | VANE,FOR M7 ONLY | |
| 30. | VAMM502382 | [1] | ROTOR,FOR M6 ONLY | |
| 30. | VAME700600 | [1] | ROTOR,FOR M7 ONLY | |
| 32. | VAME700640 | [1] | BRACKET,VAC PUMP,FOR M7 ONLY | |
| 33. | VAMD607675 | [1] | O-RING,FOR M7 ONLY | |
| 34-36. | VAME700152 | [1] | HOUSING ASSY,FOR M6 ONLY | |
| 34-36. | VAME700638 | [1] | HOUSING ASSY ,FOR M7 ONLY | |
| 34. | VAMD602443 | [1] | O-RING,FOR M6 ONLY | |
| 34. | VAME700603 | [1] | O-RING,FOR M7 ONLY | |
| 35. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING,FOR M6,M7 ONLY |
| 36. | VAME700096 | [1] | VALVE SET,FOR M6 ONLY | |
| 36. | VAME700563 | [1] | VALVE SET,FOR M7 ONLY | |
| 40. | VAMM502228 | [1] | BOLT SET,FOR M6 ONLY | |
| 40. | VAMD607627 | [1] | BOLT SET,FOR M7 ONLY | |
| 41. | VAME700550 | [1] | JOINT SET M10X1.25,FOR M6 ONLY | |
| 45. | VAME700093 | [1] | SEAL SET,FOR M6 ONLY | |
| 45. | VAME700547 | [1] | SEAL SET,FOR M7 ONLY | |
