沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Miscellaneous EquipmentCustom Built 24VEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
291 次

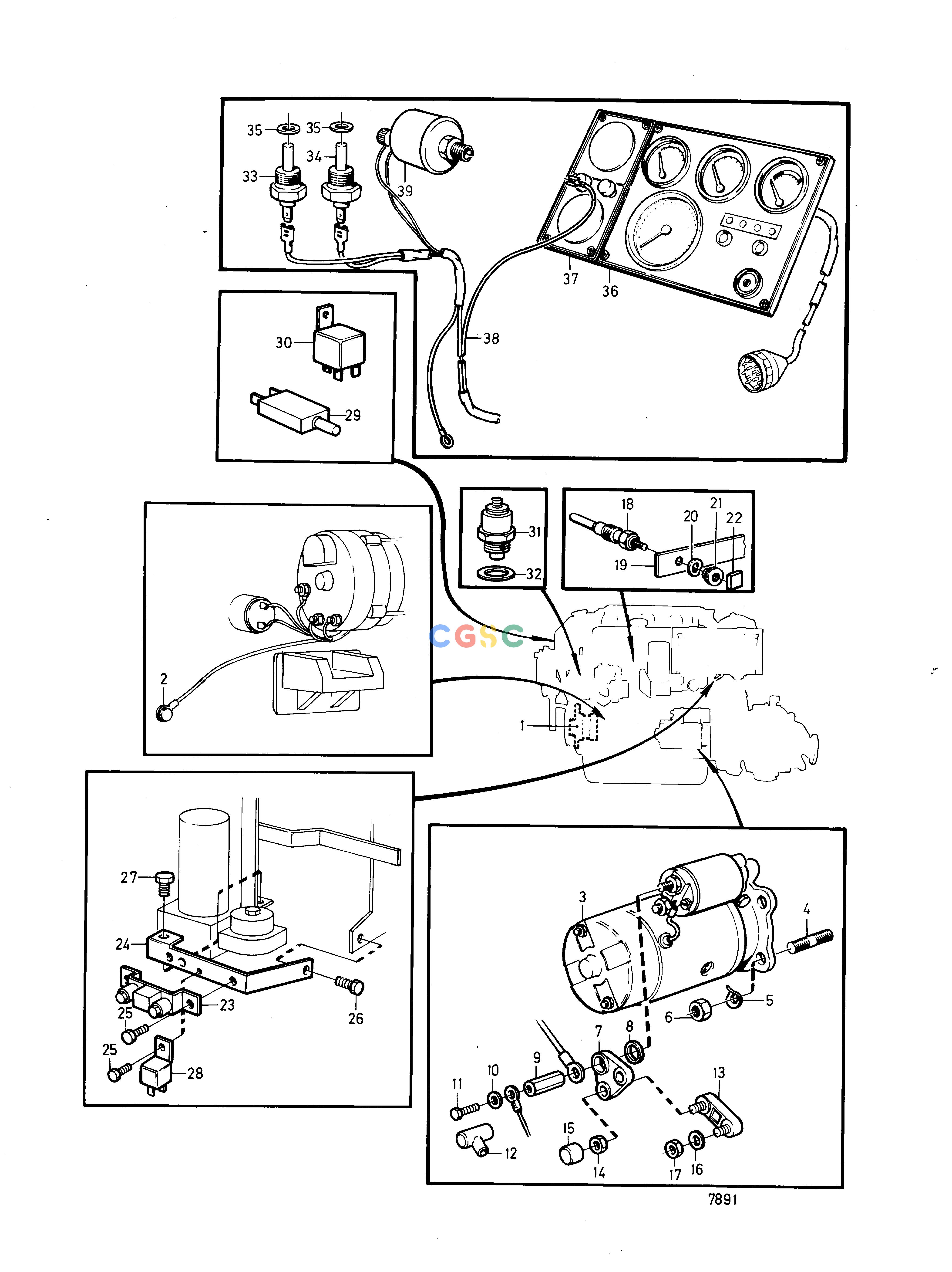

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7744050_120
|
|
alternator
|
|
| 2. |
955293
|
[1] |
Hexagon screw
|
|
| 3. |
838987
|
[1] |
Starter motor
|
|
| 3. |
|
|
|
See group 3
|
| 4. |
953067
|
[3] |
Stud
|
|
| 5. |
941908
|
[3] |
Spring washer
|
|
| 6. |
955783
|
[3] |
Hexagon nut
|
|
| 7. |
852986
|
[1] |
Current bar
|
AQ
|
| 8. |
829714
|
[1] |
Sealing ring
|
AQ
|
| 9. |
855314
|
[1] |
Spacer nut
|
AQ
|
| 10. |
941907
|
[1] |
Spring washer
|
AQ
|
| 11. |
940199
|
[1] |
Hexagon screw
|
AQ
|
| 12. |
855798
|
[1] |
Protecting sleeve
|
AQ
|
| 13. |
853502
|
[1] |
Fuse
|
AQ
|
| 14. |
853573
|
[1] |
Hexagon nut
|
AQ
|
| 15. |
853572
|
[1] |
Protective cap
|
AQ
|
| 16. |
941906
|
[1] |
Spring washer
|
AQ
|
| 17. |
955781
|
[1] |
Hexagon nut
|
AQ
|
| 18. |
838954
|
[6] |
Glow plug
|
|
| 19. |
1542296
|
[1] |
Rail
|
|
| 20. |
941905
|
[6] |
Spring washer
|
|
| 21. |
955780
|
[6] |
Hexagon nut
|
|
| 22. |
1542408
|
[6] |
Protecting casing
|
|
| 23. |
838953
|
[1] |
Series resistance
|
|
| 24. |
858078
|
[1] |
Bracket
|
|
| 25. |
955268
|
[3] |
Hexagon screw
|
|
| 26. |
955318
|
[1] |
Hexagon screw
|
|
| 27. |
955296
|
[1] |
Hexagon screw
|
|
| 28. |
838955
|
[1] |
Relay
|
|
| 29. |
966689
|
[1] |
Fuse
|
|
| 30. |
838955
|
[2] |
Relay
|
|
| 31. |
858058
|
[1] |
Stop solenoid
|
|
| 32. |
243572
|
[1] |
O-ring
|
|
| 33. |
843325
|
[1] |
Temperature sensor
|
|
| 34. |
822858
|
[1] |
Thermo monitor
|
|
| 35. |
957181
|
[2] |
Gasket
|
|
| 36. |
858036
|
[1] |
Instrument panel
|
See group 3
|
| 37. |
843604
|
[1] |
Instrument panel
|
|
| 38. |
858057
|
[1] |
Cable block
|
|
| 39. |
|
|
|
See group 3
|
