沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Miscellaneous EquipmentExpansion Tank KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
811 次

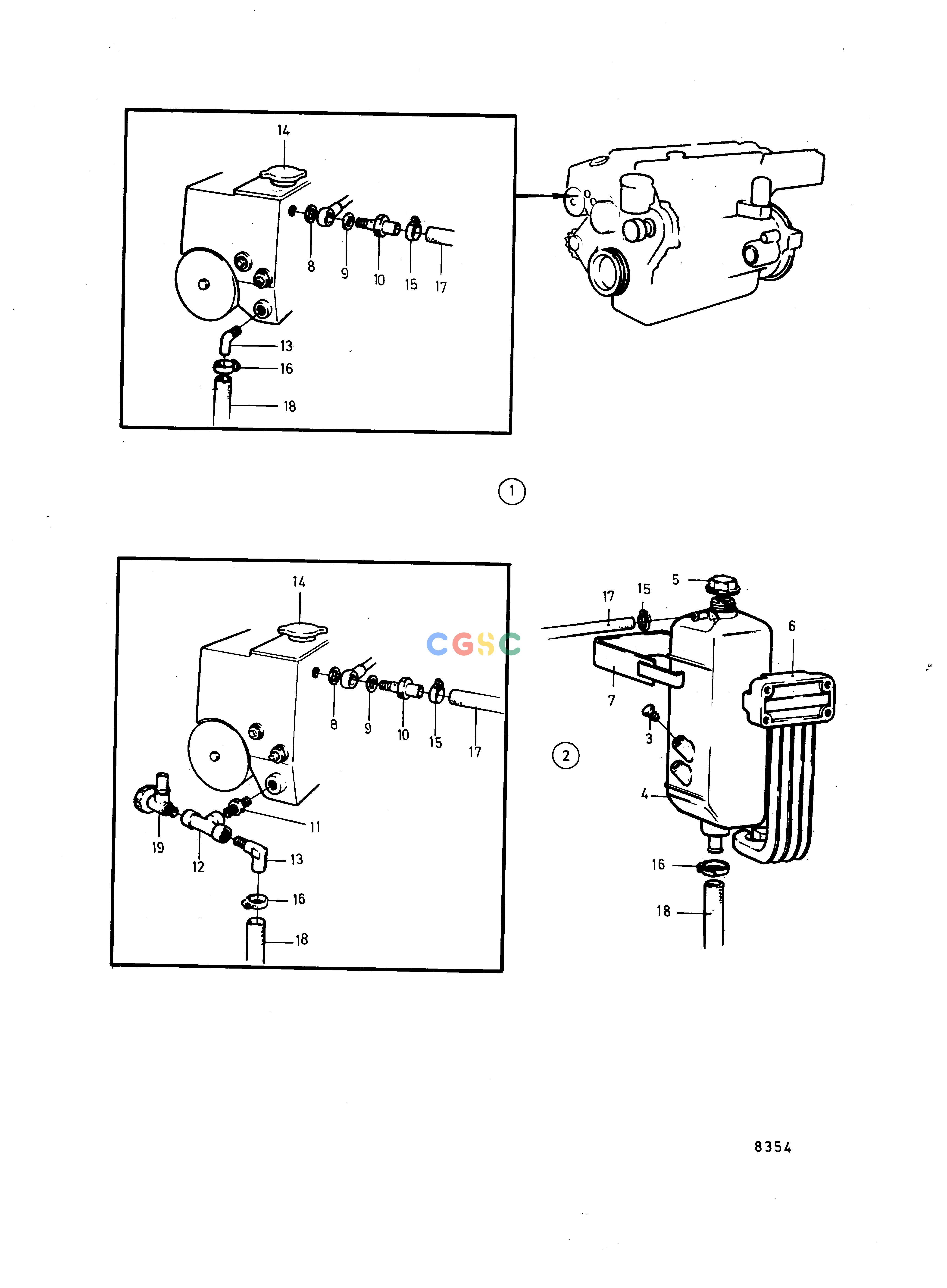

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838329
|
[1] |
Expansion tank kit
|
|
| 2. |
846172
|
[1] |
Expansion tank
|
|
| 3. |
836268
|
[2] |
Plug
|
|
| 4. |
843759
|
[1] |
Expansion tank
|
|
| 5. |
844624
|
[1] |
Pressure cap
|
|
| 6. |
843260
|
[1] |
Bracket
|
|
| 7. |
843266
|
[1] |
Clamp
|
|
| 8. |
907132
|
[1] |
Gasket
|
|
| 9. |
947282
|
[1] |
Gasket
|
|
| 10. |
838437
|
[1] |
Hose coupling
|
|
| 11. |
943089
|
[1] |
Nipple
|
When hot water outlet is mounted.
|
| 12. |
838434
|
[1] |
T-pipe
|
When hot water outlet is mounted
|
| 13. |
961607
|
[1] |
Hose nipple
|
|
| 14. |
845587
|
[1] |
Filler cap
|
|
| 15. |
961663
|
[2] |
Hose clamp
|
|
| 16. |
961665
|
[2] |
Hose clamp
|
|
| 17. |
943366
|
[1] |
Rubber hose
|
|
| 18. |
952969
|
[1] |
Hose
|
|
| 19. |
|
|
|
When hot water outlet is mounted.
|
