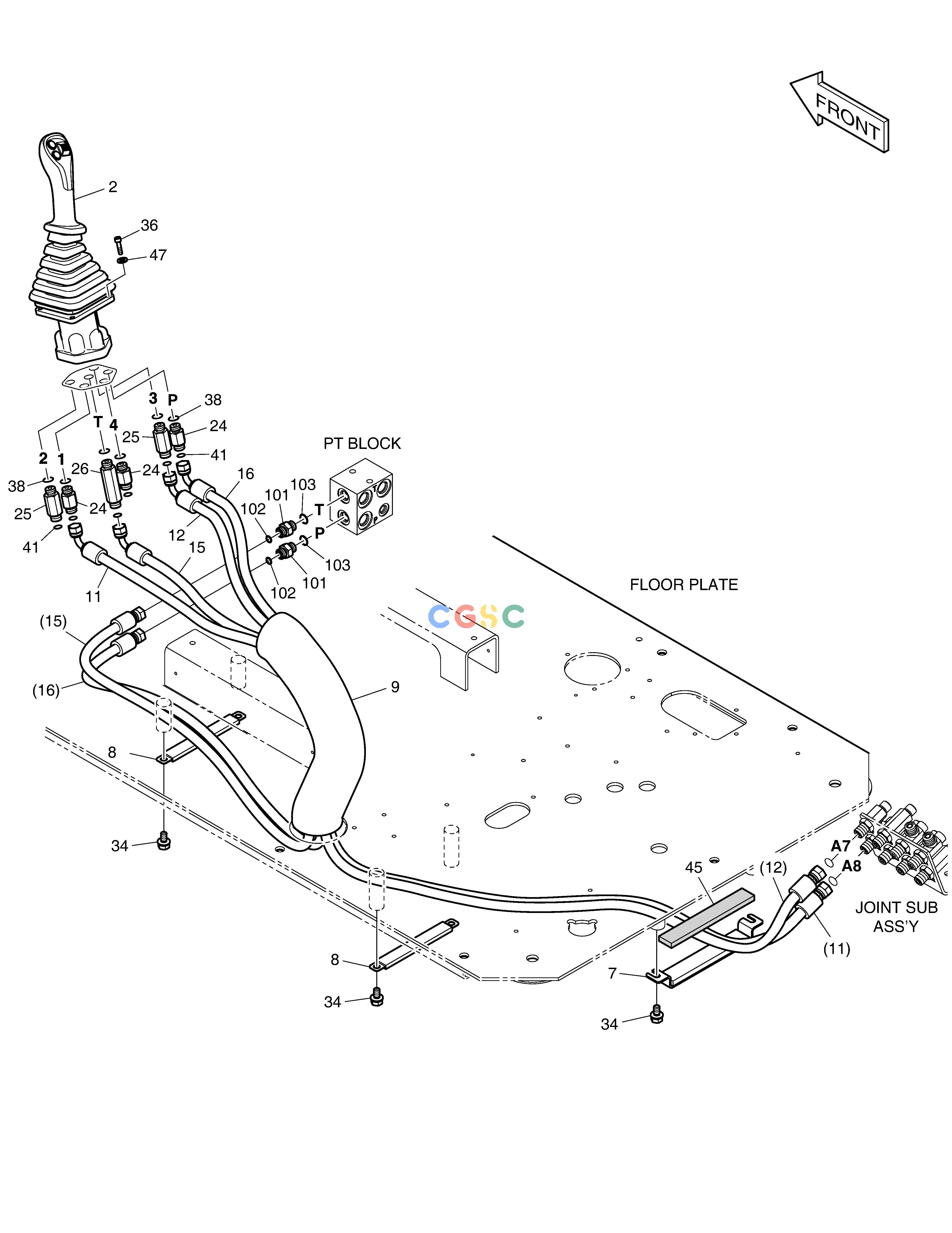

斗山零件查询PILOT PIPING(6) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
918 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05743C
|
[-] |
|
|
| 101. |
DS2232038
|
[2] |
ADAPTER
|
|
| 102. |
S8030061
|
[2] |
O-RING
|
|
| 103. |
S8000141
|
[2] |
O-RING
|
|
| 11. |
DS2113072
|
[1] |
|
|
| 12. |
DS2113072
|
[1] |
|
|
| 15. |
DS2113025
|
[1] |
|
|
| 16. |
DS2113059
|
[1] |
|
|
| 2. |
410113-00006C
|
[1] |
|
|
| 24. |
2181-4133D24
|
[3] |
ADAPTER
|
|
| 25. |
DS2232085
|
[2] |
ADAPTER
|
|
| 26. |
DS2232169
|
[1] |
|
|
| 34. |
DS0025042
|
[6] |
BOLT
|
|
| 36. |
S2205066
|
[4] |
BOLT
|
|
| 38. |
S8000141
|
[6] |
O-RING
|
|
| 41. |
S8030061
|
[6] |
O-RING
|
|
| 45. |
180102-00547
|
[1] |
|
|
| 47. |
S5010313
|
[4] |
WASHER
|
|
| 7. |
120202-00140
|
[1] |
|
|
| 8. |
120202-00009
|
[2] |
|
|
| 9. |
K1003945
|
[1] |
PROTECTOR
|
|
