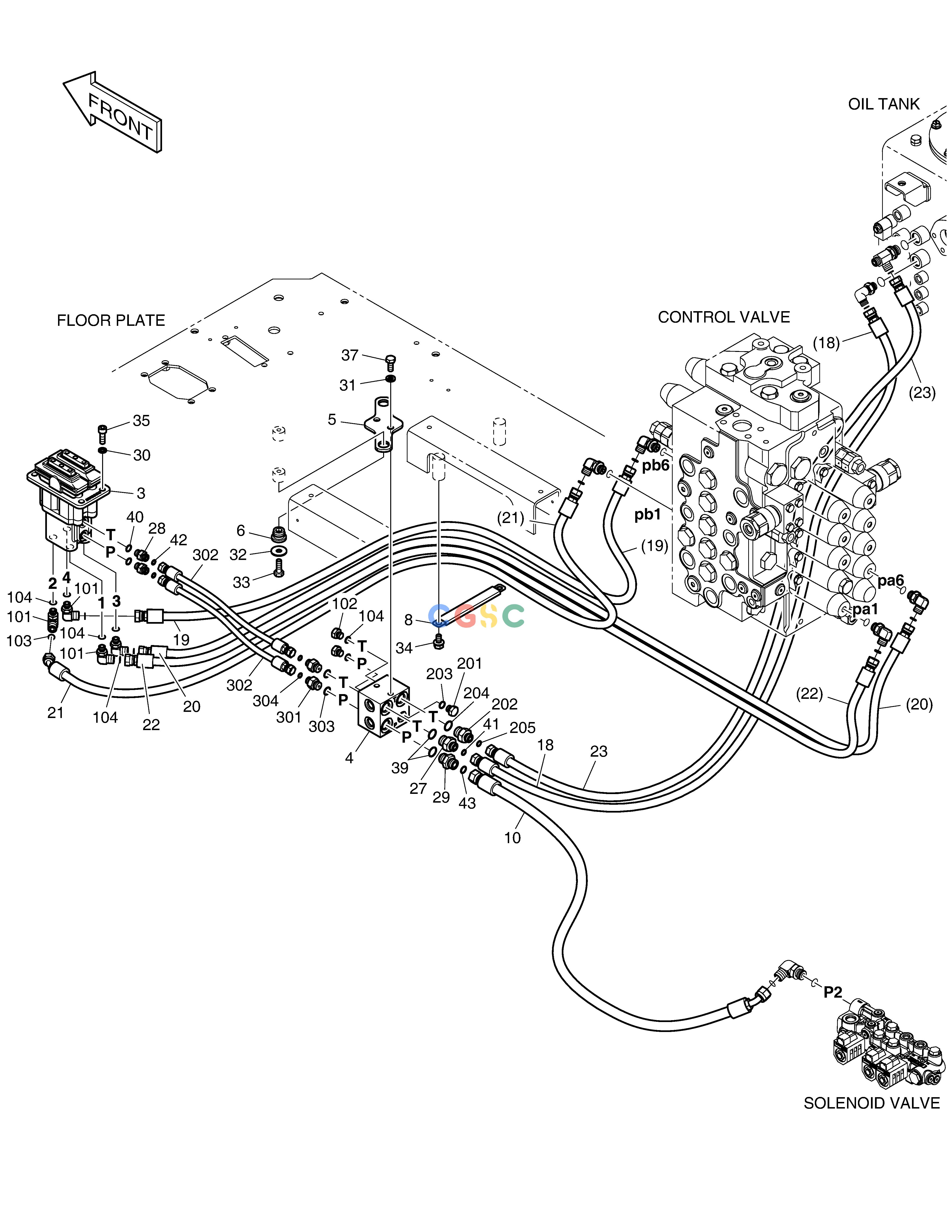

斗山零件查询PILOT PIPING(8) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
857 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05743C
|
[-] |
|
|
| 10. |
DS2012874
|
[1] |
|
|
| 101. |
2181-2815D5
|
[4] |
ELBOW
|
|
| 102. |
2181-1950D1
|
[2] |
PLUG
|
|
| 103. |
S8030061
|
[4] |
O-RING
|
|
| 104. |
S8000111
|
[6] |
O-RING
|
|
| 18. |
DS2119117
|
[1] |
|
|
| 19. |
DS2119118
|
[1] |
|
|
| 20. |
DS2119186
|
[1] |
|
|
| 201. |
2181-1950D1
|
[1] |
PLUG
|
|
| 202. |
2181-4133D39
|
[1] |
ADAPTER
|
|
| 203. |
S8000111
|
[1] |
O-RING
|
|
| 204. |
S8000181
|
[1] |
O-RING
|
|
| 205. |
S8030061
|
[1] |
O-RING
|
|
| 21. |
DS2120100
|
[1] |
|
|
| 22. |
DS2119184
|
[1] |
|
|
| 23. |
DS2119121
|
[1] |
|
|
| 27. |
2181-4133D39
|
[1] |
ADAPTER
|
|
| 28. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 29. |
430201-00108
|
[1] |
|
|
| 3. |
410119-00003
|
[1] |
|
|
| 30. |
S5110603
|
[4] |
WASHER
|
|
| 301. |
2181-4133D41
|
[2] |
ADAPTER
|
|
| 302. |
DS2119001
|
[2] |
|
|
| 303. |
S8000141
|
[2] |
O-RING
|
|
| 304. |
S8030041
|
[2] |
O-RING
|
|
| 31. |
S5102603
|
[2] |
. WASHER
|
|
| 32. |
2114-1058D10
|
[2] |
WASHER
|
|
| 33. |
S0512266
|
[2] |
BOLT
|
|
| 34. |
DS0025042
|
[2] |
BOLT
|
|
| 35. |
S2212266
|
[4] |
BOLT
|
|
| 37. |
S0511866
|
[2] |
BOLT
|
|
| 39. |
S8000181
|
[2] |
O-RING
|
|
| 4. |
100201-00284
|
[1] |
|
|
| 40. |
S8000111
|
[2] |
O-RING
|
|
| 41. |
S8030061
|
[1] |
O-RING
|
|
| 42. |
S8030041
|
[2] |
O-RING
|
|
| 43. |
S8030081
|
[1] |
O-RING
|
|
| 5. |
250105-00321A
|
[1] |
|
|
| 6. |
198-00016
|
[2] |
RUBBER
|
|
| 8. |
120202-00009
|
[1] |
|
|
