卡特零件查询（725） 255-5095: PUMP GP-GEAR
广数供应链运营团队, 14 02月, 2025，浏览：
495 次

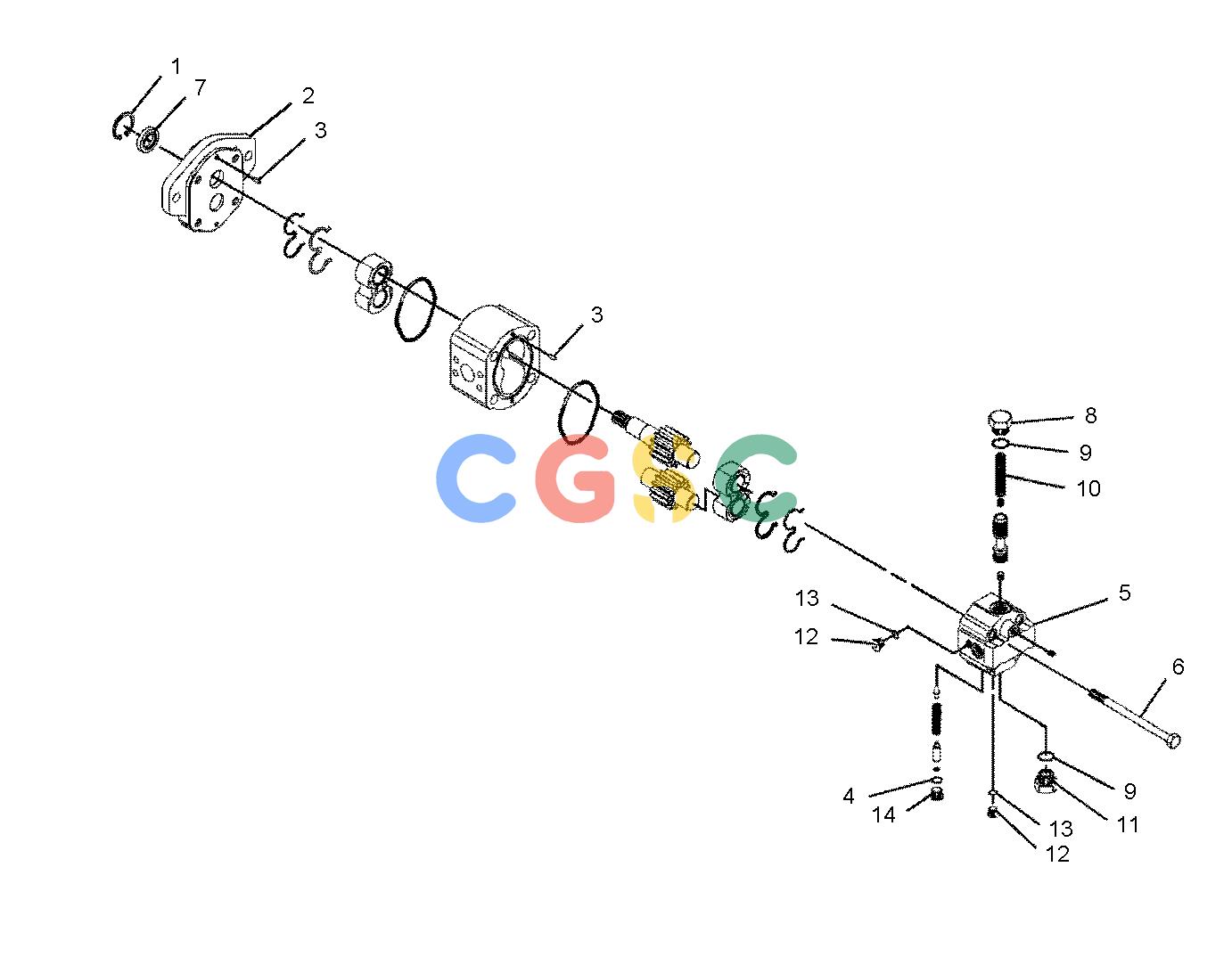

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8J-6273 | [1] | RING-RETAINING | |
| 2. | 145-6899 | [1] | FLANGE | |
| 3. | 099-3095 | [4] | DOWEL | |
| 4. | 3J-1907 | [1] | SEAL-O-RING | |
| 5. | 145-6902 | [1] | KIT-PUMP CONTROL(PRESSURE COMPENSATOR VALVE) | |
| | 2M-9780 | [2] | SEAL-O-RING | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 3J-7354 | [2] | SEAL-O-RING | |
| 6. | 8C-2926M | [4] | BOLT(M10X1.5X140-MM) | |
| 7. | 135-5935 | [1] | SEAL-SHAFT | |
| 8. | 177-0078 | [1] | PLUG | |
| 9. | 2M-9780 | [2] | SEAL-O-RING | |
| 10. | 177-0082 | [1] | SPRING | |
| 11. | 9S-4190 | [1] | PLUG-O-RING(7/8-14-THD) | |
| 12. | 9S-4182 | [2] | PLUG(7/16-20-THD) | |
| 13. | 3J-7354 | [2] | SEAL-O-RING | |
| 14. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 200-4305 | [1] | KIT-SEAL | |
| | | | (INCLUDES SHAFT SEAL, O-RINGS, E-RINGS & BACK-UP RINGS) |
| | M | | METRIC PART |
